Component Operation Table: O/D Off System
Component Operation Table: O/D Off System
WARNING:
This page is about a different variant/trim than selected.

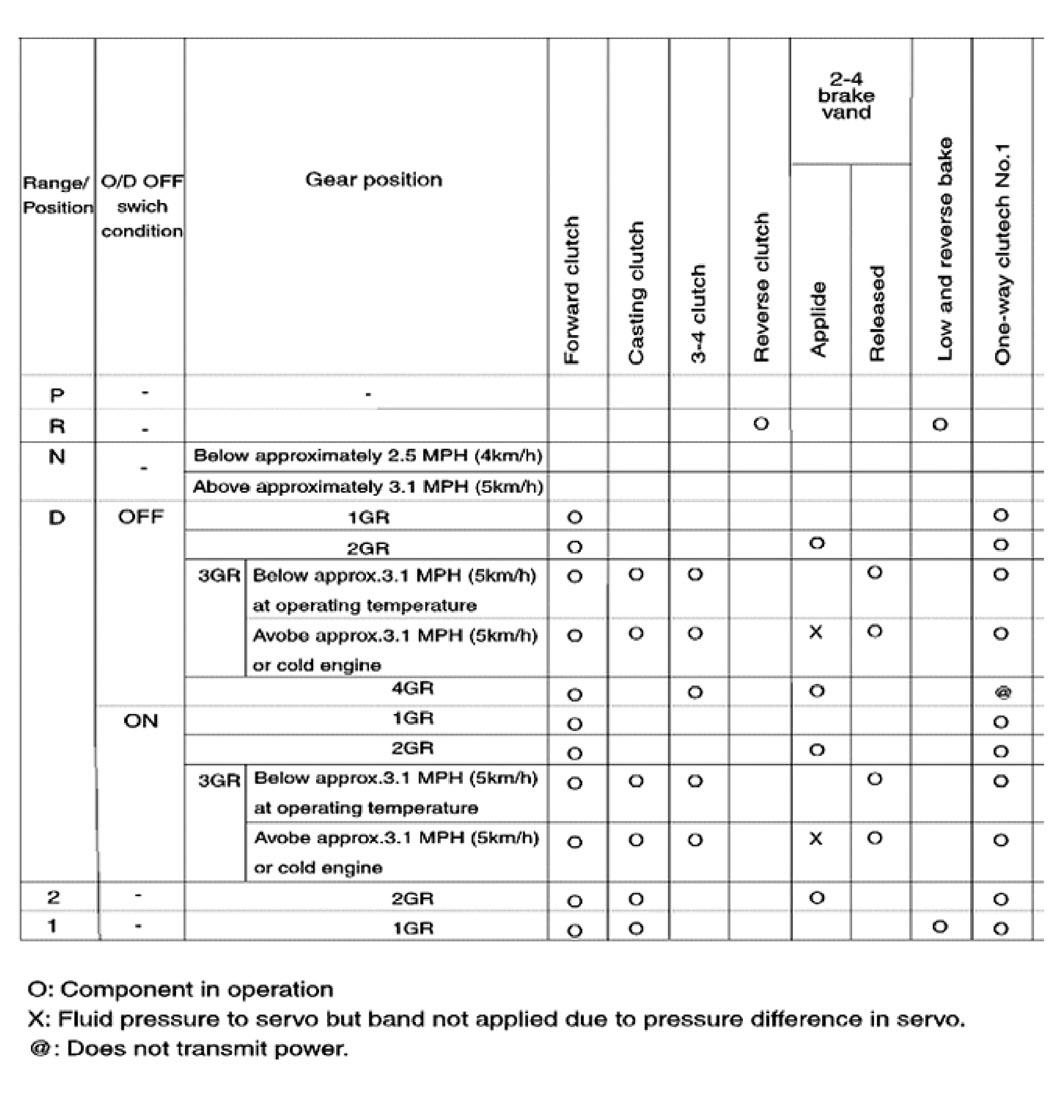

Fig 1: Component Operation Table: O/D Off System
Courtesy of KIA MOTORS AMERICA, INC.
