Section 1 (Overhaul & Diagnosis)
>>
Automatic Transaxle System
>>
Automatic Transaxle
>>
Notes
Automatic Transaxle: Notes
WARNING:
This page is about a different variant/trim than selected.

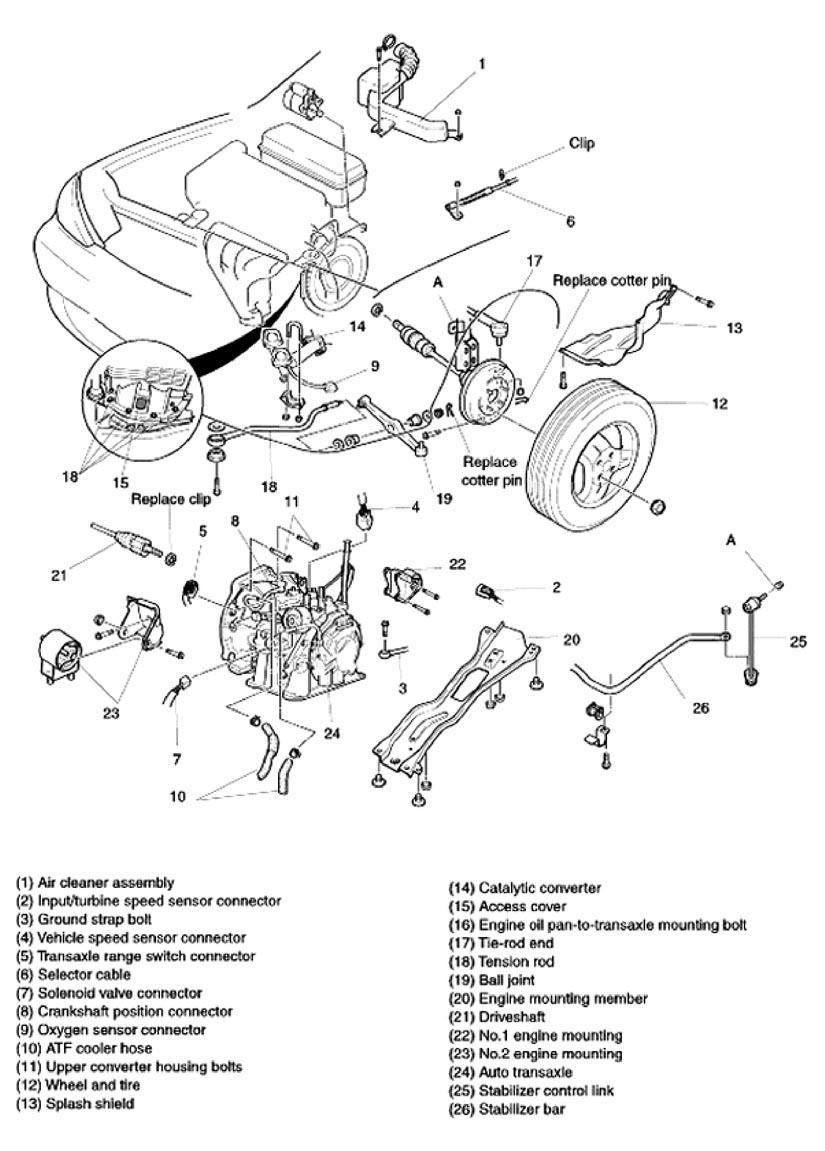

Fig 1: Removing & Installing Transaxle Assembly
Courtesy of KIA MOTORS AMERICA, INC.
