Disassembly, Inspection And Assembly Procedures: Components

WARNING: This page is about a different variant/trim than selected.

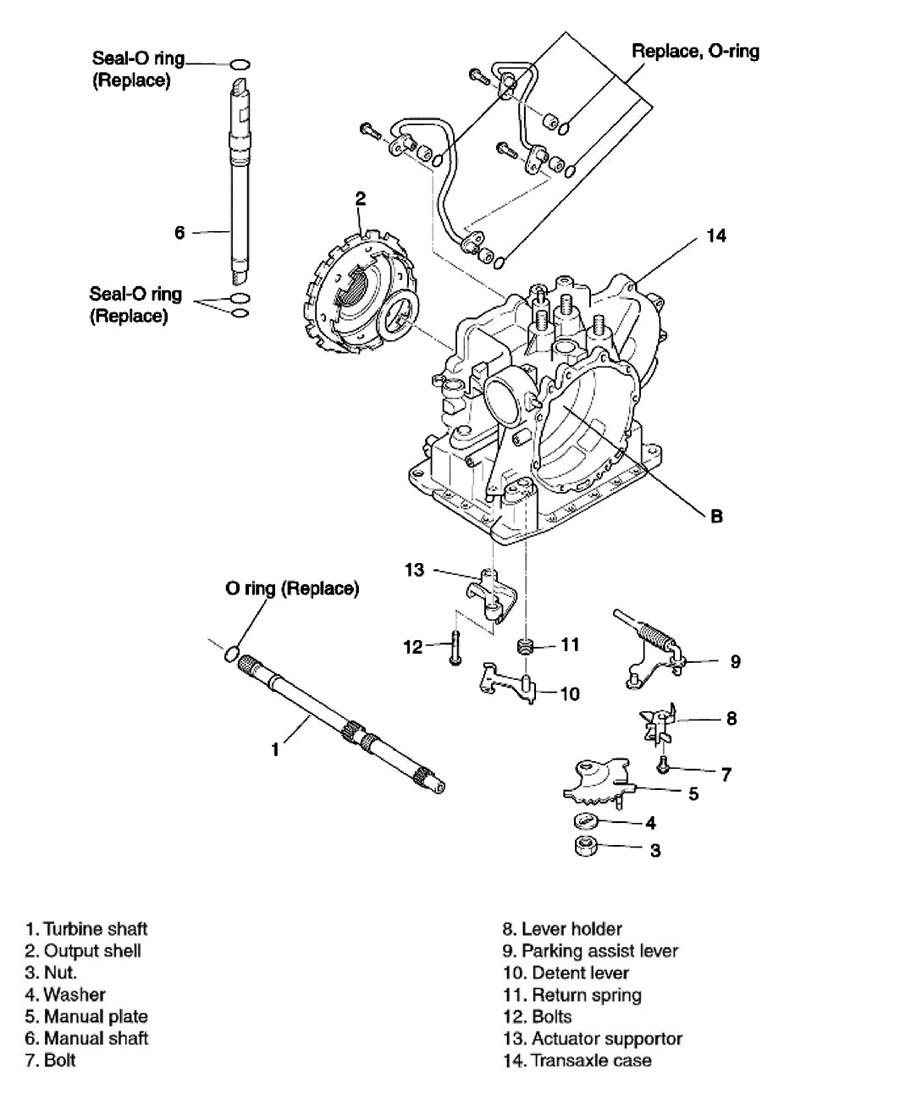

Fig 1: Identifying Automatic Transaxle Components (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

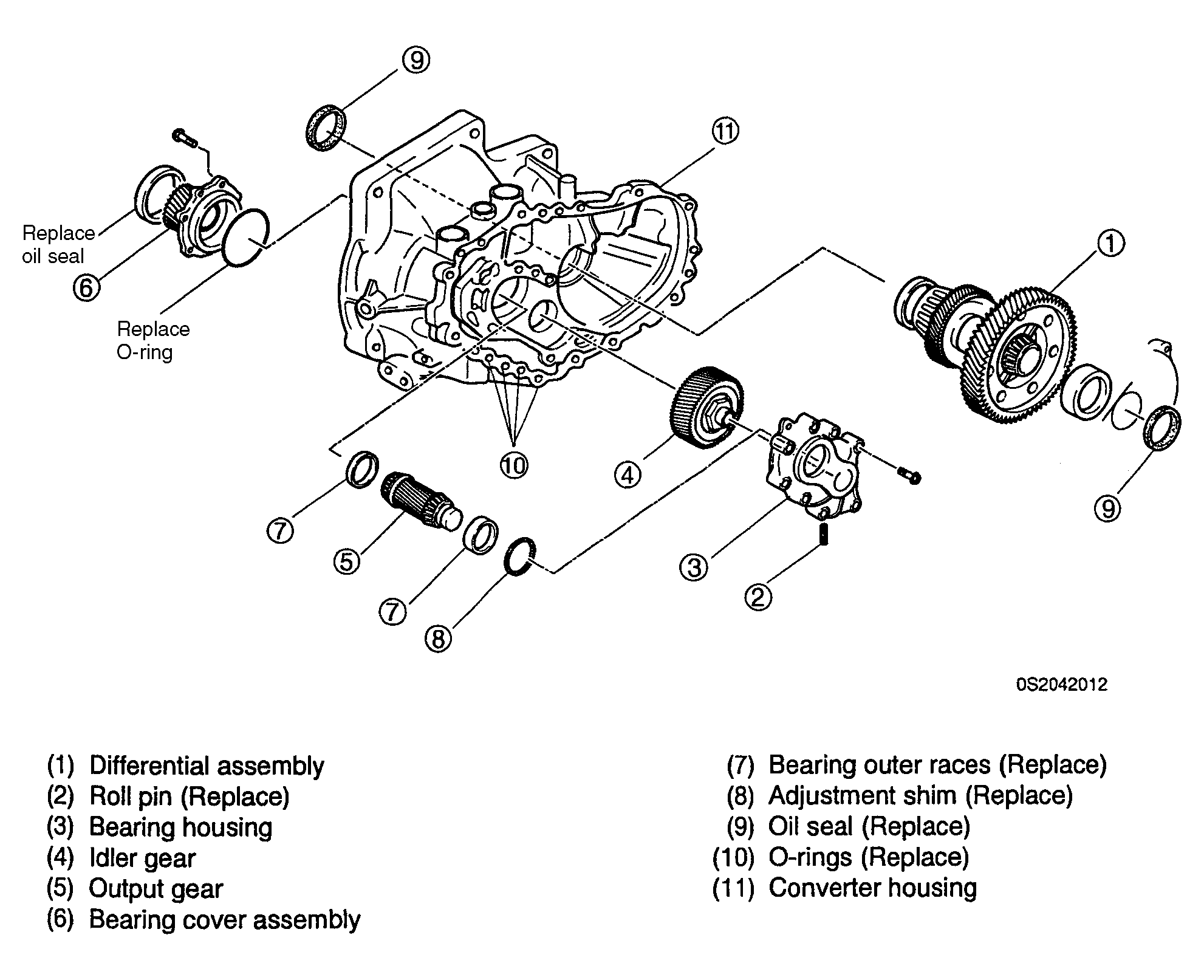

Fig 2: Identifying Automatic Transaxle Components (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

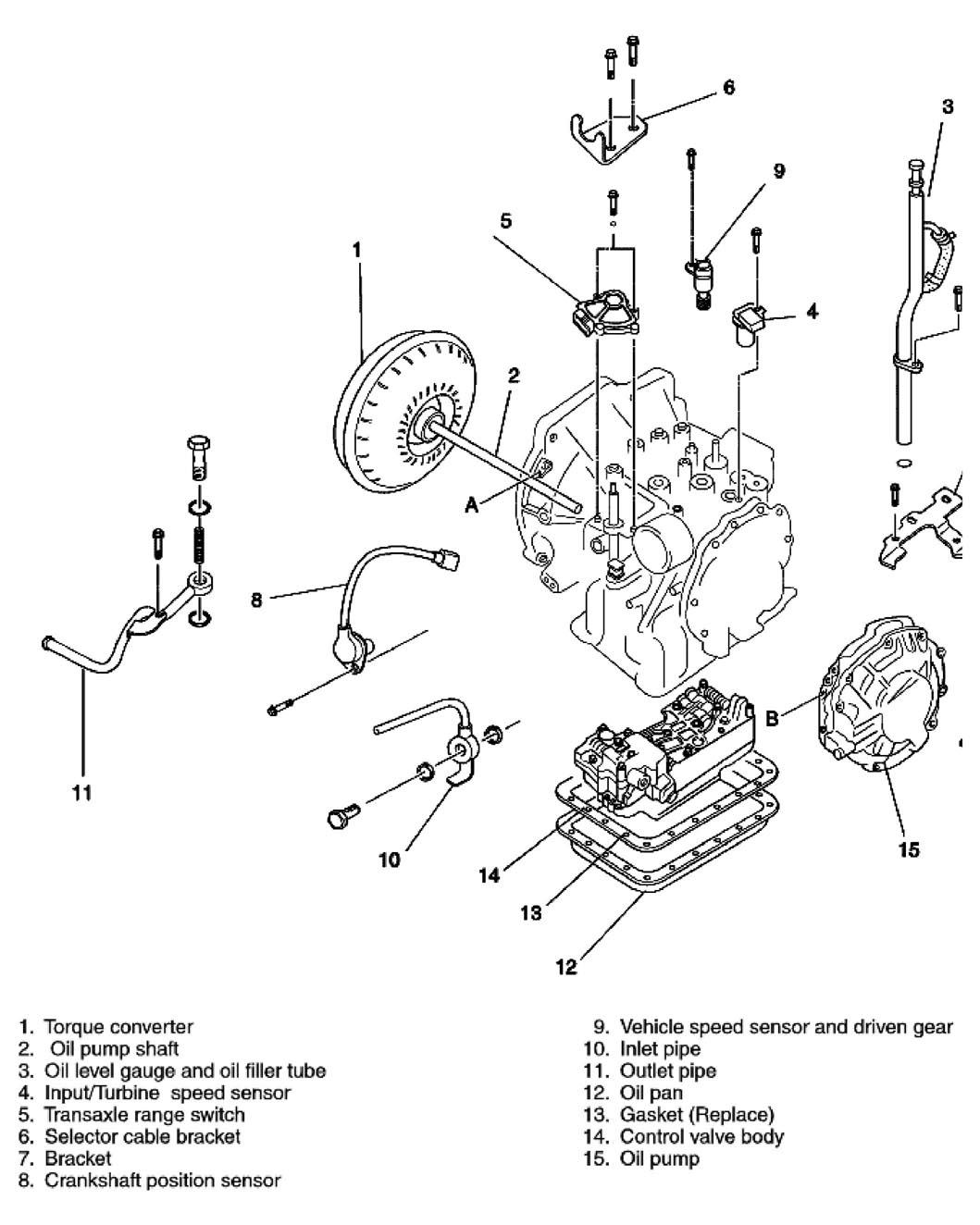

Fig 3: Identifying Automatic Transaxle Components (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

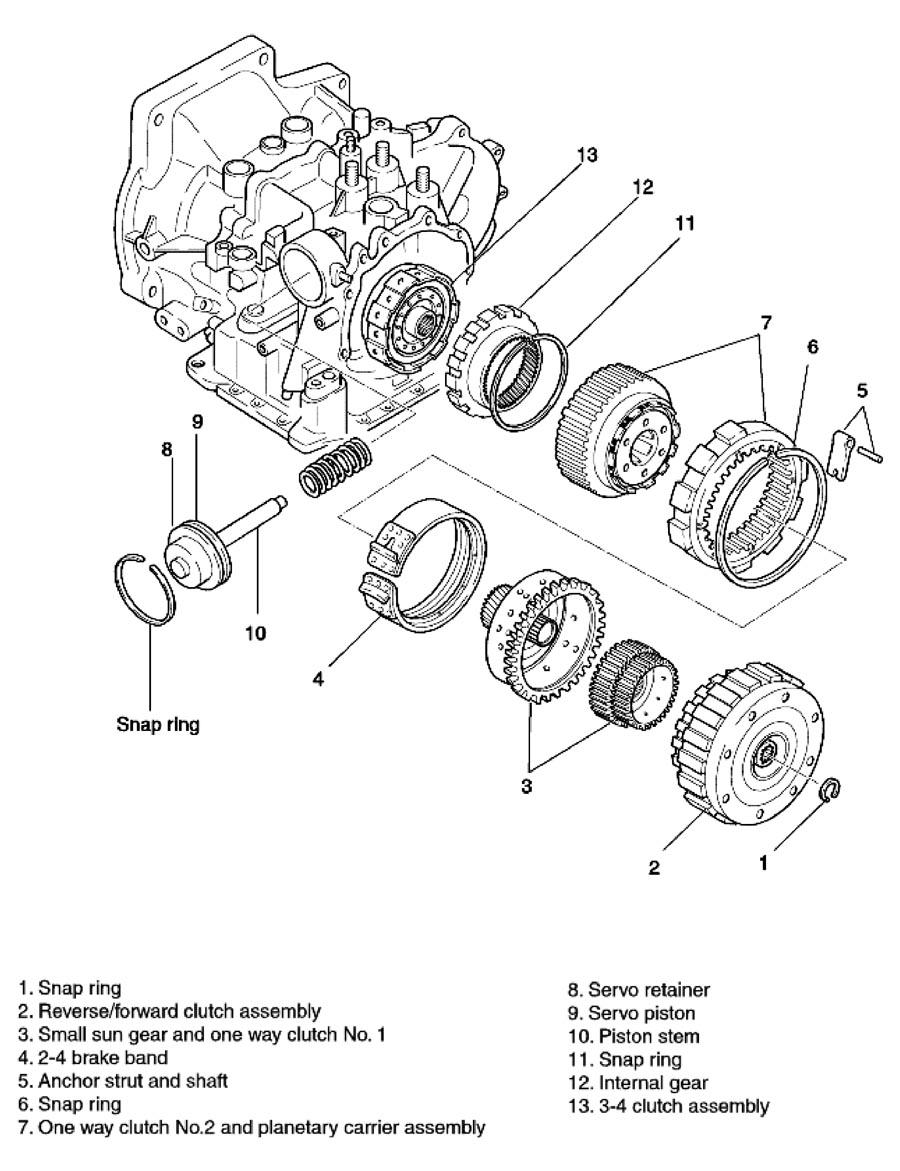

Fig 4: Identifying Automatic Transaxle Components (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.
