ATF Changer Using Process

WARNING: This page is about a different variant/trim than selected.
  1. Fill ATF changer with specified ATF.
  2. Disconnect ATF inlet and outlet hose from radiator.

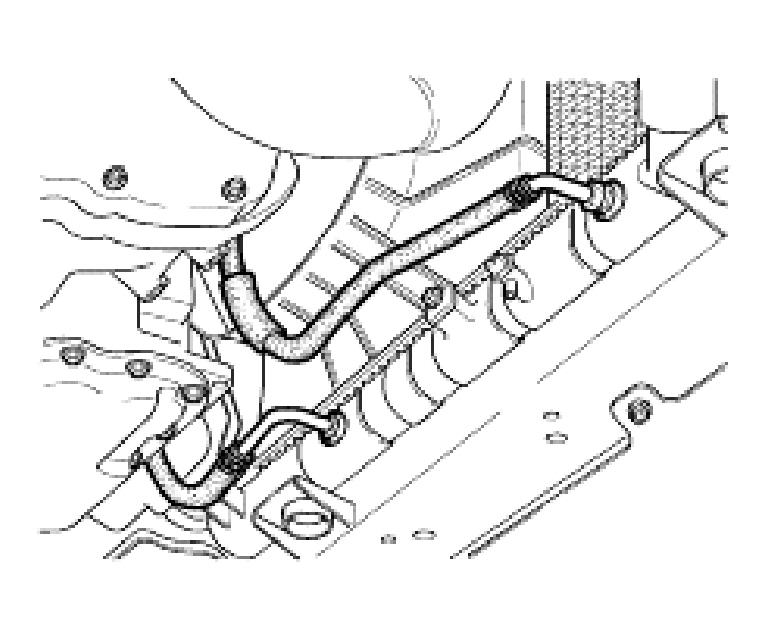

    Fig 1: Disconnecting ATF Inlet And Outlet Hose From Radiator
    G04086066Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect ATF inlet and outlet hose to ATF changer.

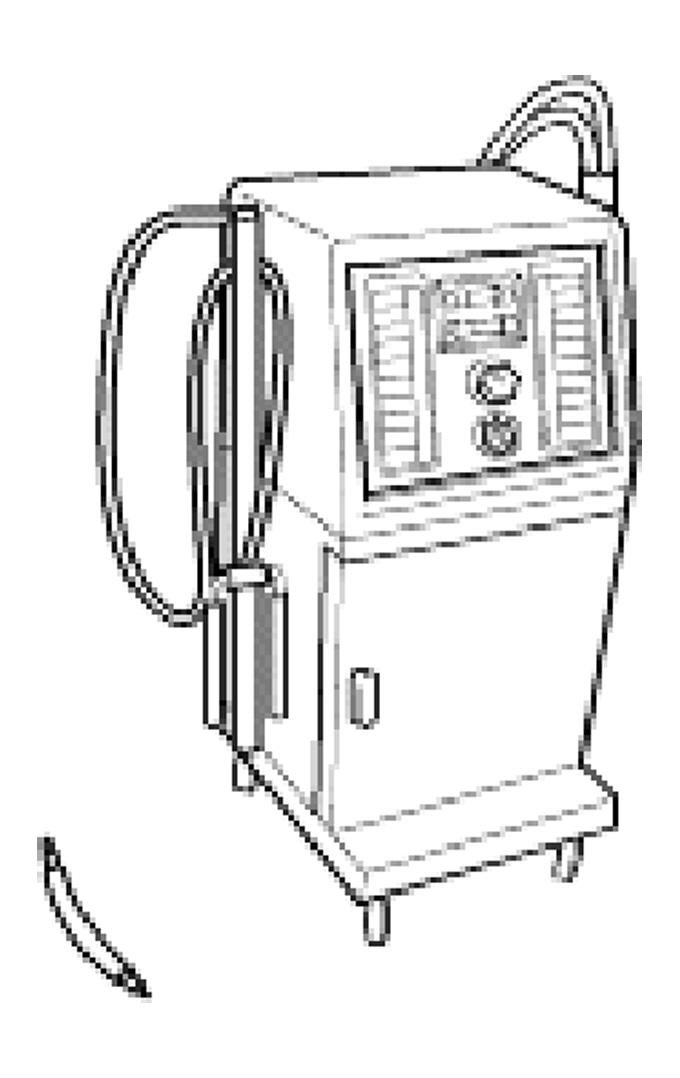

    Fig 2: Identifying ATF Changer
    G04086067Courtesy of KIA MOTORS AMERICA, INC.
  4. Start engine.
  5. While engine is idling, replace ATF.

    (Refer to ATF changer instruction manual).

  6. Check ATF level. (Refer to ATF  )
