Selector Lever: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. Install selector lever then tighten selector lever base plate nuts.

    Tightening torque: 11.5~16.6 lb. ft. (15.7~22.6 N.m, 1.6~2.3 kg.m)

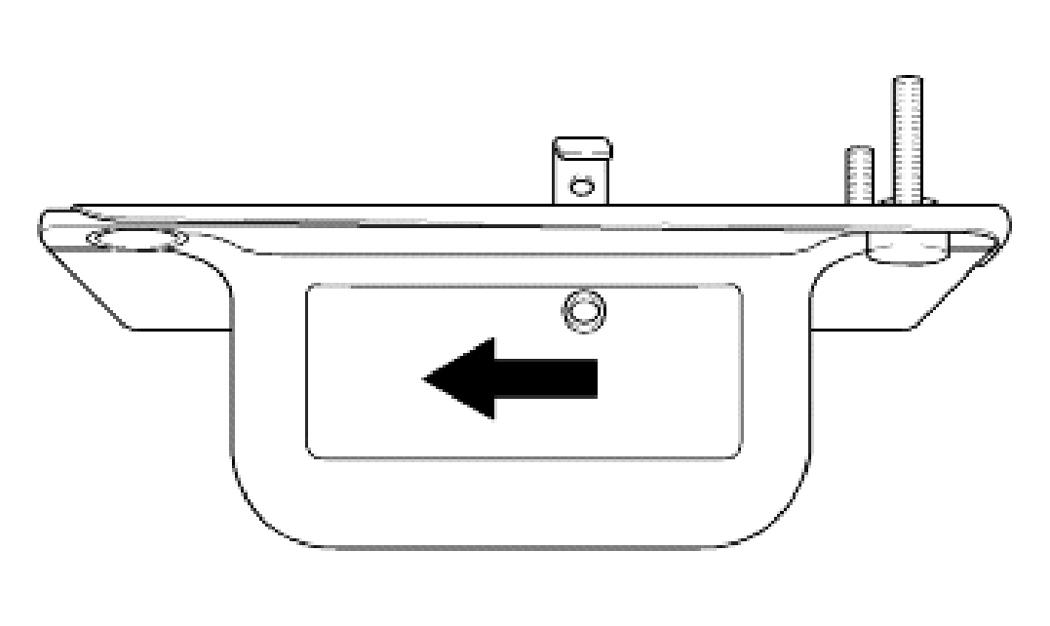

    NOTE: Install the set plate with the arrow headed to the front as shown in the figure.
    Fig 1: Installing Set Plate With Arrow Headed To Front
    G04086314Courtesy of KIA MOTORS AMERICA, INC.
  2. Install the console bracket.
  3. Connect the O/D OFF connector.
  4. Shift selector lever to P range.
  5. Tighten selector lever base plate nut.

    Tightening torque: 60~86 lb. ft. (6.8~9.8 N.m, 70~100 kg.cm)

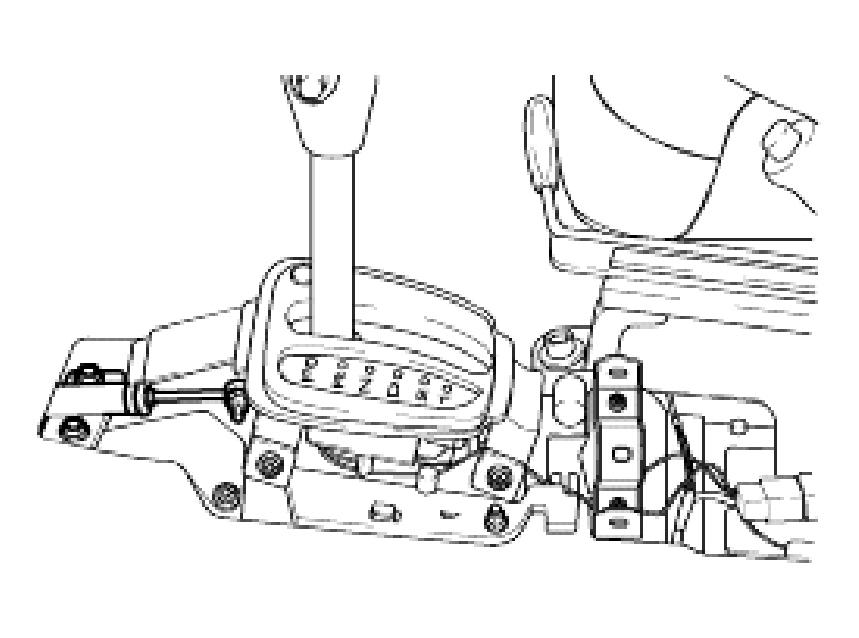

    Fig 2: Tightening Selector Lever Base Plate Nut
    G04086315Courtesy of KIA MOTORS AMERICA, INC.
  6. Tighten selector cable mounting bolt and nut.

    Tightening torque: 60~86 lb. ft. (6.8~9.8 N.m, 70~100 kg.cm)

  7. Tighten the shift lock cable nut.

    Tightening torque: 7~10.8 lb. ft. (9.8~14.7 N.m, 1.0~1.5 kg.cm)

  8. Install the front and rear console.
  9. Install cover panel, then connect cigar lighter connector.
  10. Install ash tray.
  11. Connect negative battery cable.
  12. Verify correct operation of selector lever.
