Selector Lever: Removal

WARNING: This page is about a different variant/trim than selected.

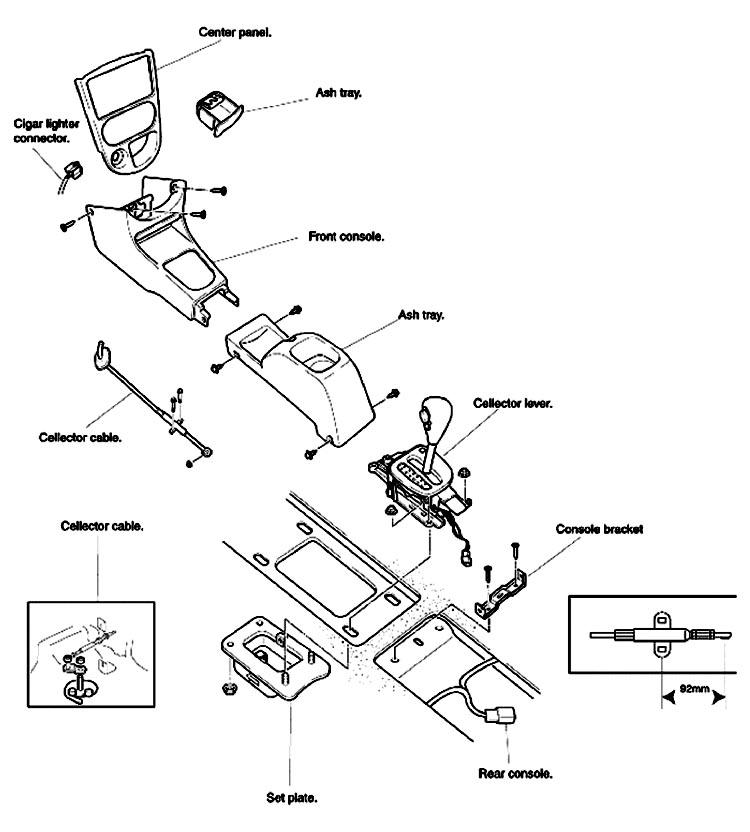

Fig 1: Identifying Components For Selector Lever Removal
G04086309Courtesy of KIA MOTORS AMERICA, INC.
  1. Disconnect negative battery cable.
  2. Remove ash tray then remove two screws.
  3. Disconnect cigarette lighter connector then remove center panel.
  4. Remove rear console and front console.
  5. Shift selector lever to P range.
  6. Remove selector cable mounting bolts.
  7. Remove selector cable nut.
  8. Loosen the shift lock cable nut and then disconnect the shift lock cable.
  9. Remove the console bracket.
  10. Disconnect the O/D OFF Connector.

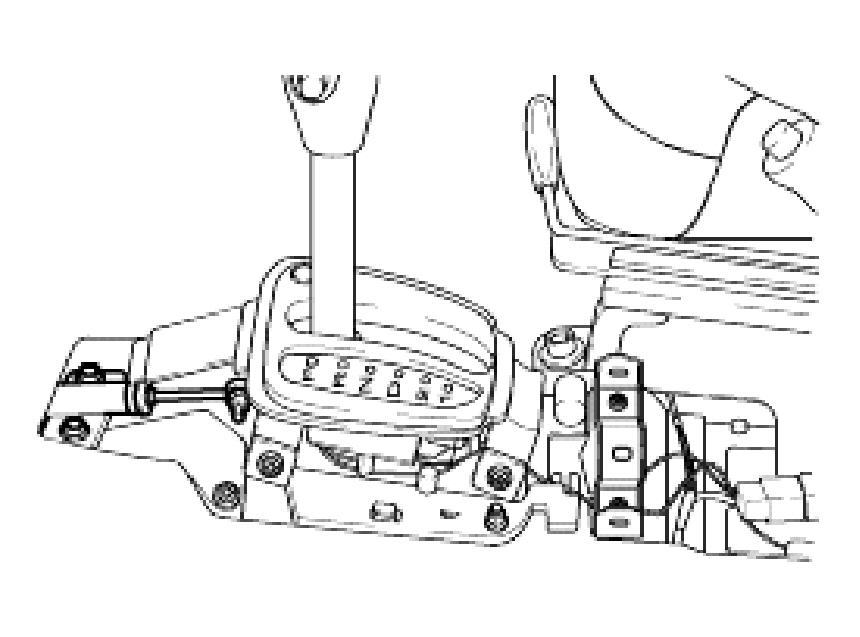

    Fig 2: Removing Console Bracket
    G04086312Courtesy of KIA MOTORS AMERICA, INC.
  11. Loosen the set plate nut after raising the vehicle then disconnect the selector lever.

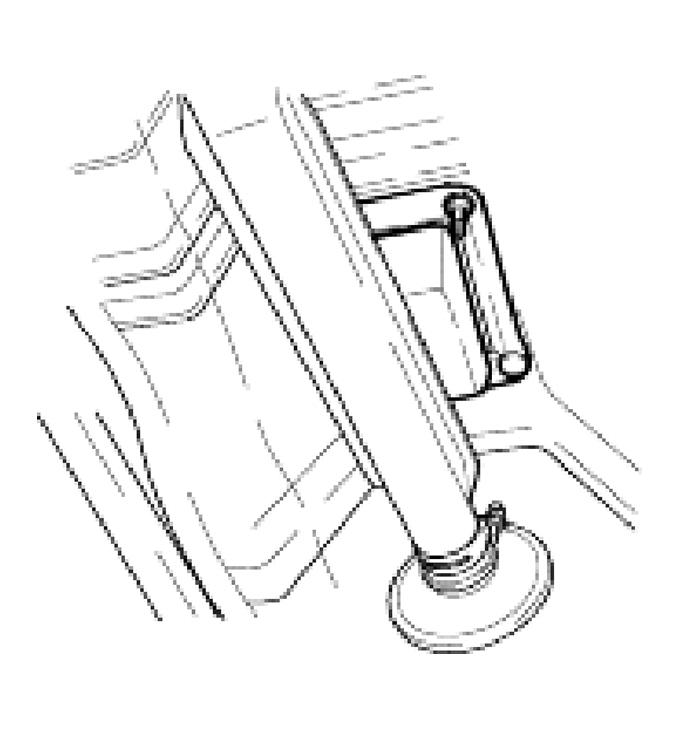

    Fig 3: Disconnecting Selector Lever
    G04086313Courtesy of KIA MOTORS AMERICA, INC.
