Selector Lever: Reassembly

WARNING: This page is about a different variant/trim than selected.

Install the selector lever to the base plate.
Install the guide plate to the base plate.
Tightening torque: 61~86.81 lb. in. (6.9~9.8 N.m, 70~100 kg.cm)
Apply grease (spec: O-GL02) to inside of roller.
Shift selector lever to P range.
Loosely install spring plate and assist plate.
Tightening torque: 18~26 lb. in. (2.0~2.9 N.m, 20~30 kg.cm)

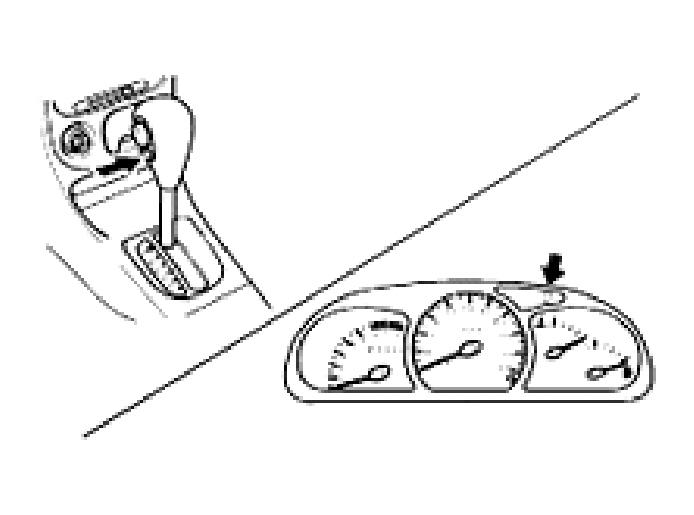

Fig 1: Installing Spring Plate And Assist Plate
Courtesy of KIA MOTORS AMERICA, INC.
Apply grease (0-GL02) to inside and outside of the guide plate.

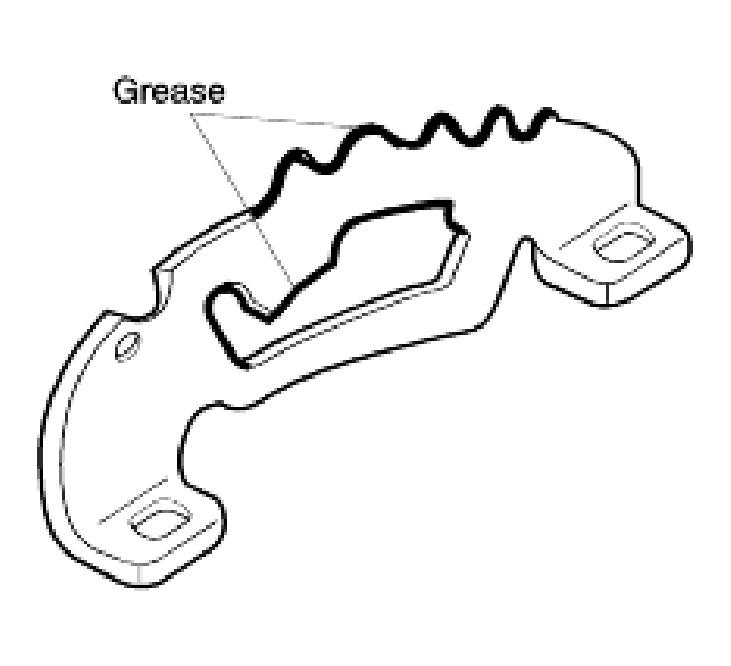

Fig 2: Applying Grease To Inside And Outside Of Guide Plate
Courtesy of KIA MOTORS AMERICA, INC.
