Battery, AGM: Installation

WARNING:

Wear a suitable pair of rubber gloves when removing a battery by hand. Safety glasses should also be worn. If the battery is cracked or leaking, the electrolyte can burn the skin and eyes.

Courtesy of CHRYSLER GROUP, LLC

Install the battery into the vehicle.

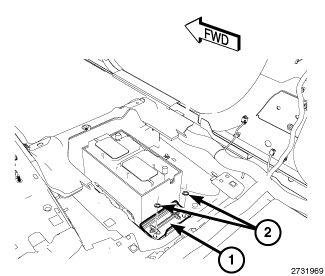

Install the battery holddown (1) into position and install the battery holddown retainers (2).
Tighten to 20 N. m (15 Ft. Lbs.).

Courtesy of CHRYSLER GROUP, LLC
Install the battery thermal blanket.
NOTE:
If equipped with a supplemental battery, install the supplemental battery

Refer to BATTERY, SUPPLEMENTAL, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

NOTE:
Negative battery terminal shown, positive terminal similar.
Position back the positive battery cable (2) and connect to the battery (1).
Position back the negative battery cable and connect to the battery.

Courtesy of CHRYSLER GROUP, LLC

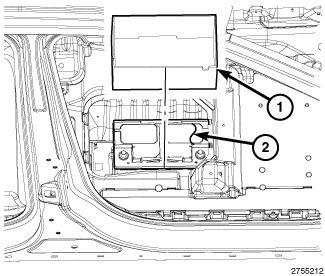

Install the battery cover (1).
Move the passenger seat back to its original position.
