Front Wheel Drive

Courtesy of CHRYSLER GROUP, LLC

If necessary, install the bushings. Refer to ISOLATOR, REAR CROSSMEMBER, FRAME, INSTALLATION .
If necessary, install the spring links. Refer to LINK, SPRING, INSTALLATION .

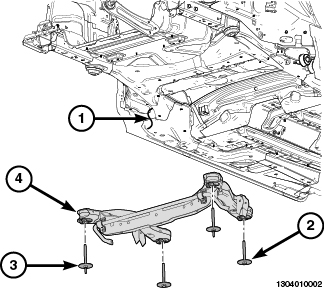

Install the rear crossmember (2) to the body and install the mounting bolts (2, 3) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

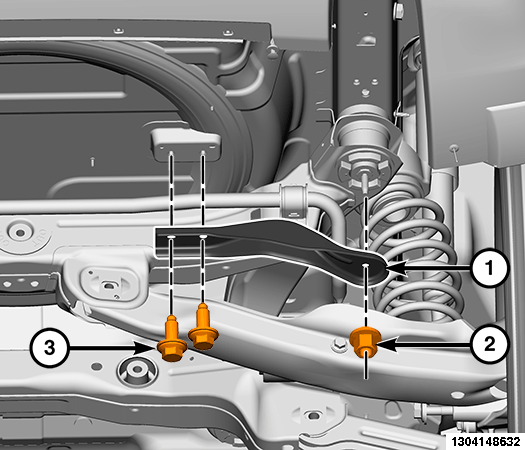

Install the brackets (1).
Install the bolts (3) and the nuts (2) and tighten to the proper torque specifications. Refer to TECHNICAL SPECIFICATIONS .
Install the rear stabilizer bar. Refer to STABILIZER BAR, REAR SUSPENSION, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

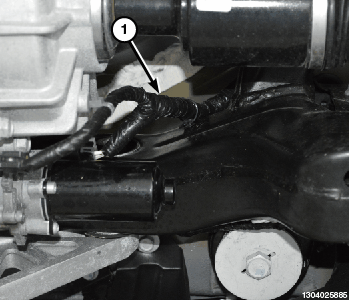

Connect the wire harness (1) to the crossmember.

Courtesy of CHRYSLER GROUP, LLC

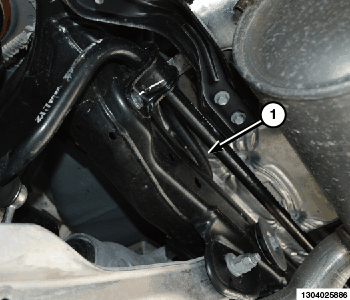

Connect the vent tube (1) to the crossmember.
Install the ride height sensor (1), if equipped. Refer to SENSOR, AXLE, INSTALLATION .
Install the knuckles as necessary. Refer to KNUCKLE, REAR, INSTALLATION .
Install the exhaust to the vehicle. Refer to MUFFLER, EXHAUST, INSTALLATION .
Lower the vehicle and tighten the following fasteners with the vehicle at normal ride height:
- Lower transversal link to rear crossmember: Tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Upper transversal link to rear crossmember: Tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .
- Upper transversal link to lower control arm: Tighten to the proper torque specifications. Refer to FRONT, TECHNICAL SPECIFICATIONS .
Perform a wheel alignment then tighten the lower transversal link to lower control arm bolt to the proper torque specifications. Refer to WHEEL ALIGNMENT, STANDARD PROCEDURE . Refer to FRONT, TECHNICAL SPECIFICATIONS .
Connect the negative battery cable(s). Refer to NEGATIVE CABLE .
