Negative Cable

  1. Position the negative battery cable for installation.

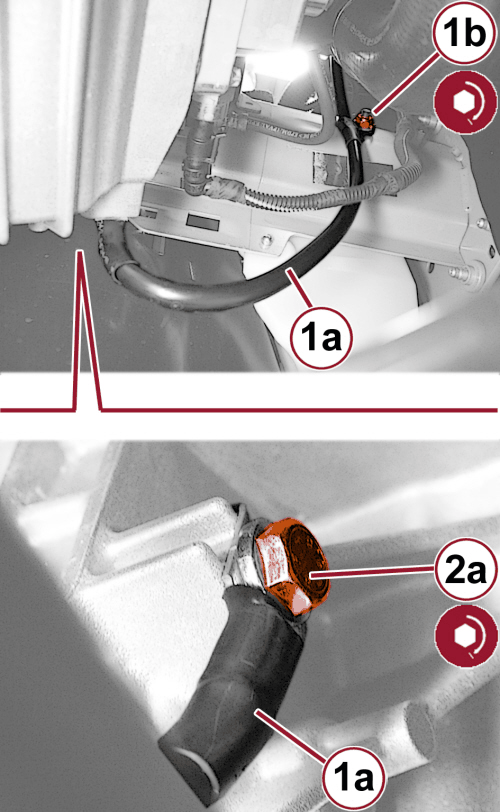

    GC0163272Courtesy of CHRYSLER GROUP, LLC
  2. Connect the cable terminal to the chassis ground (1a), with nut (1b) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  3. Install protective cover over nut (1b).
  4. Connect the terminal to the gearbox of the ground wire (1a), then tighten the bolt (2a) and tighten to the proper specifications. Refer to TORQUE SPECIFICATIONS  .
  5. Install protective cover over nut (2a).
  6. Install the left front wheel splash shield. Refer to INSTALLATION .
  7. Engage the ground lead to the retaining clip.
  8. Connect the terminal to the negative battery pole and to engage the retainer.
