Insulator, Engine Mount, Left: Installation

Courtesy of CHRYSLER GROUP, LLC

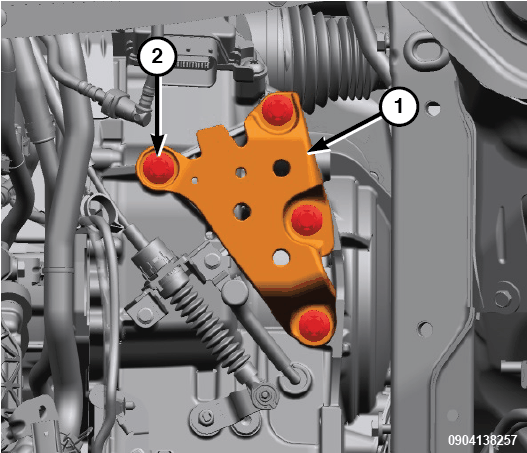

If removed, install the left engine mount bracket (1) and tighten the four bolts (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .

Courtesy of CHRYSLER GROUP, LLC

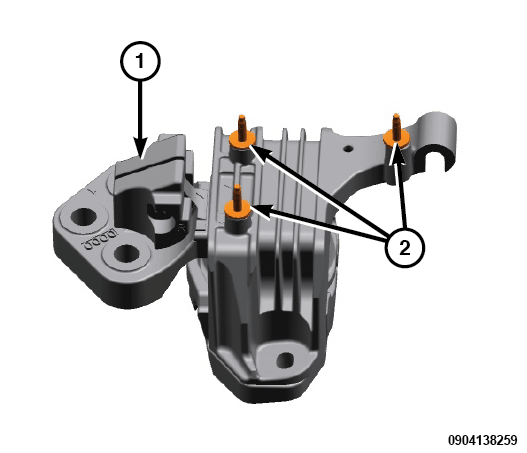

If removed, install the Power Distribution Center (PDC) mounting studs (2) to the left engine mount isolator (1) and tighten securely.

Courtesy of CHRYSLER GROUP, LLC

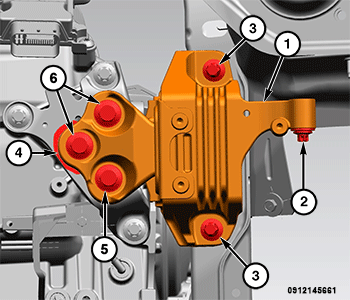

Install the left engine mount insulator (1) to the frame rail with the bolts (3) hand tight.
Install the left engine mount insulator strut tower bolt (2) hand tight.
Install the isolator to bracket bolts (5, 6) hand tight.
Tighten the isolator to strut tower bolt (2) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Tighten the insulator to the frame rail bolts (3) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Align the left isolator with the mark (4) made during removal and tighten the forward bolt (5) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Tighten the bolts (6) to the proper torque specification. Refer to TORQUE SPECIFICATIONS .
Install the Power Distribution Center (PDC). Refer to CENTER, POWER DISTRIBUTION (PDC), INSTALLATION .
Install the battery tray and battery. Refer to TRAY, BATTERY, INSTALLATION .
Install the belly pan. Refer to BELLY PAN, INSTALLATION .
If equipped, install the skid plate. Refer to PLATE, SKID, SIDE, INSTALLATION .

Courtesy of CHRYSLER GROUP, LLC

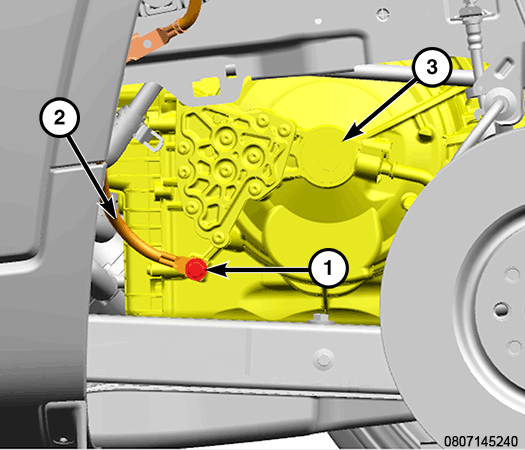

Position the negative battery cable (2) to the transmission (3). Install the fastener (1) and tighten to the proper torque specification. Refer to (TORQUE SPECIFICATIONS ).
Install the left front wheel house splash shield. Refer to INSTALLATION .
Remove the support and lower the vehicle.
