Lower Timing Covers

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the gasket mating surfaces.

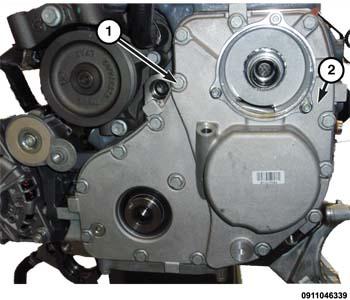

    GC0161788Courtesy of CHRYSLER GROUP, LLC
  2. Using a new gasket, install the lower timing cover (2) and tighten bolts (1) finger tight.

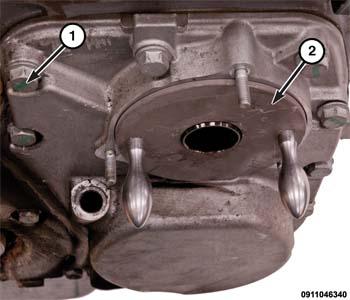

    GC0161841Courtesy of CHRYSLER GROUP, LLC
  3. Install the (special tool #99396039, Tool, Alignment) (2) and align lower timing cover. Tighten the bolts (1) to 25 N.m (18 ft. lbs.).
  4. Remove the alignment tool (2).
    GC0161806Courtesy of CHRYSLER GROUP, LLC
  5. Install the idler pulley. Tighten bolt 28 N.m (21 ft. lbs.).

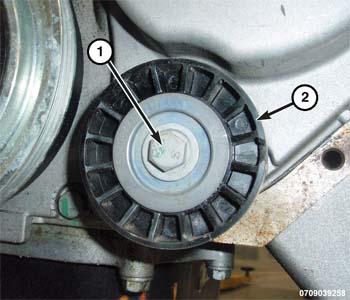

    GC0161986Courtesy of CHRYSLER GROUP, LLC

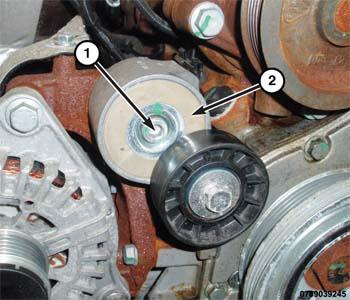

  6. Install the serpentine belt tensioner. Tighten bolt 25 N.m (18 ft. lbs.).
  7. Install the bypass filter. Refer to FILTER, BYPASS, INSTALLATION .
  8. Install the vibration damper. Refer to DAMPER, VIBRATION .
  9. Install the engine into vehicle. Refer to INSTALLATION .
  10. Connect the negative battery cable.
