Primary Timing Chain

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

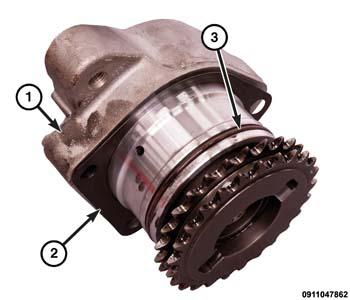

GC0161944Courtesy of CHRYSLER GROUP, LLC
  1. If removed, install a NEW  gasket (2) and O-ring seal (3) on the power steering drive adapter (1) assembly.

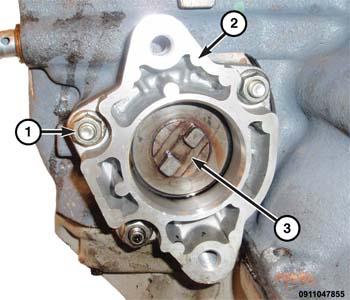

    GC0162078Courtesy of CHRYSLER GROUP, LLC
  2. If removed, lubricate O-ring seal with clean engine oil and install the power steering drive adapter (2) assembly. Tighten the nuts (1) to 25 N.m (18 ft. lbs.).
    GC0171038Courtesy of CHRYSLER GROUP, LLC
  3. If required, install the (special tool #99360187, Holding Tool, Power Steering) (1) onto back side of adapter and securely tighten the bolts (2).

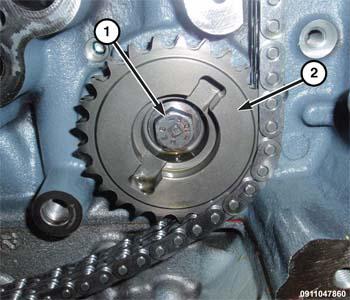

    GC0161785Courtesy of CHRYSLER GROUP, LLC
  4. If required, install the power steering drive gear bolt (1) and tighten finger tight.

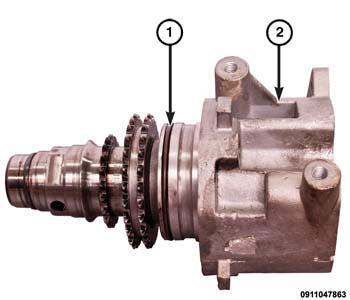

    GC0162178Courtesy of CHRYSLER GROUP, LLC
  5. If removed, install a NEW  O-ring seal (1) onto fuel injection pump adapter (2).

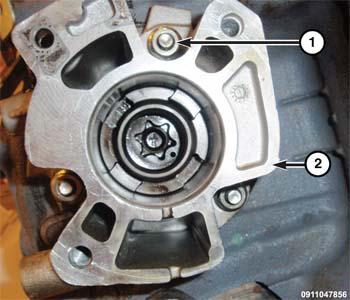

    GC0161821Courtesy of CHRYSLER GROUP, LLC
  6. If removed, install the fuel injection pump adapter (2). Tighten the nuts (1) to 25 N.m (18 ft. lbs.).

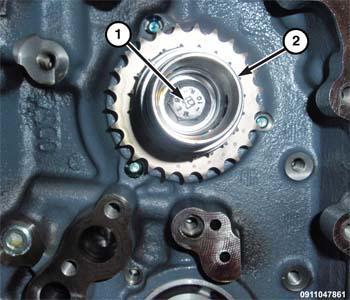

    GC0162046Courtesy of CHRYSLER GROUP, LLC
  7. If removed, install the fuel injection pump drive gear (2) and tighten the bolt (1) finger tight.

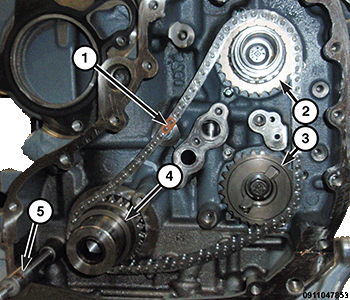

    GC0171048Courtesy of CHRYSLER GROUP, LLC
  8. Install the (special tool #2000018200, Pin, Locking) tool (5) into engine block.
  9. Position the NEW  timing chain (1) onto the crankshaft sprocket (4), the fuel injection pump drive sprocket (2) and the power steering pump drive sprocket (3).

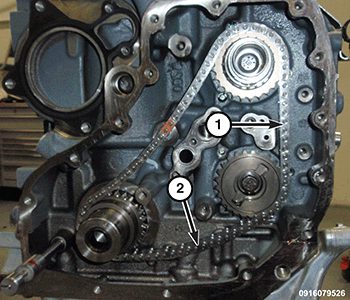

    GC0171034Courtesy of CHRYSLER GROUP, LLC
  10. Make sure the timing chain has no slack in location (1 and 2).

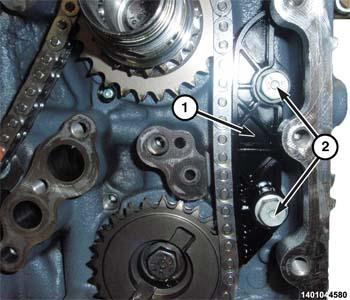

    GC0161937Courtesy of CHRYSLER GROUP, LLC
  11. Install the right timing chain guide (1). Tighten the bolts (2) to 25 N.m (18 ft. lbs.).

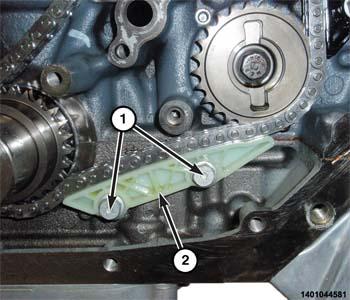

    GC0161771Courtesy of CHRYSLER GROUP, LLC
  12. Install the lower timing chain guide (2). Tighten the bolts (1) to 25 N.m (18 ft. lbs.).

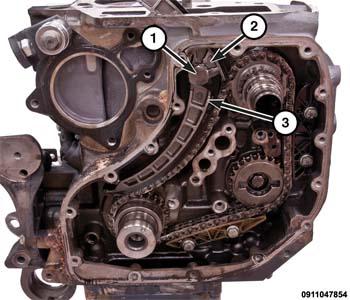

    GC0161885Courtesy of CHRYSLER GROUP, LLC
  13. Install the left upper and lower timing chain guide (2 and 3). Tighten the bolt (1) to 40 N.m (30 ft. lbs.).
  14. Install the lower timing chain tensioner. Refer to TENSIONER, ENGINE TIMING, INSTALLATION .
    GC0161785Courtesy of CHRYSLER GROUP, LLC
  15. Tighten the power steering drive gear bolt (1) to 130 N.m (96 ft. lbs.).
    GC0171038Courtesy of CHRYSLER GROUP, LLC
  16. If required, remove the bolts (2) and the power steering holding tool (1).

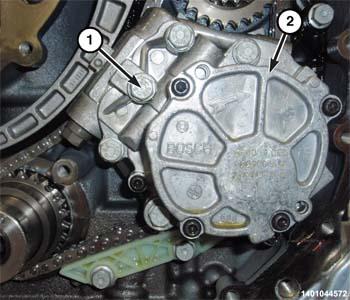

    GC0162182Courtesy of CHRYSLER GROUP, LLC
  17. Install the engine oil/vacuum pump (2). Tighten the bolts (1) to N.m 25 (18 ft. lbs.).
  18. Install the power steering pump. Refer to INSTALLATION 3.0L DIESEL ENGINE .
  19. Install the fuel injection pump. Refer to PUMP, FUEL INJECTION, INSTALLATION .
  20. Install the upper timing chain. Refer to CHAIN AND SPROCKETS, TIMING, INSTALLATION .
