Insulator, Engine Mount, Left: Installation

WARNING: This page is about a different car, the 2017 RAM ProMaster 3500, 2017 RAM ProMaster 2500, and 2017 RAM ProMaster 1500. However, it is still accessible from the selected car via links, so may be relevant.

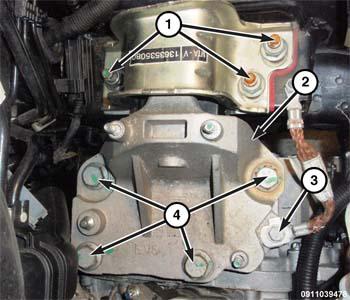

GC0161752Courtesy of CHRYSLER GROUP, LLC
  1. Install the left engine mount (2). Tighten the nuts (1) to 95 N.m (70 ft. lbs.).
  2. Install the engine mount bolts (4) and tighten to 95 N.m (70 ft. lbs.).
  3. Install the ground strap and tighten bolt (3) to 15 N.m (133 in. lbs.).
  4. Remove floor jack.
  5. Install the hydraulic clutch unit. Refer to CONTROL UNIT, INSTALLATION .
  6. Install the air cleaner body. Refer to INSTALLATION .
