Diagnostic Test

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU view.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE: Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to step 2
  No
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.
ATTEMPT TO COMMUNICATE WITH THE PCM
1. With the scan tool in ECU View, observe the status of the PCM.
  Does the scan tool display a red "X" next to the PCM?

  Yes
  - Perform the No Response From PCM diagnostic procedure. Refer to DTC-Based Diagnostics/MODULE, Totally Integrated Power (TIPM) - Diagnosis and Testing
  No
  - Go to step 3
(D65) CAN C BUS (+) CIRCUIT OPEN

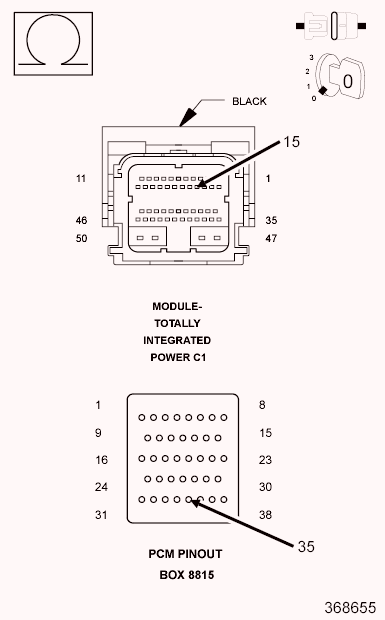

Fig 1: CHECKING CAN C BUS (+) CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM connector and the appropriate terminal of the special tool #8815.
  Is the resistance below 5.0 ohms?

  Yes
  - Go to step 4
  No
  - Repair the (D65) CAN C Bus (+) circuit for an open.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
(D64) CAN C BUS (-) CIRCUIT OPEN

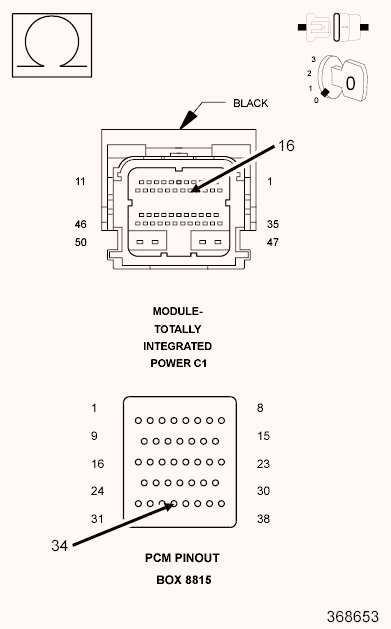

Fig 2: CHECKING CAN C BUS (-) CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM connector and the appropriate terminal of the special tool #8815.
  Is the resistance below 5.0 ohms?

  Yes
  - Replace and program the Powertrain Control Module in accordance with the Service Information.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
  No
  - Repair the (D64) CAN C Bus (-) circuit for an open.
  - Perform the POWERTRAIN VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Powertrain Control (PCM) - Standard Procedure
