No Response From SUNR (Sunroof Module) (Retractable Roof): Notes
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

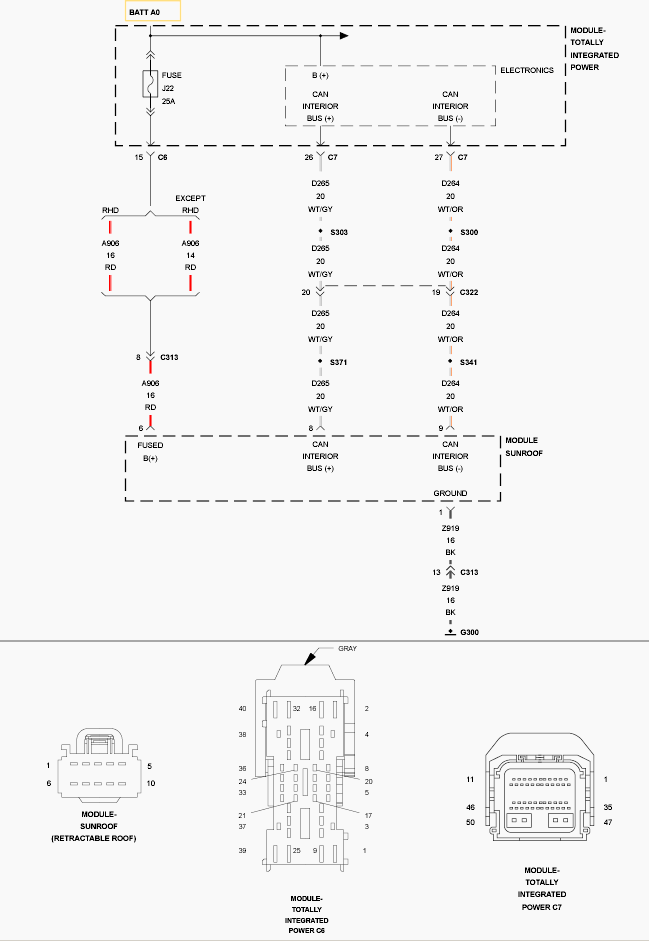

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A906) FUSED B (+) CIRCUIT OPEN OR SHORTED |
| (Z919) GROUND CIRCUIT OPEN |
| (D264) AND (D265) CAN INTERIOR BUS (125K) CIRCUITS OPEN |
| SUNROOF MODULE |
