No Response From Pcm (Powertrain Control Module) (NGC): Notes
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

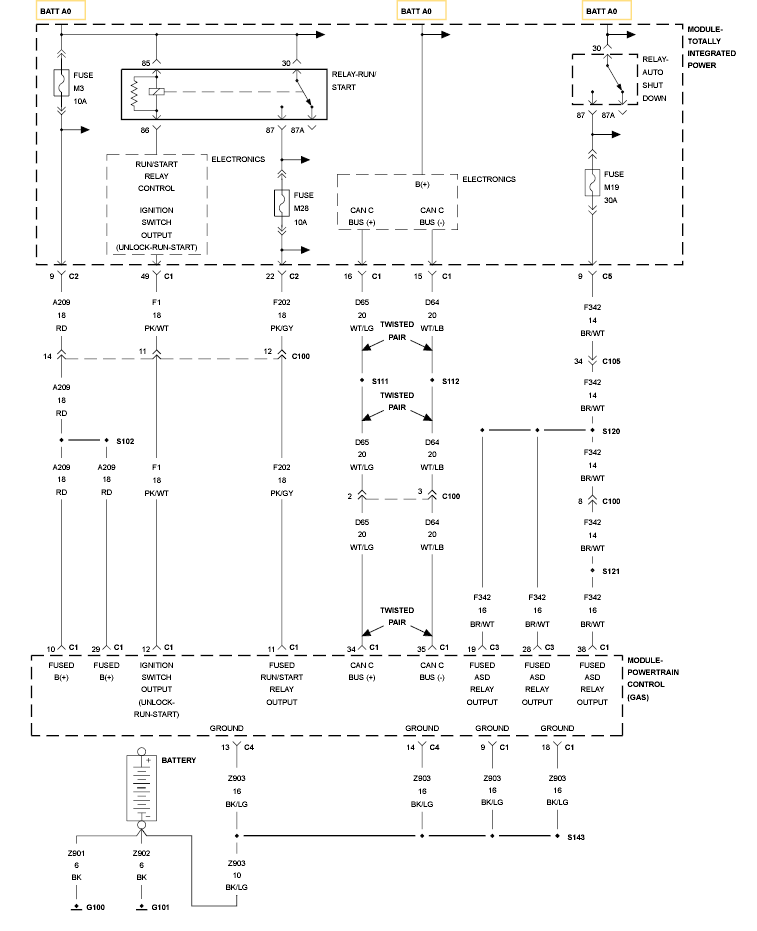

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A209) FUSED B(+) CIRCUITS OPEN OR SHORTED |
| (Z933) GROUND CIRCUITS OPEN |
| (F202) FUSED RUN/START RELAY OUTPUT CIRCUIT OPEN OR SHORTED |
| (F1) IGNITION SWITCH OUTPUT (UNLOCK/RUN/START) CIRCUIT OPEN OR SHORTED |
| (F342) FUSED ASD RELAY OUTPUT CIRCUIT OPEN OR SHORTED |
| (D65) CAN C BUS (+) CIRCUIT OPEN |
| (D64) CAN C BUS (-) CIRCUIT OPEN |
| POWERTRAIN CONTROL MODULE |
