No Response From HFM (Hands Free Module): Notes
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

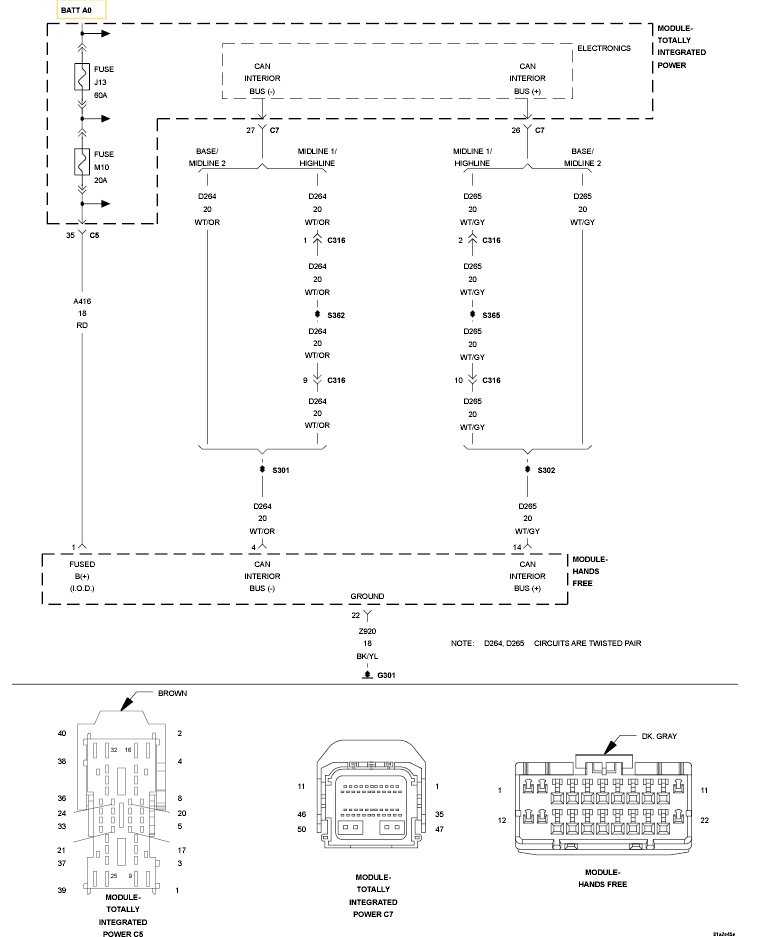

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS .
| Possible Causes |
|---|
| (A416) FUSED B (+) (I.O.D.) CIRCUIT OPEN OR SHORTED |
| (Z909) GROUND CIRCUIT OPEN |
| (D264) AND (D265) CAN INTERIOR BUS (125K) CIRCUITS OPEN |
| HANDS FREE MODULE |
