Diagnostic Test

WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

TEST FOR INTERMITTENT CONDITION
NOTE: Check for any TSB(s) related to the condition. If a TSB applies, perform the procedure outlined in the TSB before continuing.
1. Turn the ignition on.
  NOTE: Ensure the IOD fuse is installed and battery voltage is between 10.0 and 16.0 volts.
2. With the scan tool, select ECU View.
  NOTE: A red "X" will be next to the module that is not communicating, indicating that the module is not active on the Bus network. A green check indicates that the module is active on the Bus network.

  NOTE: Check the TIPM for any active CAN C hardware DTCs, perform DTC before proceeding.

  Does the scan tool display a red "X" next to the module?

  Yes
  - Go to step 2
  No
  - The no response condition is not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring for chafed, pierced, pinched, and partially broken wires and the wiring harness connectors for broken, bent, pushed out, and corroded terminals.

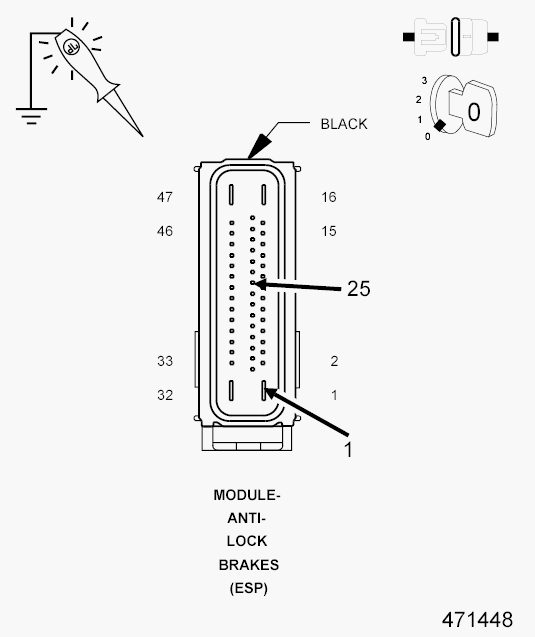

(A107) (A111) FUSED B(+) CIRCUIT OPEN OR SHORTED

Fig 1: CHECKING FUSED B(+) CIRCUIT FOR OPEN OR SHORTED
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Antilock Brake Module harness connector.
3. Using a 12-volt test light connected to ground, check each (A107) and (A111) Fused B(+) circuit.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go to step 3
  No
  - Repair the Fused B(+) circuit for an open or short.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure

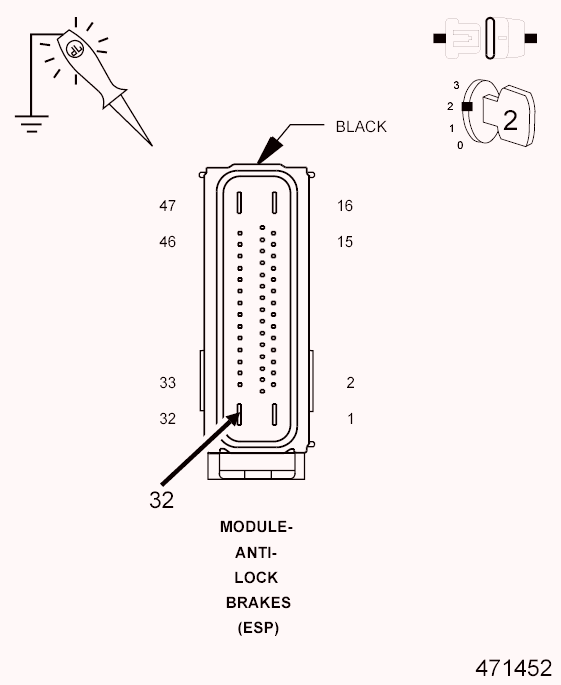

(Z909) (Z917) GROUND CIRCUITS OPEN

Fig 2: CHECKING GROUND CIRCUITS FOR OPEN
Courtesy of CHRYSLER LLC
1. Using a 12-volt test light connected to 12-volts, check each (Z909) and (Z917) ground circuit.
  Does the test light illuminate brightly for each circuit?

  Yes
  - Go to step 4
  No
  - Repair the (Z909) or (Z917) ground circuit for an open.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure

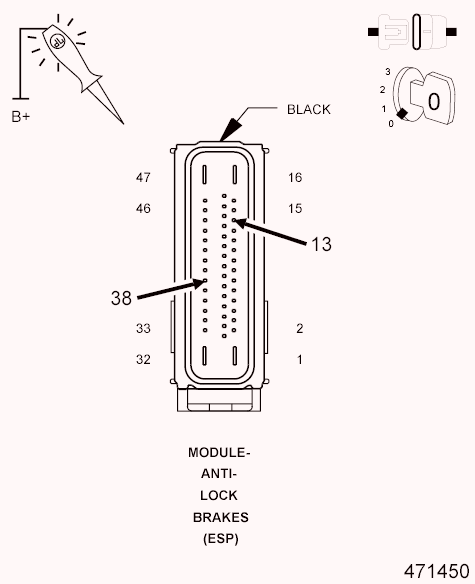

(F941) FUSED RUN/START RELAY OUTPUT CIRCUIT OPEN OR SHORTED

Fig 3: CHECKING FUSED RUN/START RELAY OUTPUT CIRCUIT FOR OPEN OR SHORTED
Courtesy of CHRYSLER LLC
1. Turn the ignition on.
2. Using a 12-volt test light connected to ground, check the (F941) Fused Run/Relay Output circuit.
  Does the test light illuminate brightly?

  Yes
  - Go to step 5
  No
  - Repair the (F941) Fused Run/Relay Output circuit for an open or short.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure

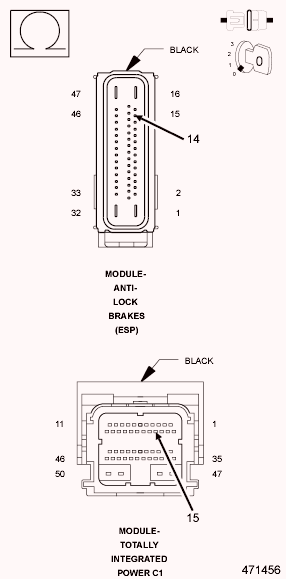

(D65) CAN C BUS (+) CIRCUIT OPEN

Fig 4: CHECKING CAN C BUS (+) CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the TIPM C1 harness connector.
3. Measure the resistance of the (D65) CAN C Bus (+) circuit between the TIPM C1 harness connector and the Antilock Brake Module connector.
  Is resistance below 5.0 ohms?

  Yes
  - Go to step 6
  No
  - Repair the (D65) CAN C Bus (+) circuit for an open.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure

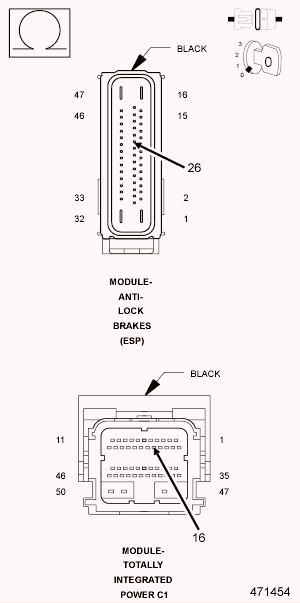

(D64) CAN C BUS (-) CIRCUIT OPEN

Fig 5: CHECKING CAN C BUS (-) CIRCUIT FOR OPEN
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (D64) CAN C Bus (-) circuit between the TIPM C1 harness connector and the Antilock Brake Module connector.
  Is resistance below 5.0 ohms?

  Yes
  - Replace the Antilock Brake Module in accordance with the Service Information.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
  No
  - Repair the (D64) CAN C Bus (-) circuit for an open.
  - Perform the ABS VERIFICATION TEST. Refer to DTC-Based Diagnostics/MODULE, Antilock Brake (ABS) - Standard Procedure
