Diagnostic Can C (+) Circuit Low: Notes
WARNING: This page is about a different car, the 2009 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

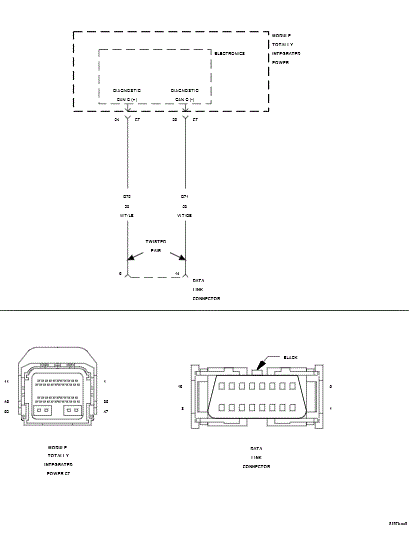

For complete wiring diagrams refer to SYSTEM WIRING DIAGRAMS .
- When Monitored:
When the scan tool queries the Totally Integrated Power Module (TIPM).
- Set Condition:
The scan tool has detected a shorted low condition on the (D72) Diagnostic CAN C (+) circuit.
| Possible Causes |
|---|
| (D72) DIAGNOSTIC CAN C (+) CIRCUIT SHORTED TO GROUND |
| TOTALLY INTEGRATED POWER MODULE |
