Engine Block: Crankshaft: Removal

WARNING: This page is about a different car, the 2020 Chrysler 300 and 2019 Chrysler 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the vibration damper. Refer to DAMPER, VIBRATION, REMOVAL  .
  3. Remove the rear oil seal retainer. Refer to REMOVAL  .
  4. Remove the oil pan. Refer to REMOVAL  .
  5. Remove the oil pump pickup.
  6. Remove the windage tray/oil pan gasket.
  7. Remove the timing chain cover. Refer to REMOVAL  .
    GC0095573Courtesy of CHRYSLER GROUP, LLC
  8. Remove the oil pump. Refer to REMOVAL  .
    GC0095575Courtesy of CHRYSLER GROUP, LLC
  9. Remove the timing drive (2). Refer to REMOVAL  .
    GC0092128Courtesy of CHRYSLER GROUP, LLC
  10. Identify rod bearing caps before removal. Remove rod bearing caps with bearings.
  11. Identify main bearing caps (1) before removal.
    GC0081774Courtesy of CHRYSLER GROUP, LLC
  12. Remove the M8 crossbolts with attached washer/gasket and discard  . Remove main bearing caps (1) and bearings one at a time.

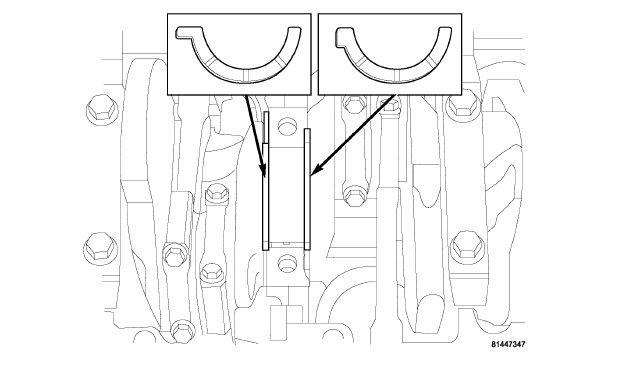

    GC0081775Courtesy of CHRYSLER GROUP, LLC
  13. Remove the thrust washers.
  14. Remove the crankshaft out of the block.
