Transmission Solenoid/TRS Assembly

NOTE: If the Transmission Solenoid/TRS Assembly is being replaced, the Quick Learn Procedure must be performed. Refer to STANDARD PROCEDURE .

Fig 1: Removing/Installing Valve Body Assembly

Courtesy of CHRYSLER LLC

1 - VALVE BODY TO CASE BOLT (6)

Remove the valve body from the transmission. See Fig 1 and REMOVAL .

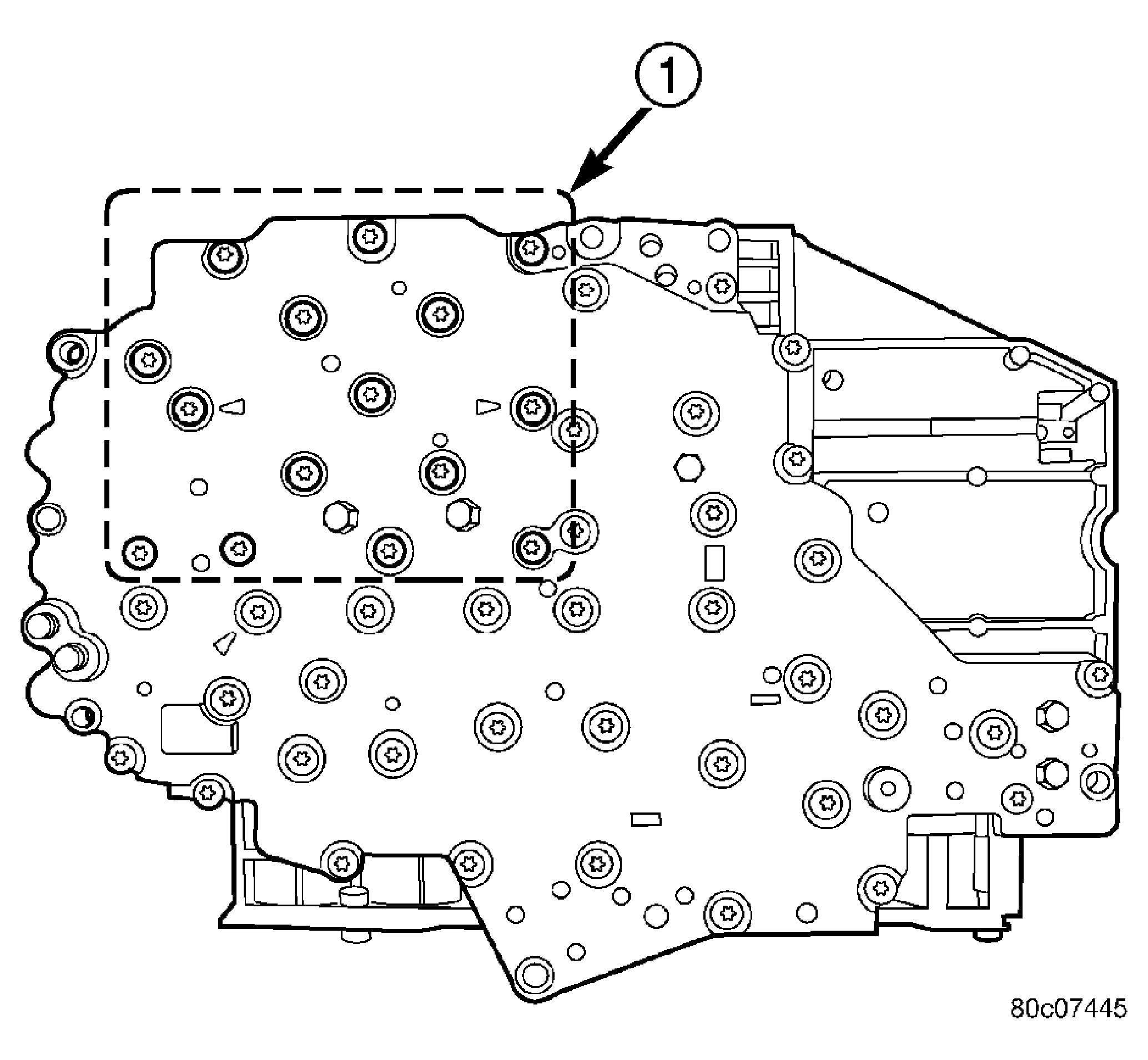

Fig 2: Transmission Solenoid/TRS Assembly Bolts
Courtesy of CHRYSLER LLC

1 - SOLENOID PACK BOLTS (15)
Remove the bolts (1) holding the transmission solenoid/TRS assembly onto the valve body. See Fig 2.
Separate the transmission solenoid/TRS assembly from the valve body.
