Heater-Engine Block: Removal: Removal-4.7L

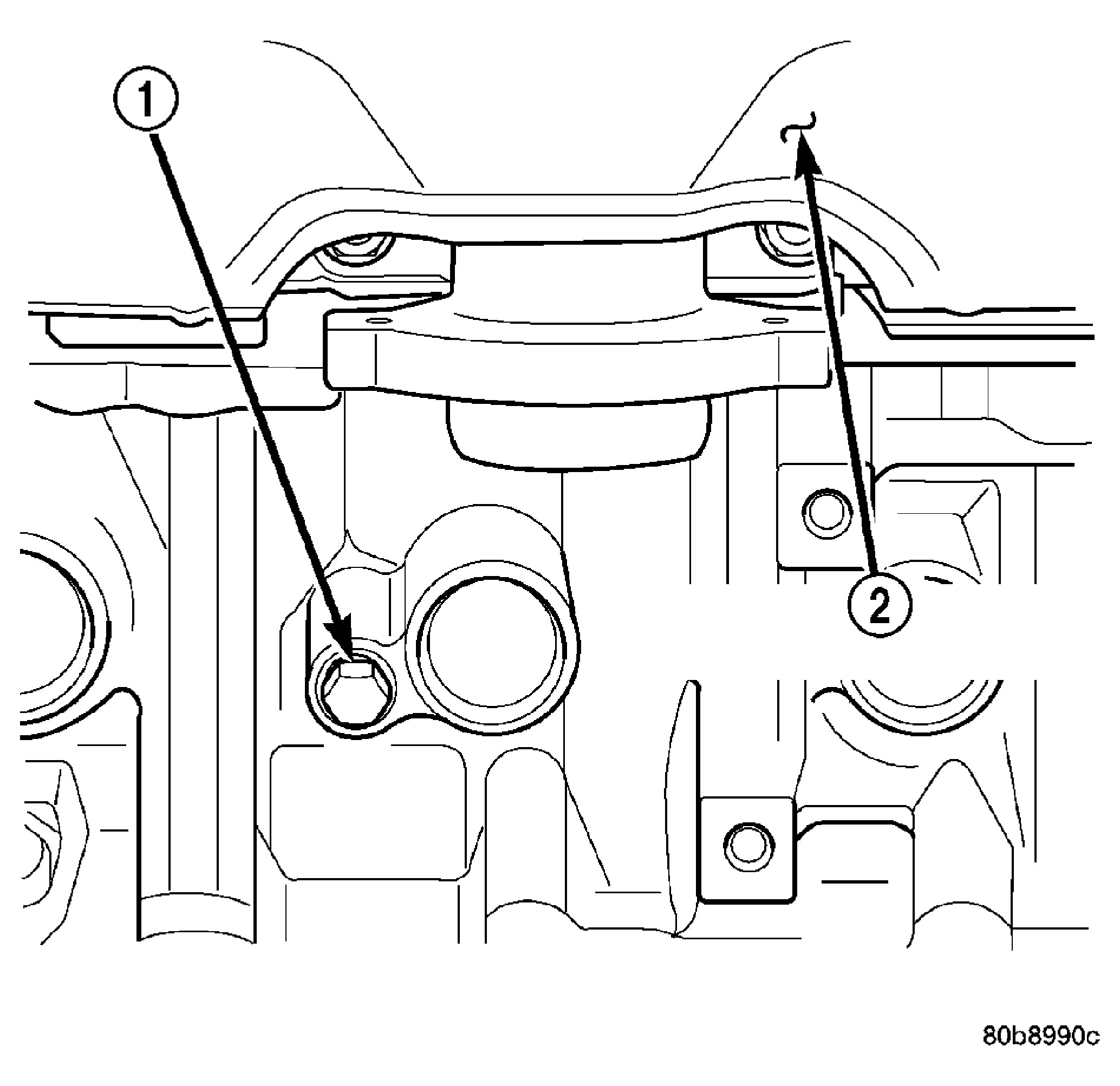

Fig 1: Drain Plug

GC0028704

Courtesy of CHRYSLER LLC

1 - CYLINDER BLOCK DRAIN PLUG

2 - EXHAUST MANIFOLD AND HEAT SHIELD

Disconnect negative battery cable from battery.
Drain coolant from radiator. See STANDARD PROCEDURE .
Raise vehicle.
Remove engine cylinder block drain plug(s) located on the sides of cylinder block above the oil pan rail. See Fig 1.

Fig 2: Engine Block Heater
Courtesy of CHRYSLER LLC

1 - ENGINE BLOCK HEATER
Remove power cord from block heater.
Loosen screw at center of block heater. Remove heater assembly. See Fig 2.
