Powertrain Control Module C3 - Gray 32 Way

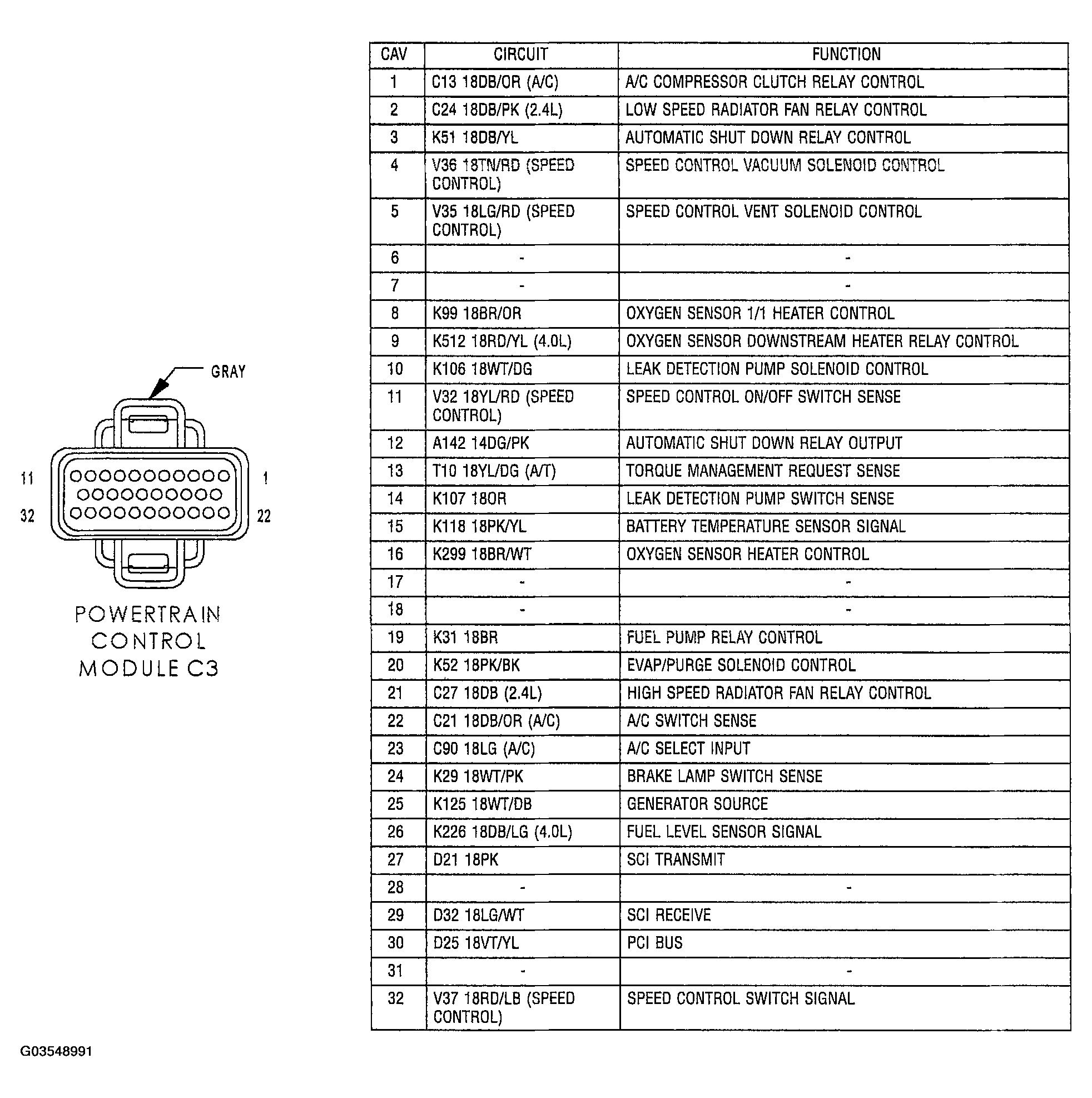

Fig 1: Identifying Powertrain Control Module C3 - Gray 32 Way

G03548991

Courtesy of DAIMLERCHRYSLER CORP.
