Control Module: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the module assembly. (Refer to REMOVAL
)

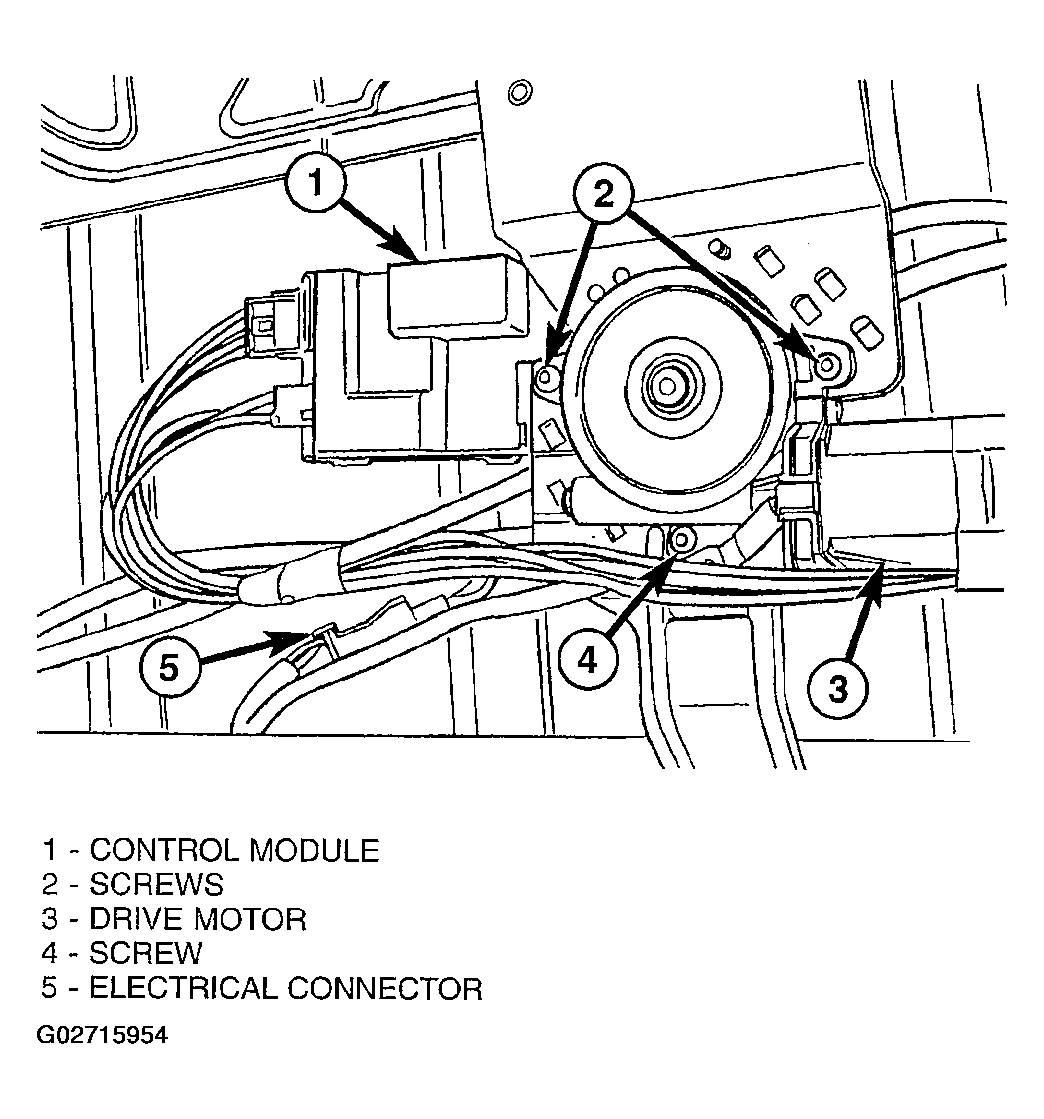

- Remove three motor assembly retaining screws from bottom side of motor, and remove motor assembly (Figure
).

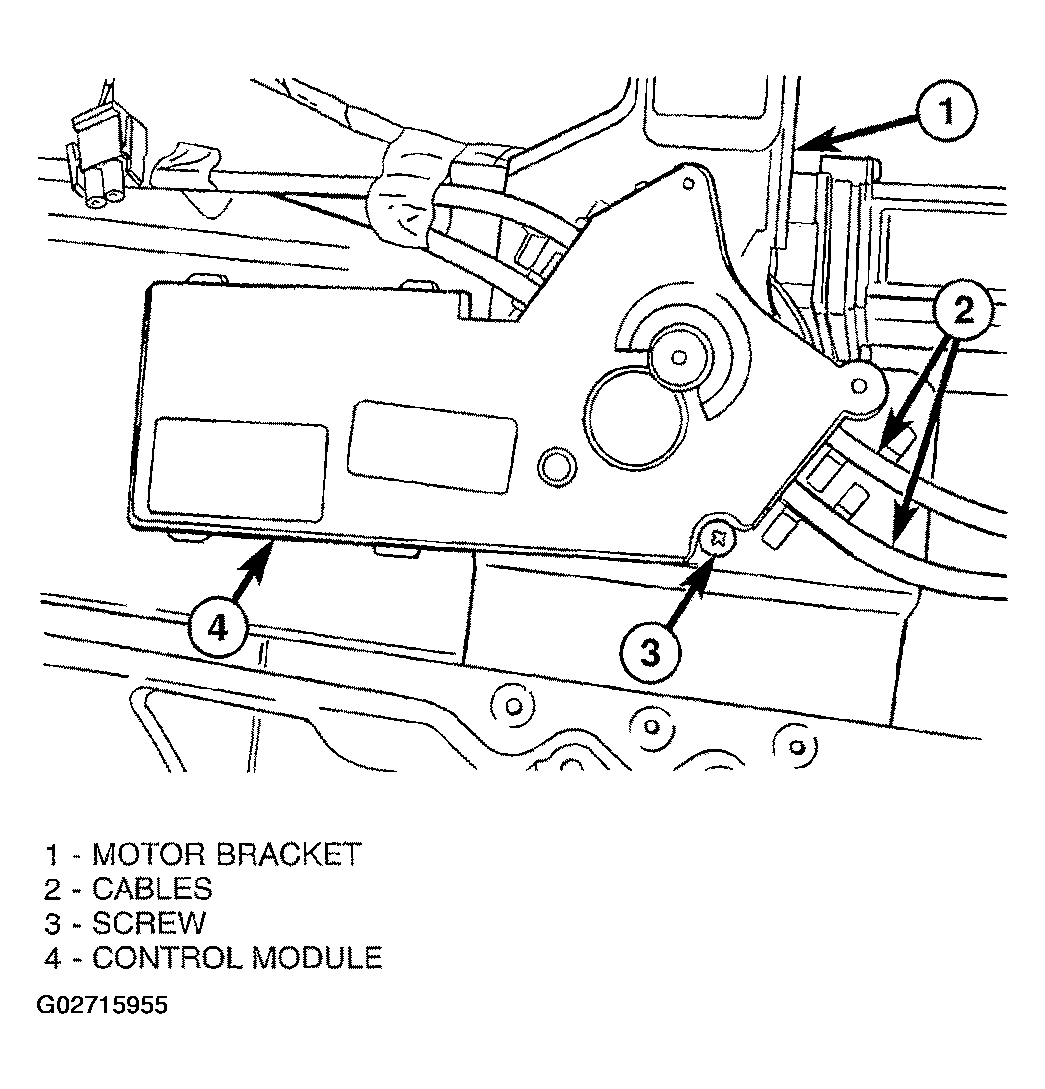

- From top side of module assembly, remove one attaching screw from electronics module. (Fig 1
)
- Remove old timing module.
Courtesy of DAIMLERCHRYSLER CORP.
