Module Assembly: Removal

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Move glass panel to the fully closed position.
Disconnect and isolate the negative battery cable.
Remove sunroof opening trim lace.
Remove headliner. (Refer to INTERIOR )
Disconnect wire harness push in fasteners and electrical connector. (Fig 1 )

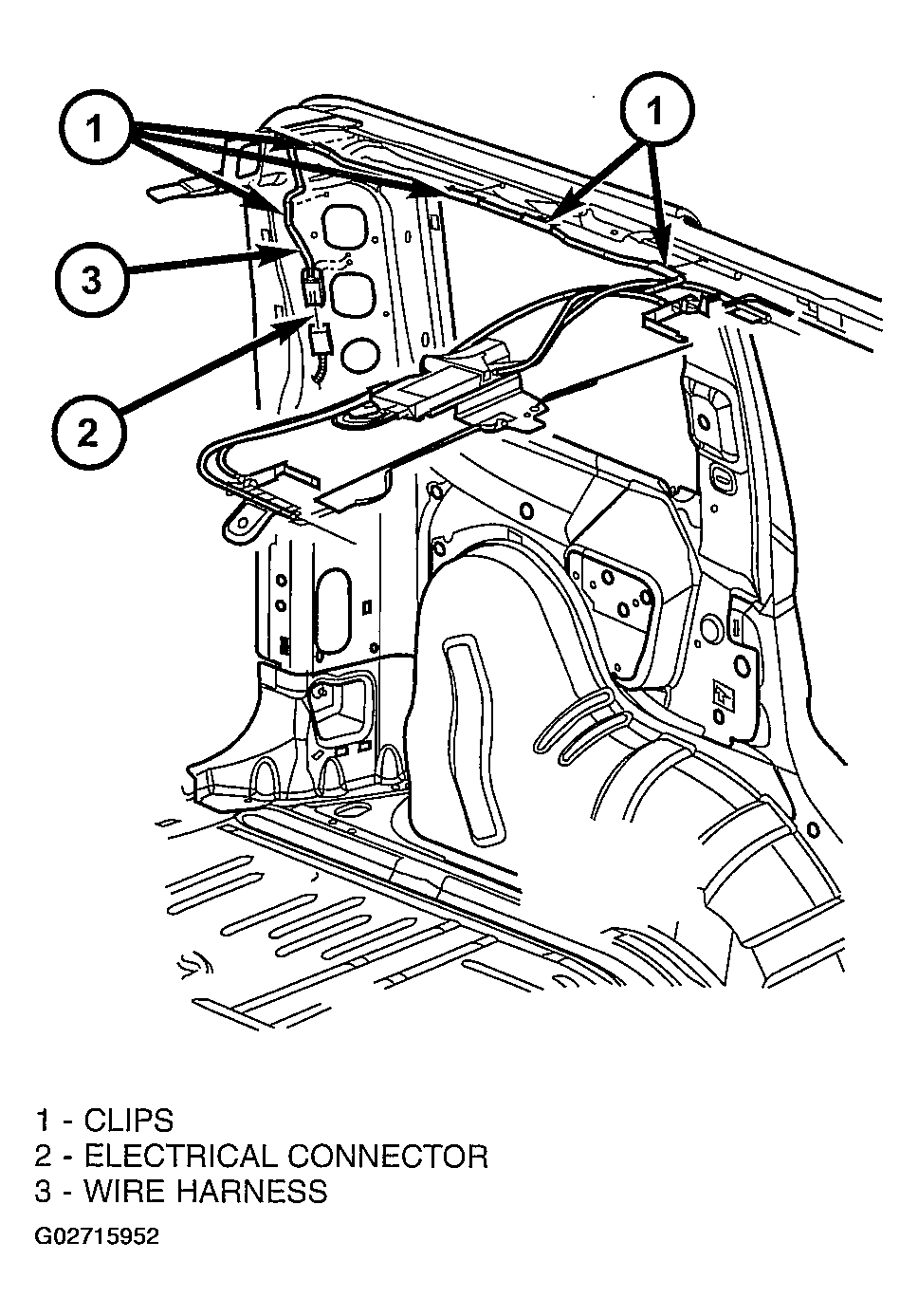

Fig 1: Disconnecting Wire Harness
Courtesy of DAIMLERCHRYSLER CORP.
Disconnect the drain tubes from sunroof housing.
Loosen fasteners attaching sunroof module assembly.
With the aid of a helper, remove fasteners attaching sunroof module assembly to roof panel (Fig 2 ).

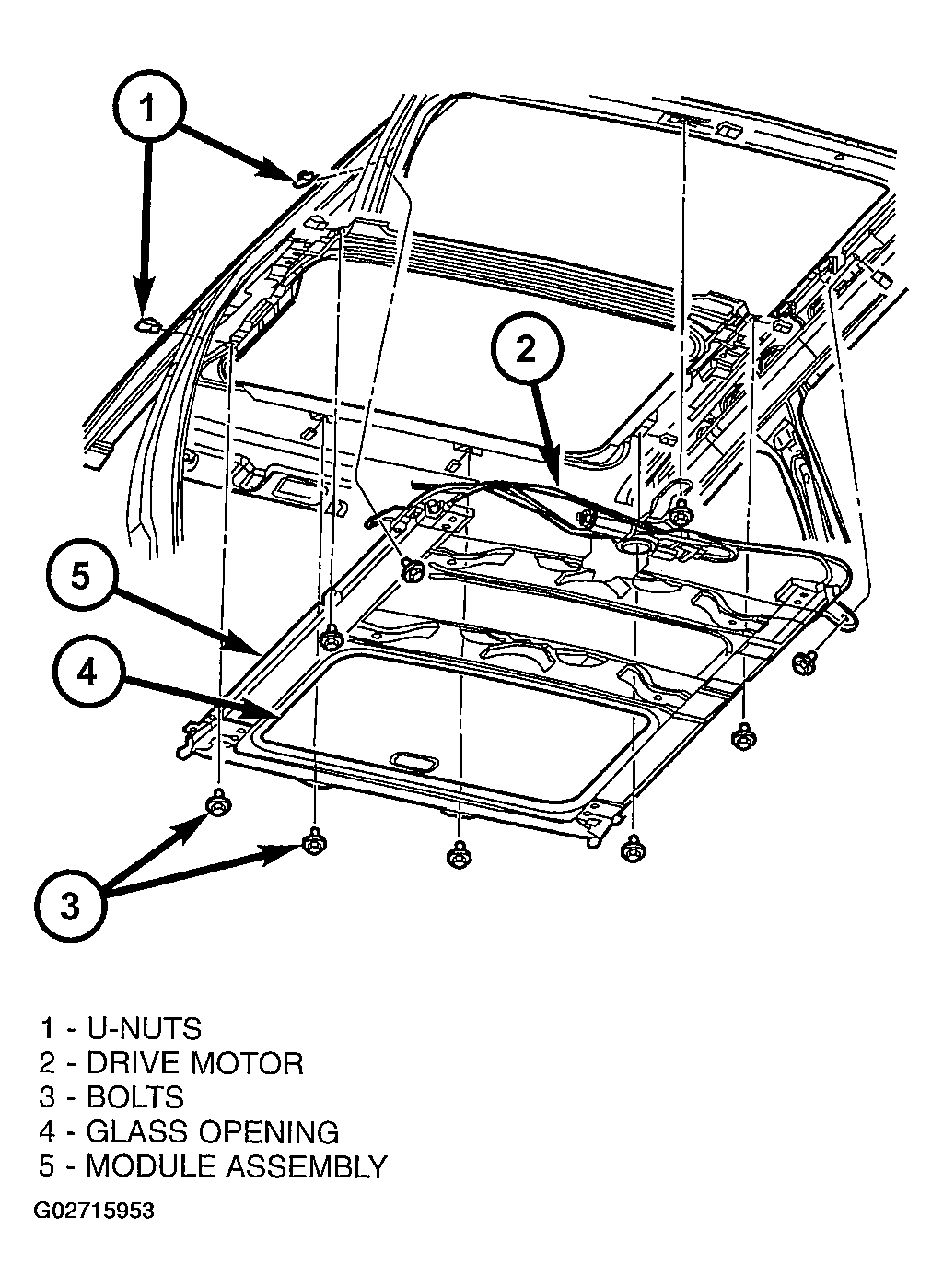

Fig 2: Removing Fasteners Attaching Module Assembly
Courtesy of DAIMLERCHRYSLER CORP.
