Control Module: Installation

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Check glass assembly position. Adjust to full closed position. Insert pin into holes in lift arm assembly to check position (Fig 1 ).

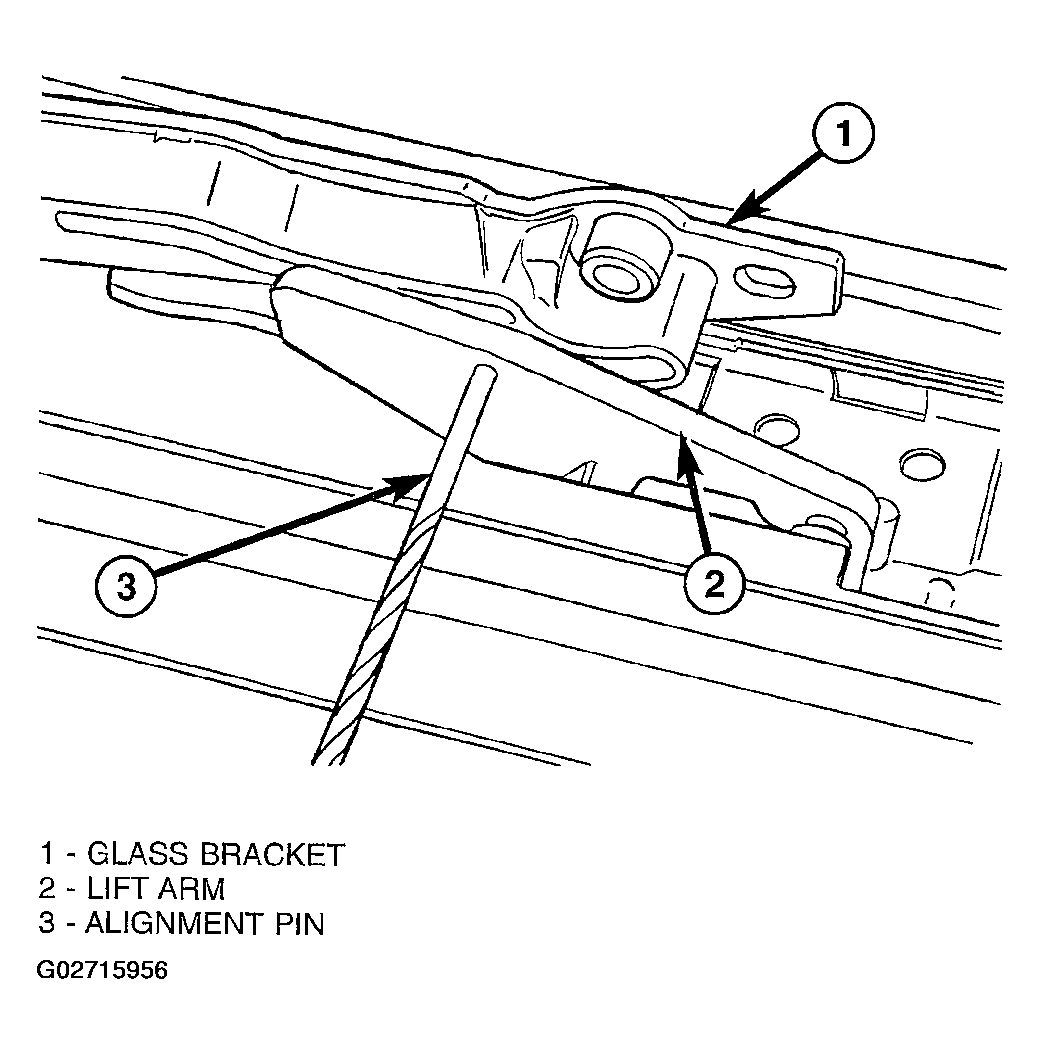

Fig 1: Identifying Lift Arm Positioning
Courtesy of DAIMLERCHRYSLER CORP.
Set new electronic module in position on top side of motor mounting bracket engaging drive cables with pinion gear in electronics module.
Install one screw to attach electronics module to motor bracket. Tighten screw to 3 N.m (27 in. lbs.) torque.
Install motor assembly to motor bracket and electronics module with three screws. Tighten screw to 1.75 N.m (15.5 in. lbs.) torque.
Remove the new module's timing pin and discard. (Fig 2 )
Connect electrical connector to module assembly wire harness. Secure any loose wires.

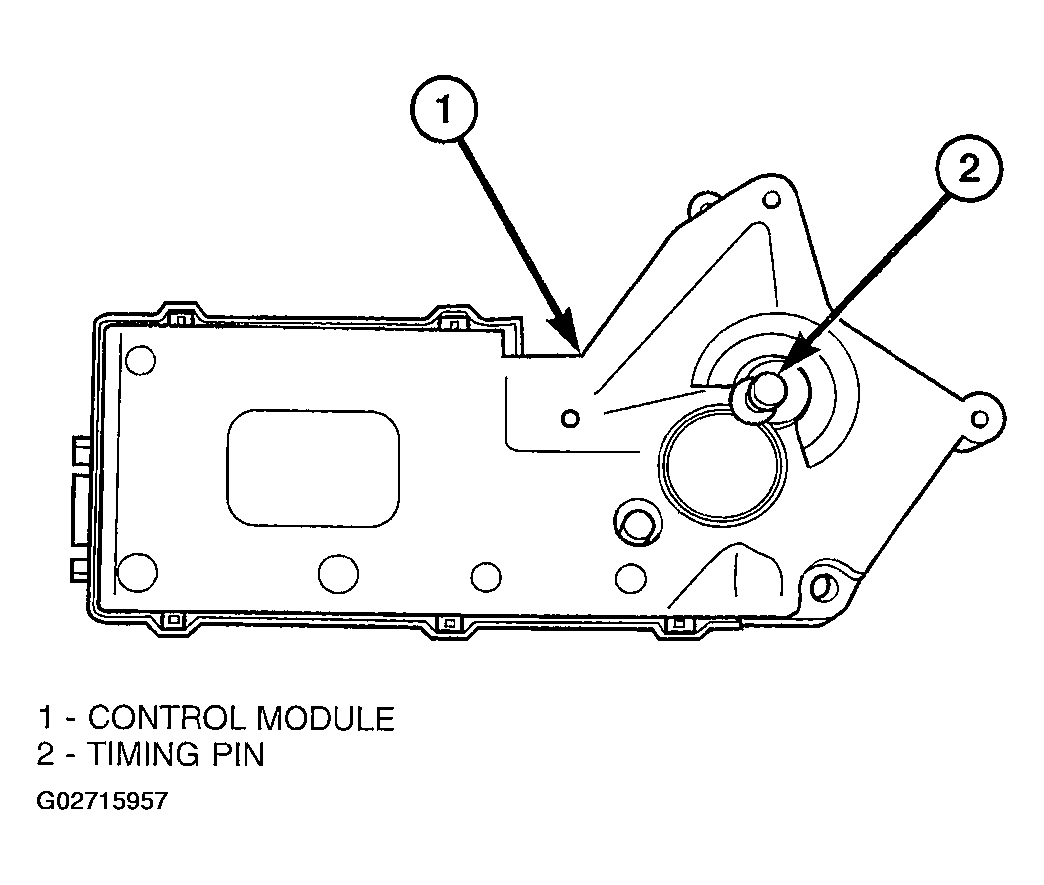

Fig 2: Locating Module Timing Pin
Courtesy of DAIMLERCHRYSLER CORP.
Install module assembly. (Refer to INSTALLATION )
Test operation, adjust as necessary. (Refer to ADJUSTMENTS )
Install opening trim lace. (Refer to INSTALLATION )
