Swing Gate: Removal

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the spare tire. (Refer to TIRES/WHEELS ).
  2. Remove the quarter trim panel. (Refer to INTERIOR ).
  3. Support the swing gate with a suitable lifting device.
  4. Disconnect the wire harness.
  5. Disconnect the check strap from the d-pillar. (Refer to REMOVAL  ).
  6. Remove the bolts and remove the swing gate. (Fig 1 )

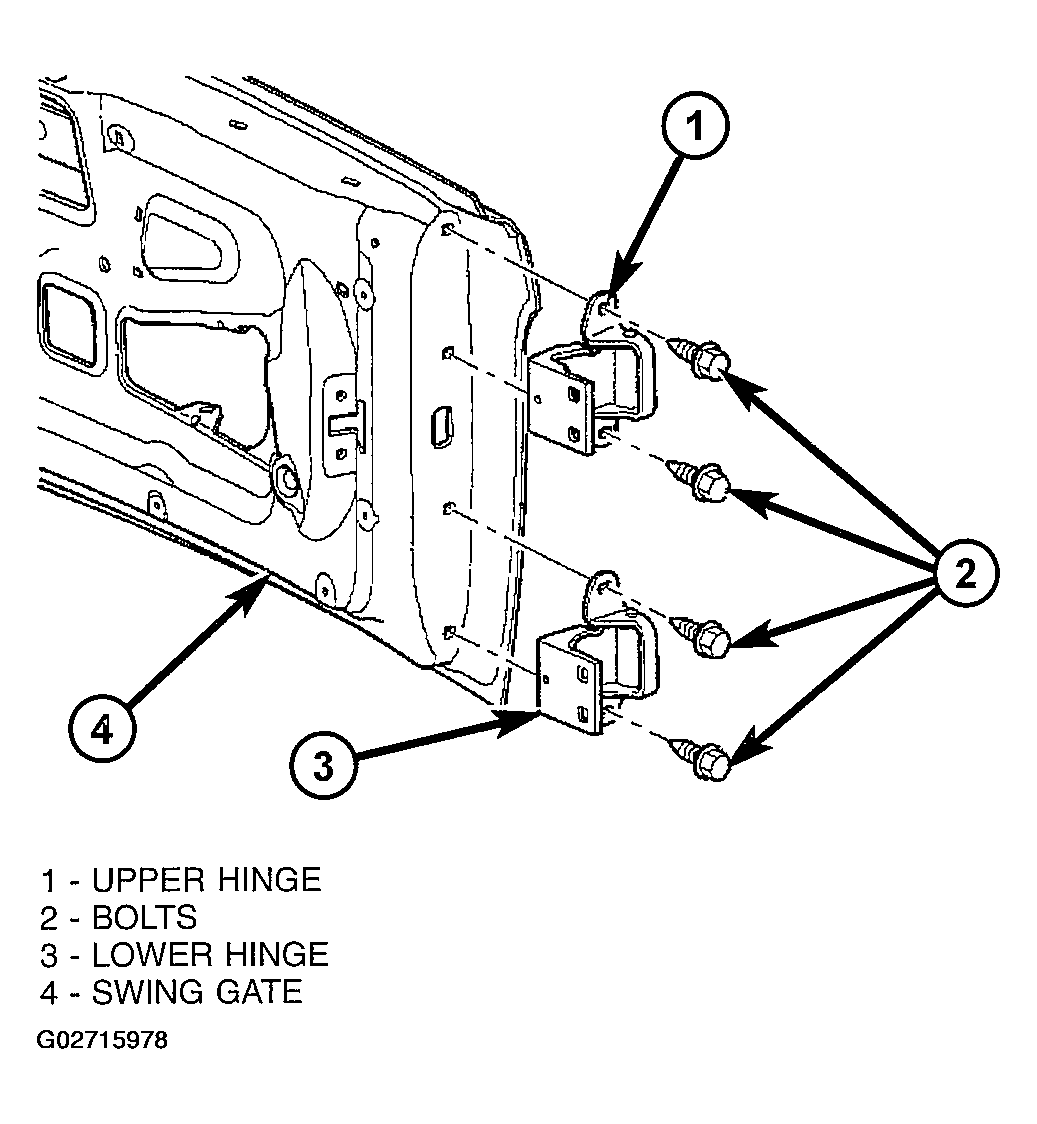

    Fig 1: Removing Swing Gate/Hinge
    G02715978Courtesy of DAIMLERCHRYSLER CORP.
