Check Strap: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the swing gate trim panel. (Refer to REMOVAL
).
- Remove the quarter trim panel. (Refer to INTERIOR
).

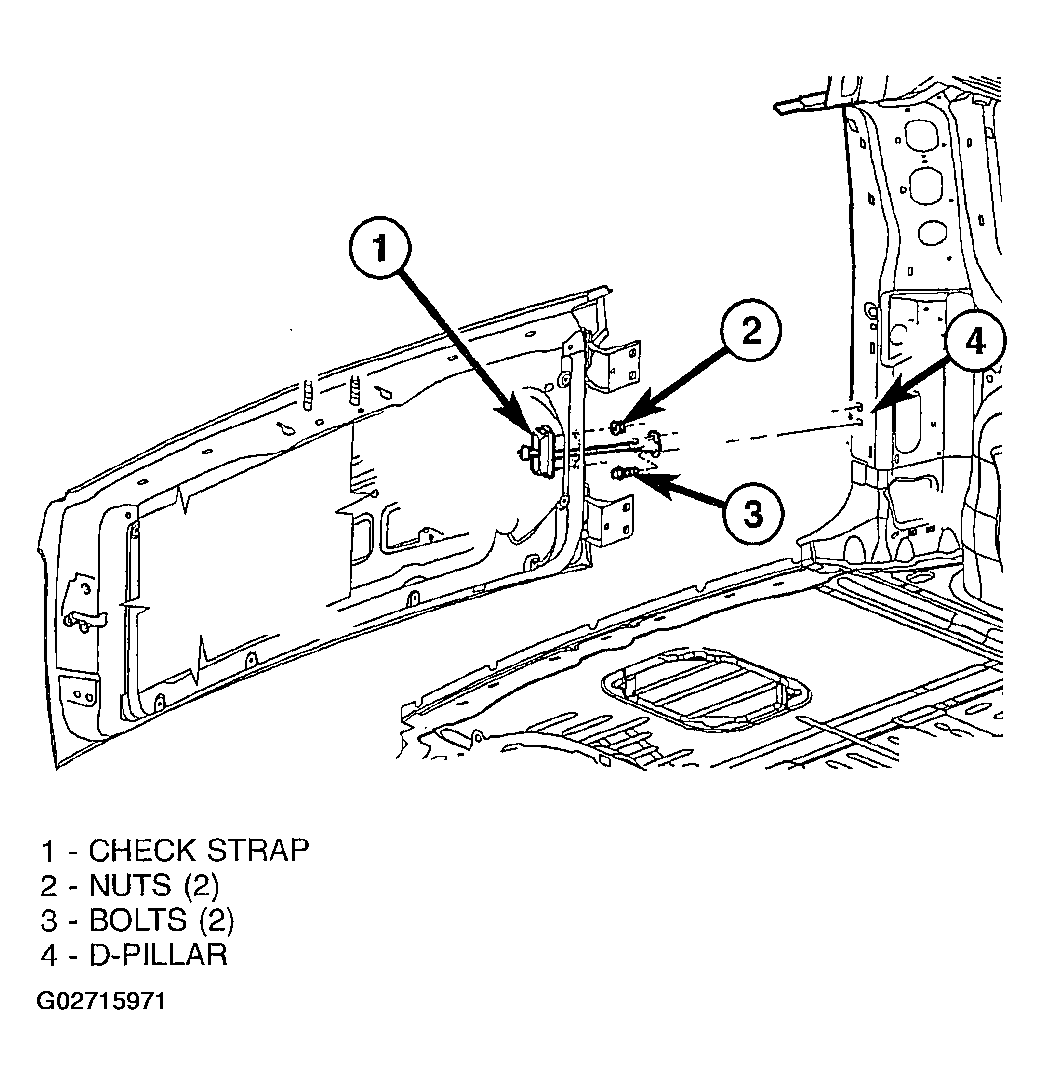

- Remove the bolts attaching the check strap to the d-pillar. (Fig 1
)
- Peel back the waterdam.
- Remove the nuts and remove the check strap from the swing gate.
Courtesy of DAIMLERCHRYSLER CORP.
