Section 105 (Swing Gate): Hinge: Removal
WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the swing gate. (Refer to REMOVAL
).
- Using a grease pencil or equivalent, mark the original location of the hinges to aid installation.

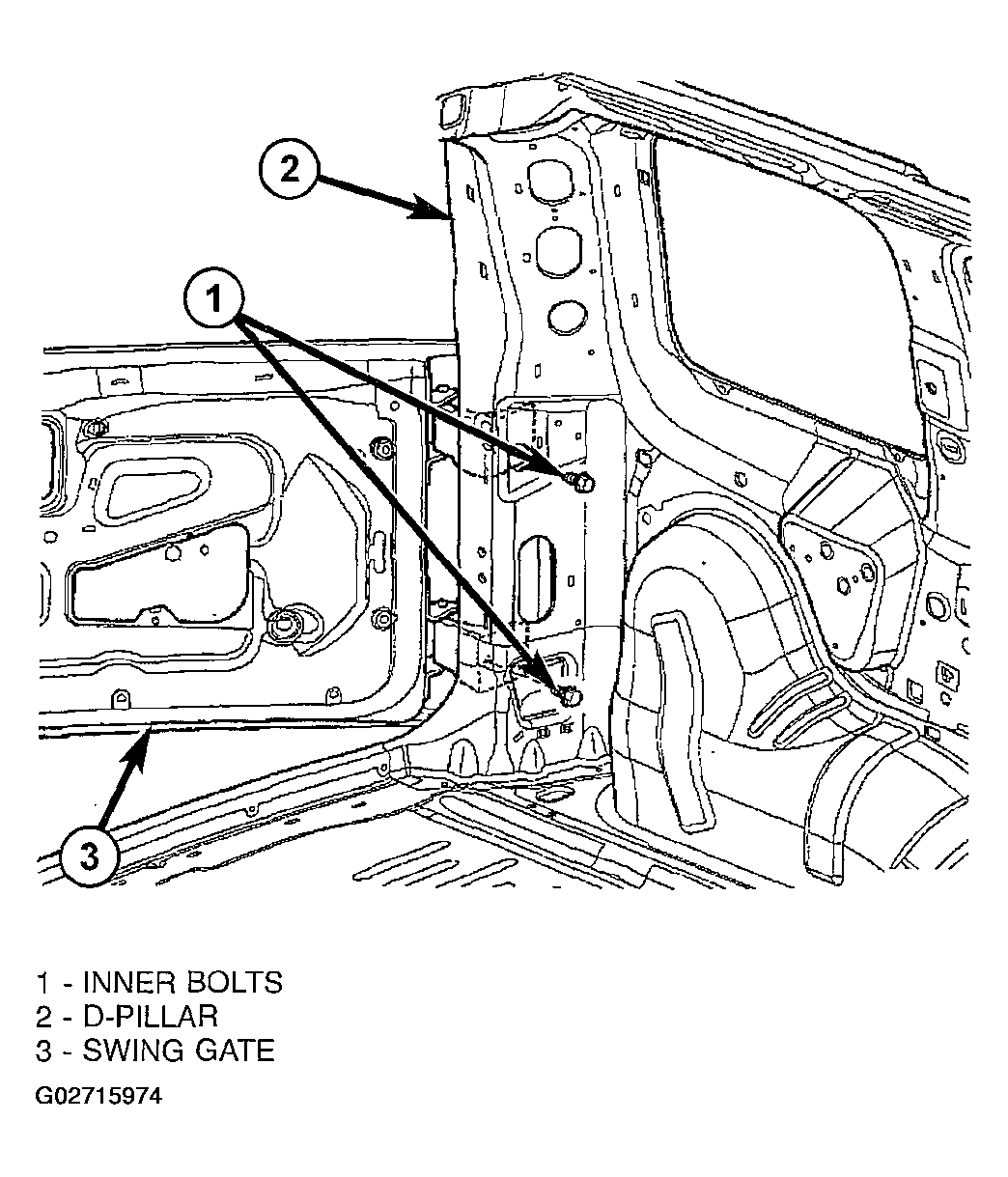

- Remove the bolts from inside the quarter panel. (Fig 1
)
Courtesy of DAIMLERCHRYSLER CORP.

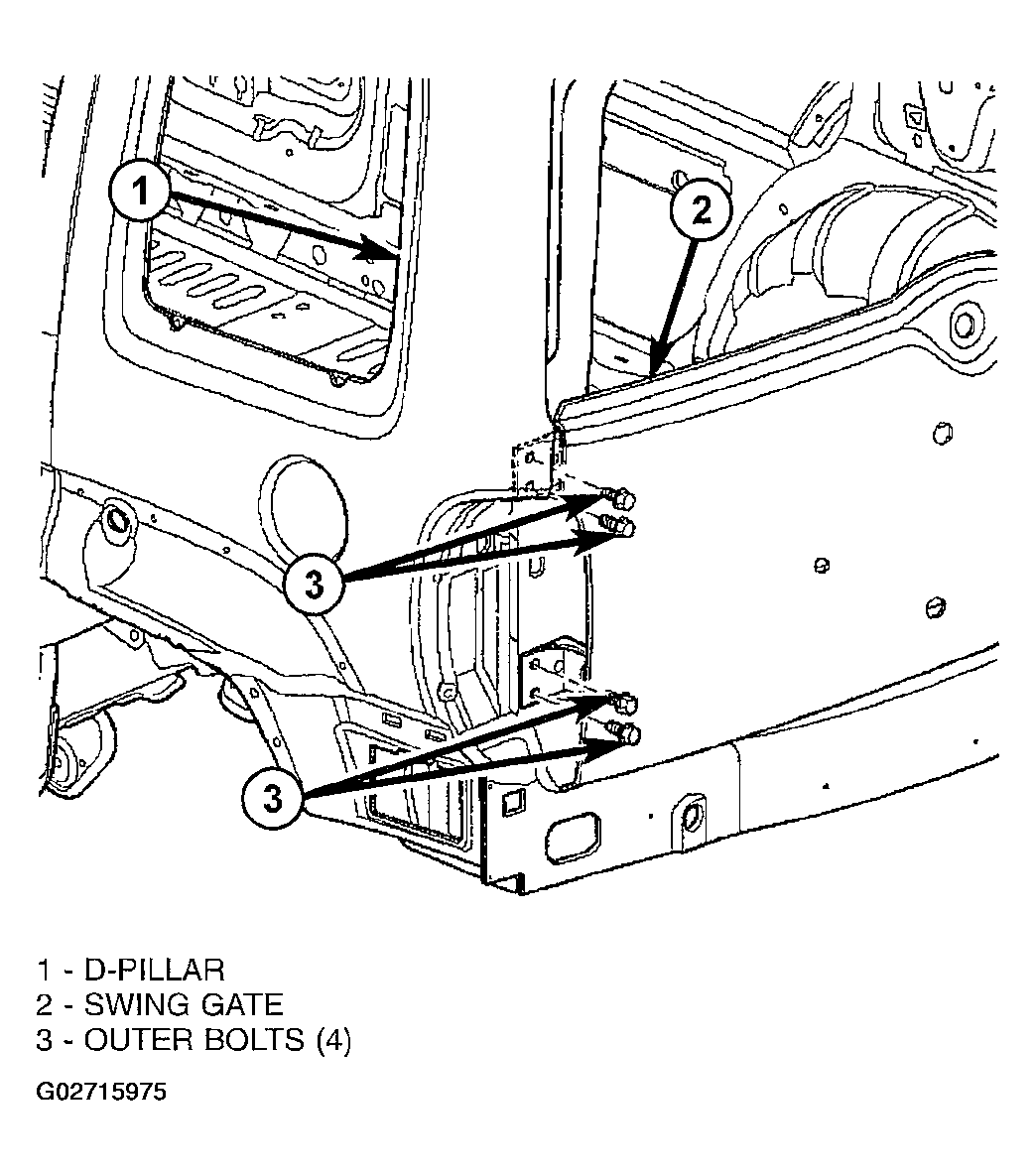

- Remove the outer hinge bolts and remove the hinges. (Fig 2
)
Courtesy of DAIMLERCHRYSLER CORP.
