Section 105 (Swing Gate): Hinge: Installation

WARNING: This page is about a different car, the 2003 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Install the hinges and install the inner and outer fasteners.
Tighten the outer fasteners to 31 N.m (23 ft. lbs.) using the sequence indicated. (Fig 1 )

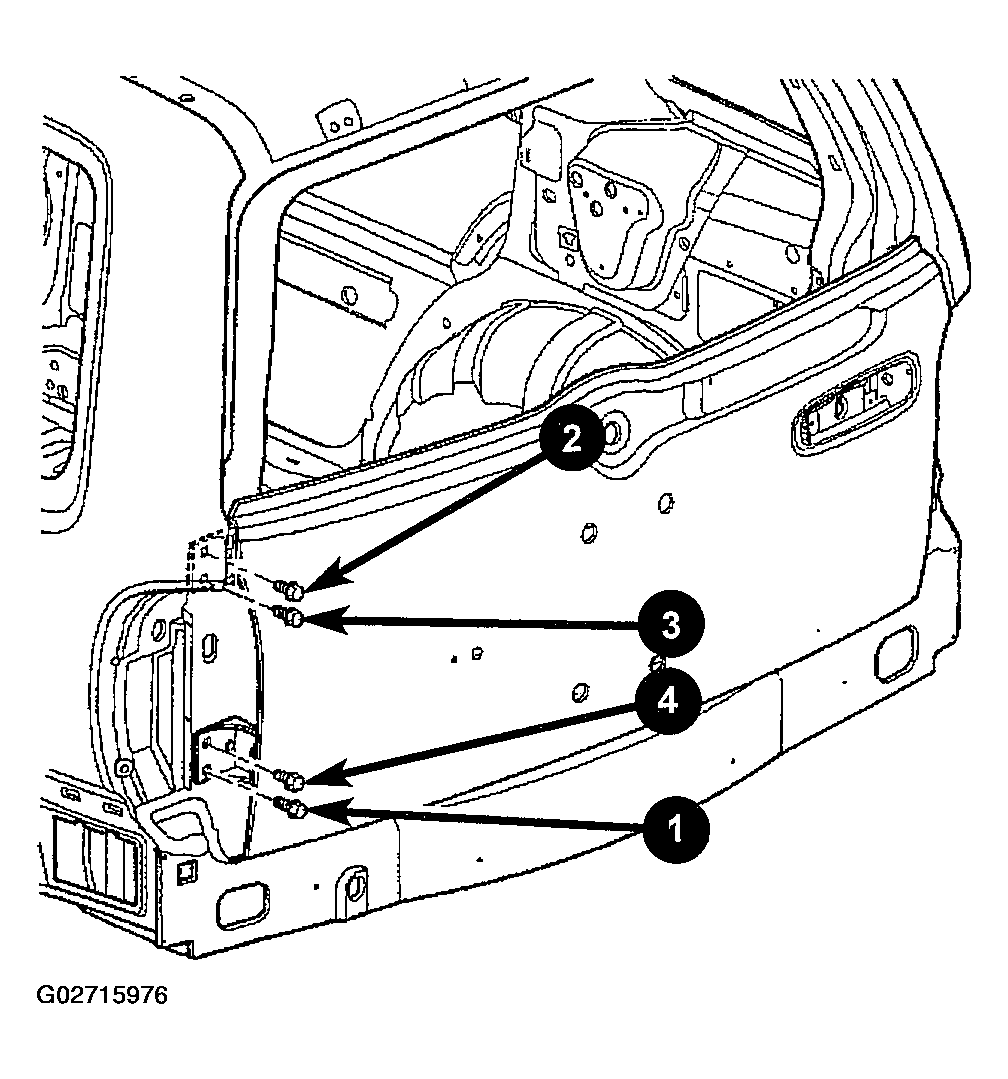

Fig 1: Tightening Sequence Of Hinge Outer Bolts
Courtesy of DAIMLERCHRYSLER CORP.
Tighten the inner fasteners to 31 N.m (23 ft. lbs.) using the sequence indicated. (Fig 2 )
Install the swing gate. (Refer to INSTALLATION ).

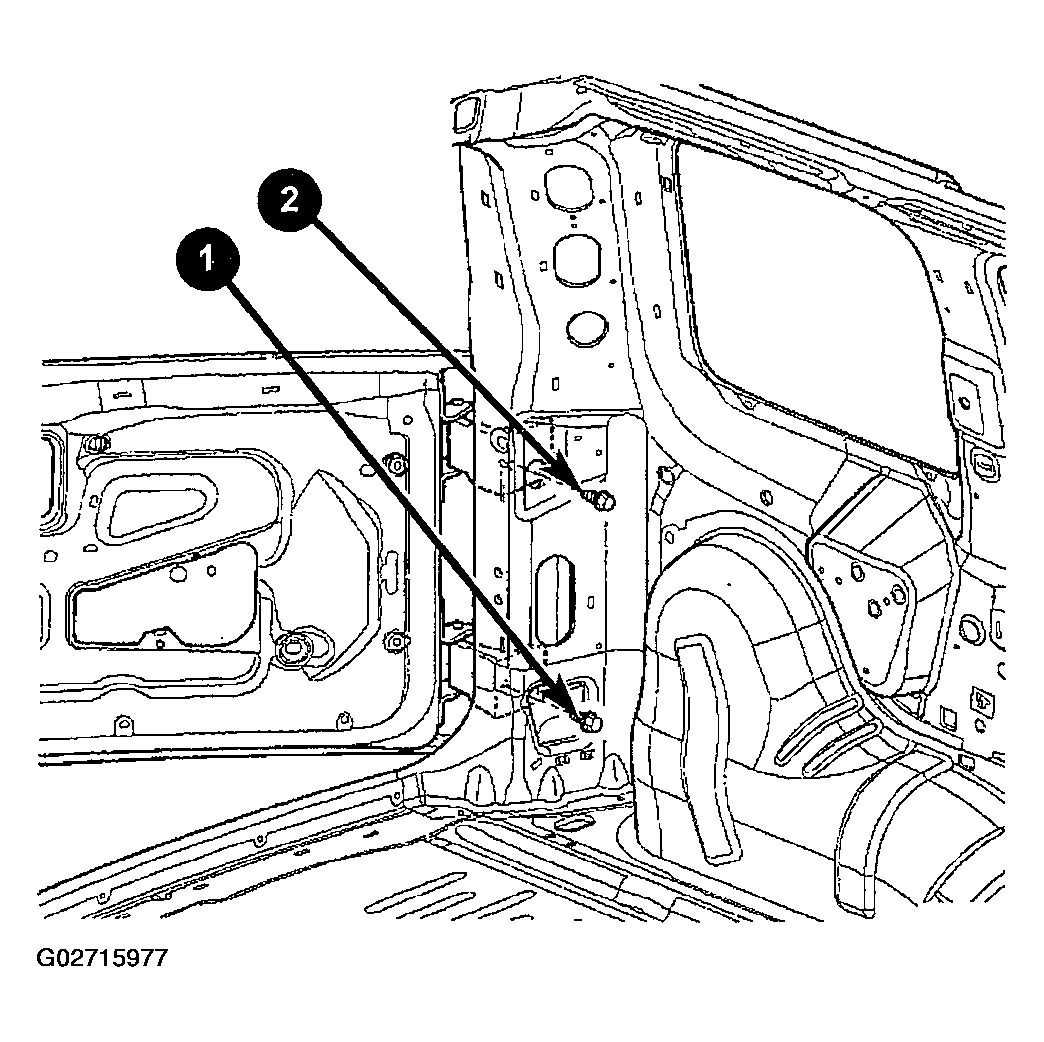

Fig 2: Tightening Sequence Of Hinge Inner Bolts
Courtesy of DAIMLERCHRYSLER CORP.
