Removal & Installation

  1. Remove fuel tank. See FUEL TANK  . Release clamp, and disconnect evaporative breather hose. See Fig 1 . Using Lock Ring Wrench (JD-174), remove locking ring from evaporative flange.
  2. Reposition flange to access fuel pump wiring harness connector, and disconnect connector. Disconnect fuel hoses from fuel pump. Remove tie wrap from pump mounting rubber.
  3. Using a twisting motion, lift and remove fuel pump. To install, reverse removal procedure. Ensure pump is fully seated in mounting bracket inside fuel tank.

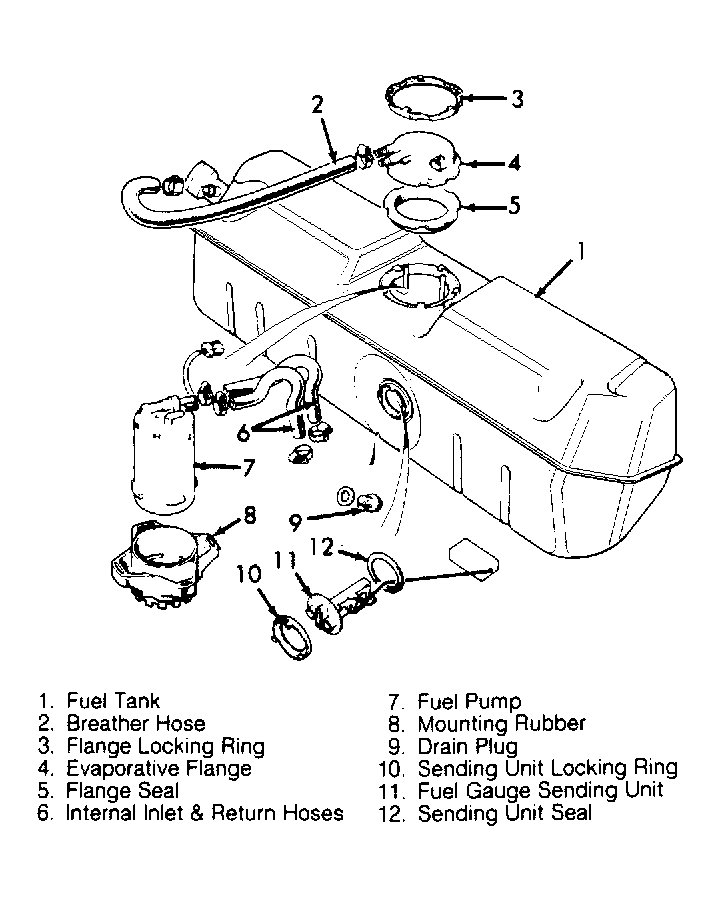

Fig 1: Identifying Fuel Pump & Components (Typical)
G91B17146Courtesy of JAGUAR CARS LTD.
