Chart 1: Cruise Control Power Source Circuit

For testing procedure, see Fig 1and Fig 2 . See CONNECTOR IDENTIFICATION  and WIRING DIAGRAMS .

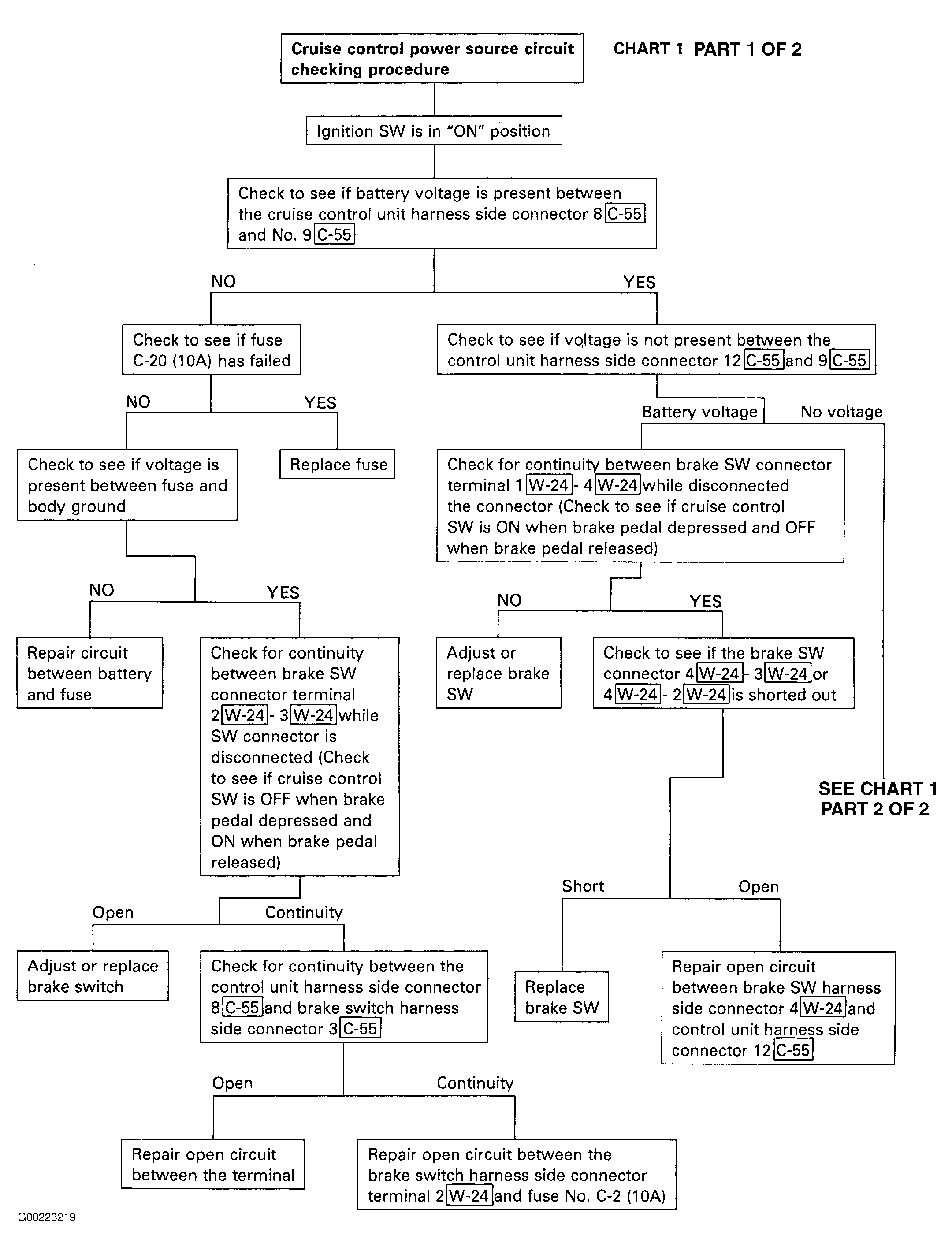

Fig 1: Chart 1: Cruise Control Power Source Circuit (1 Of 2)

Courtesy of ISUZU MOTOR CO.

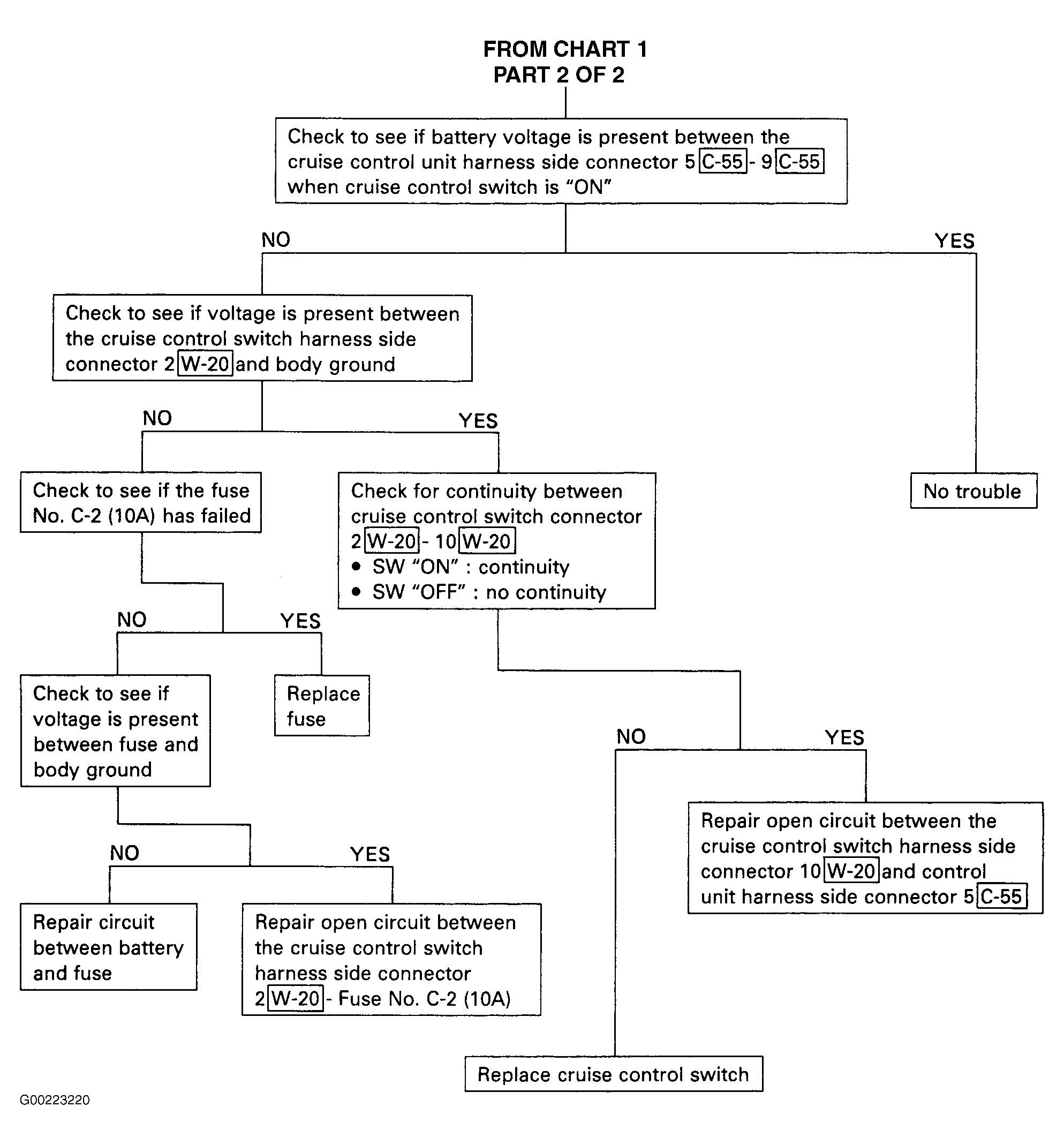

Fig 2: Chart 1: Cruise Control Power Source Circuit (2 Of 2)

Courtesy of ISUZU MOTOR CO.
