Isuzu
>>
1992
>>
Stylus RS
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Connector Identification
Connector Identification

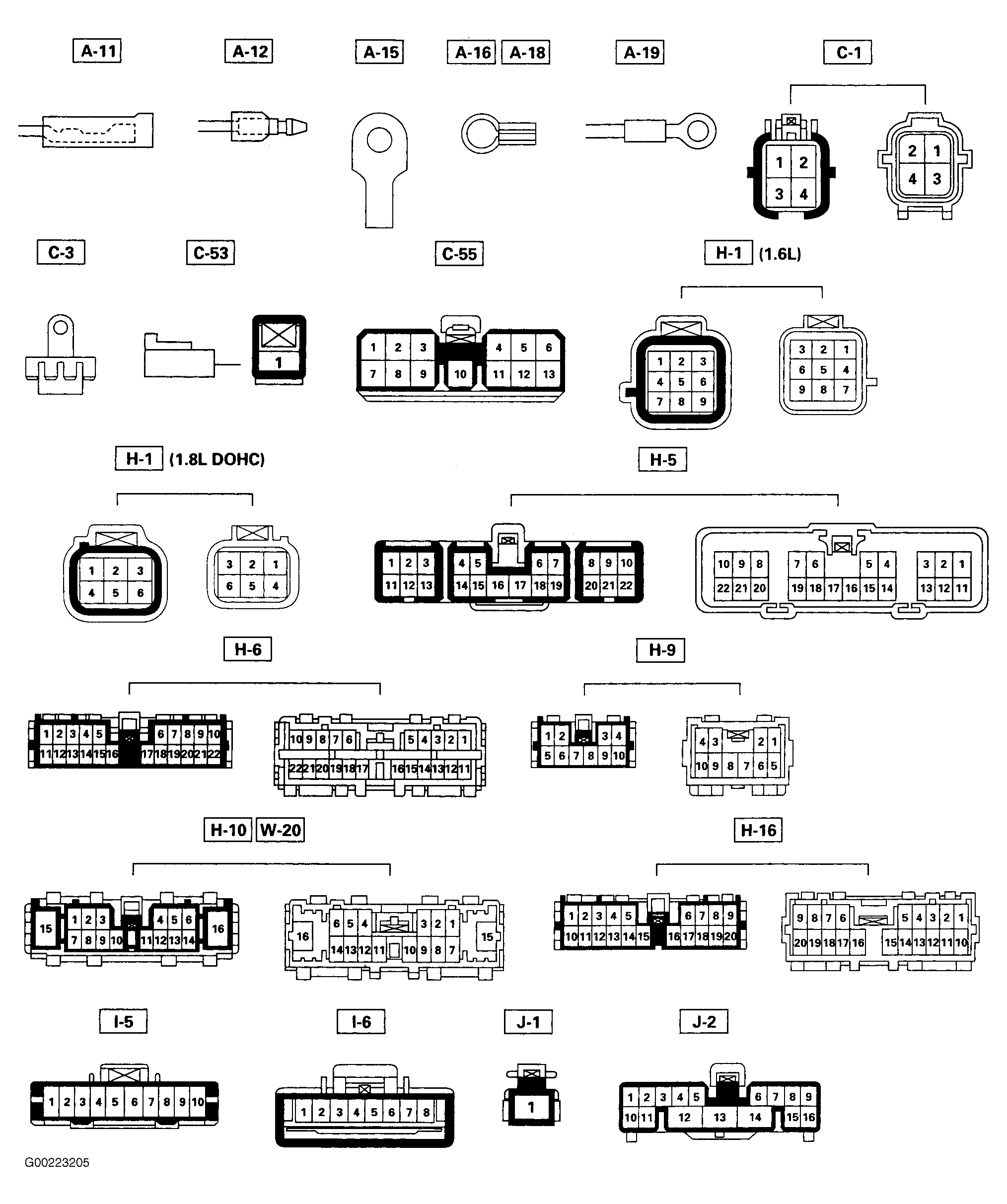

Fig 1: Cruise Control Connector Identification (1 Of 2)
Courtesy of ISUZU MOTOR CO.

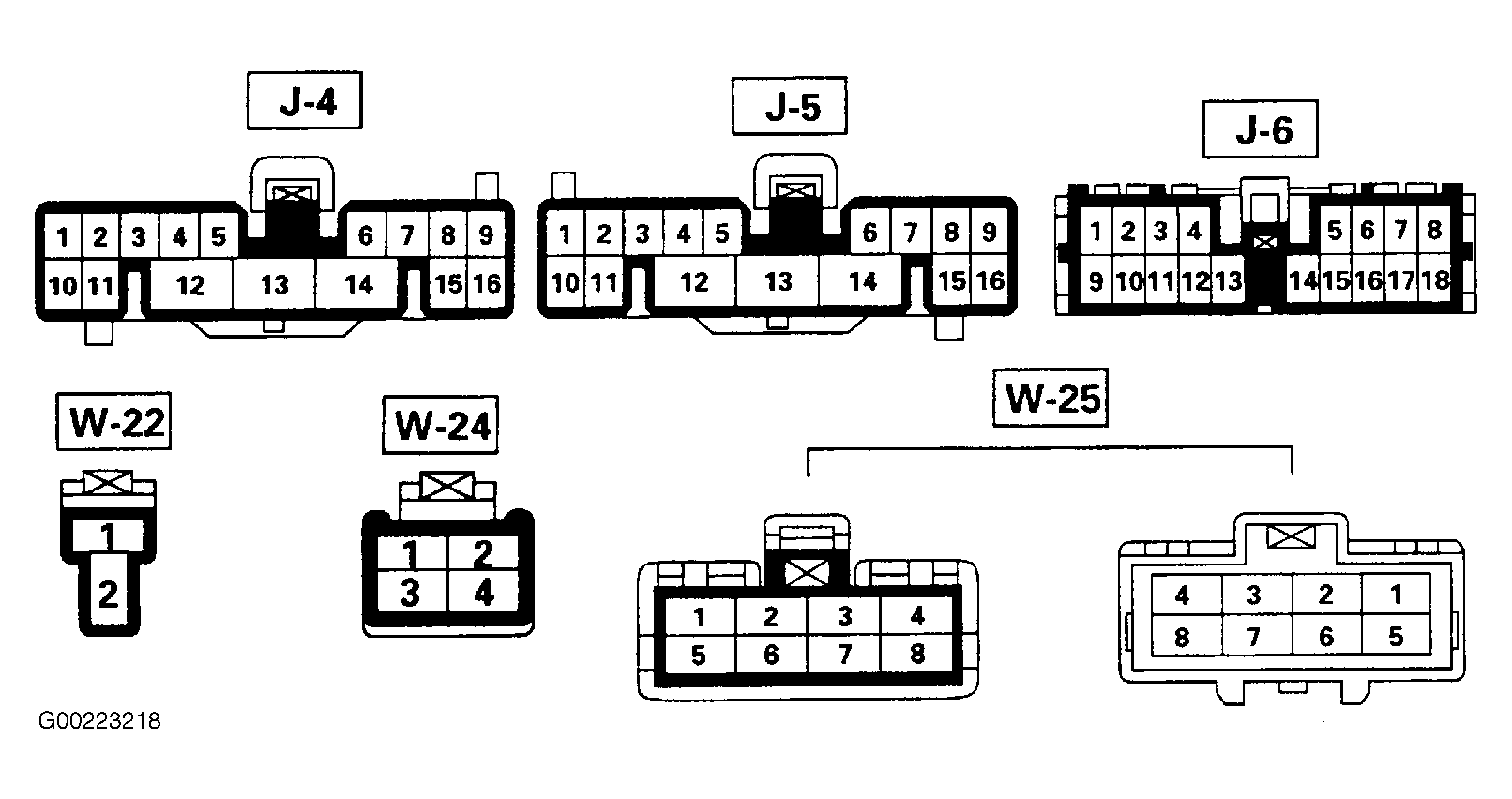

Fig 2: Cruise Control Connector Identification (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
