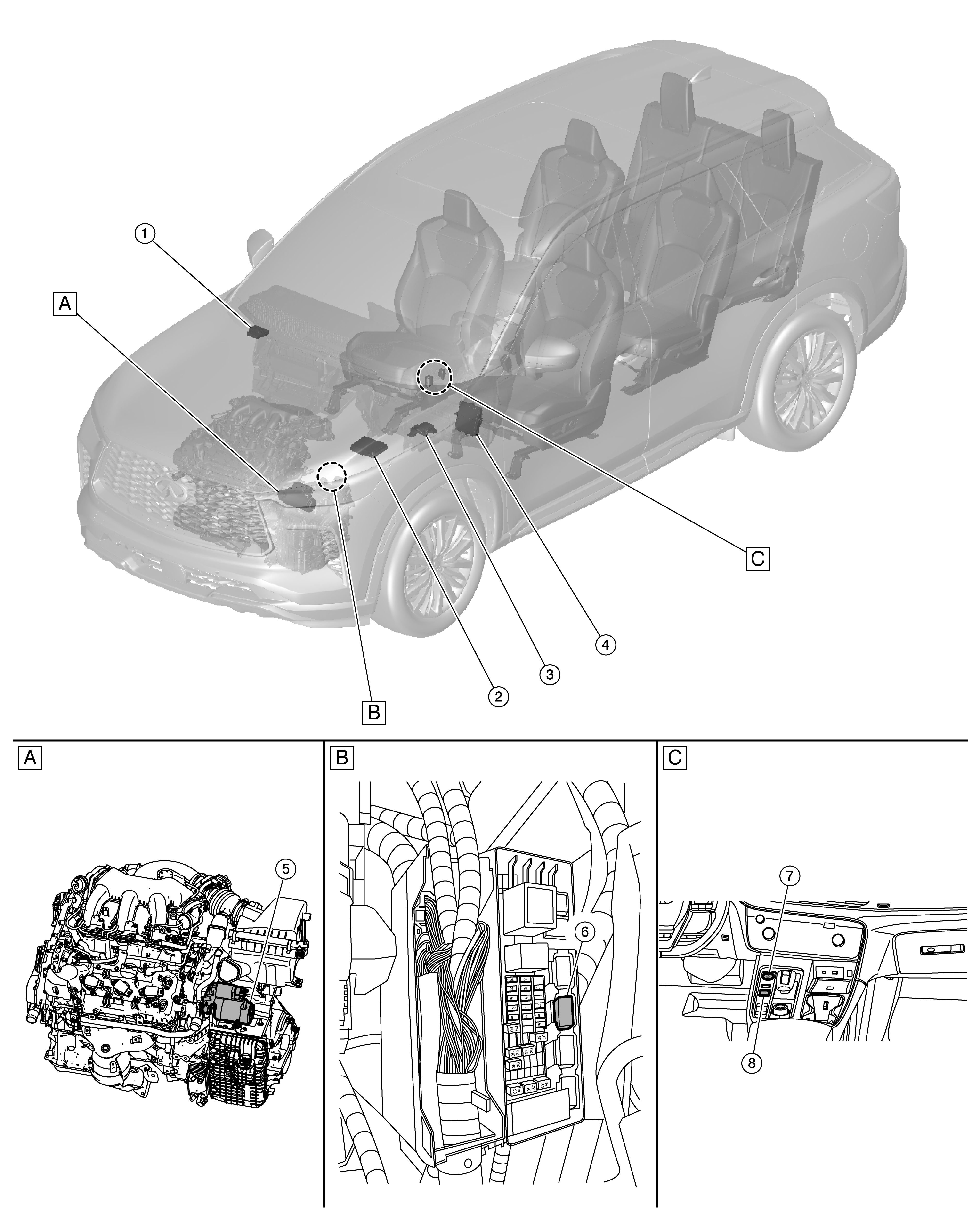

| 1. |
Intelligent Key unit |
Intelligent Key unit transmits key signal to the BCM. Refer to
Component Location
for detailed component location. |
| 2. |
IPDM E/R (Intelligent Power Distribution Module Engine Room) |
CPU inside IPDM E/R controls starter relay. Starter relay is built into the IPDM E/R. Refer to
System Description
. |
| 3. |
Electric shift control module |
Electric shift control module supplies power to the starter relay inside IPDM E/R when the lever is shifted to the "P" or "N" position. Refer to
Electric Shift Control Module
for detailed component location. |
| 4. |
BCM (Body Control Module) |
BCM controls starter cut relay. Refer to
System Description
. |
| 5. |
Starter motor |
Refer to Starter Motor . |
| 6. |
Starter cut relay and direct fuel injector relays 1 and 2 (starter cut relay) |
Power is supplied to the starter cut relay with BCM control. |
| 7. |
Push-button ignition switch |
Supplies ignition switch status to the Intelligent Key unit. |
| 8. |
Stop/start off switch (If equipped) |
Sends signal to BCM to shut off the idle stop system. Refer to
Stop/Start Off Switch . |
