Electric Shift Control Module
FUNCTIONS WITHIN THE SYSTEM
Electric shift control module actuates the shift actuator according to the signals transmitted from electric shift sensor, P position switch and various ECUs.
INDIVIDUAL FUNCTION WITHIN SYSTEM
- Electric shift control module consists of the microcomputer and input/output connectors for signal and power supply.
- Electric shift control module includes a self-diagnosis function for simplifying trouble diagnosis.
INDIVIDUAL OPERATION
Electric shift control module controls electric shift system.

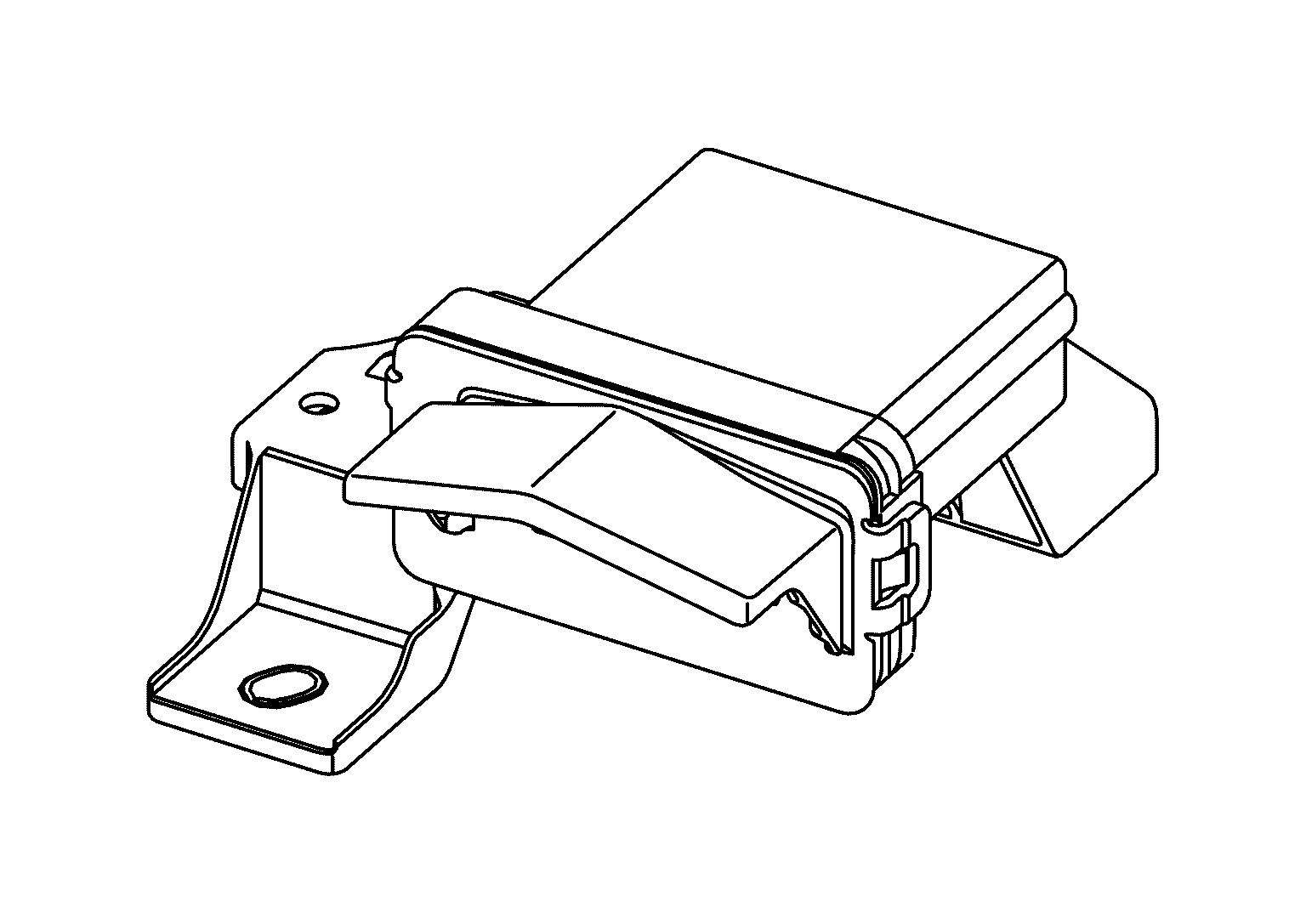

COMPONENT LOCATION
Electric shift control module is installed below the center console.
