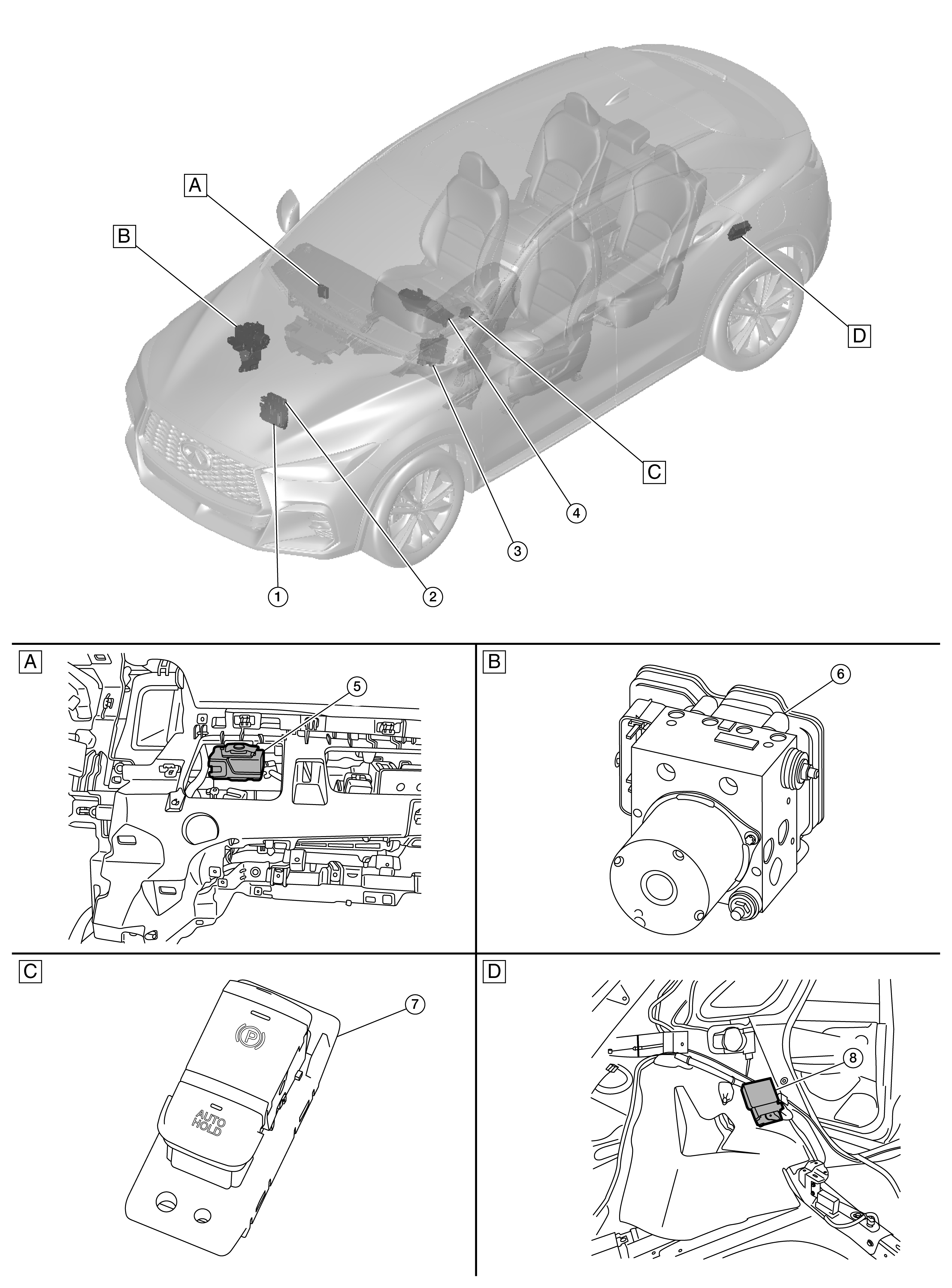

Component Location
| A. | Right hand side of Instrument panel above glove box(view with instrument panel removed) | B. | Engine room (RH side) (view with component removed from vehicle) | C. | Center console(view with component removed from vehicle) |
| D. | Left rear of vehicle(view with luggage side lower finisher (LH) removed) |
| No. | Component | Function |
|---|---|---|
| 1. | TCM (Transmission Control Module) | Mainly transmits the following signals to chassis control module via CAN communication:
Refer to Component Location for detailed component location. |
| 2. | ECM (Engine Control Module) | Mainly transmits the following signal to chassis control module via CAN communication:
Refer to Component Location for detailed component location. |
| 3. | BCM Body Control Module) | Mainly transmits the following signal to chassis control module via CAN communication:
Refer to Component Location for detailed component location. |
| 4. | Combination meter | Mainly transmits the following signal to chassis control module via CAN communication:
Mainly receives the following signals from chassis control module via CAN communication:
Refer to Component Location for detailed component location. |
| 5. | Chassis Control Module | Refer to Chassis Control Module . |
| 6. | ABS (Anti-lock Braking System) actuator and electric unit (control unit) | Refer to Component Location . |
| 7. | Electric Parking Brake Switch (Automatic Brake Hold Switch) | Refer to Electric Parking Brake Switch . |
| 8. | Electric Parking Brake Control Module | Mainly transmits the following signals to chassis control module via CAN communication:
Refer to Electric Parking Brake Switch (Automatic Brake Hold Switch) for detailed component location. |
