Component Location

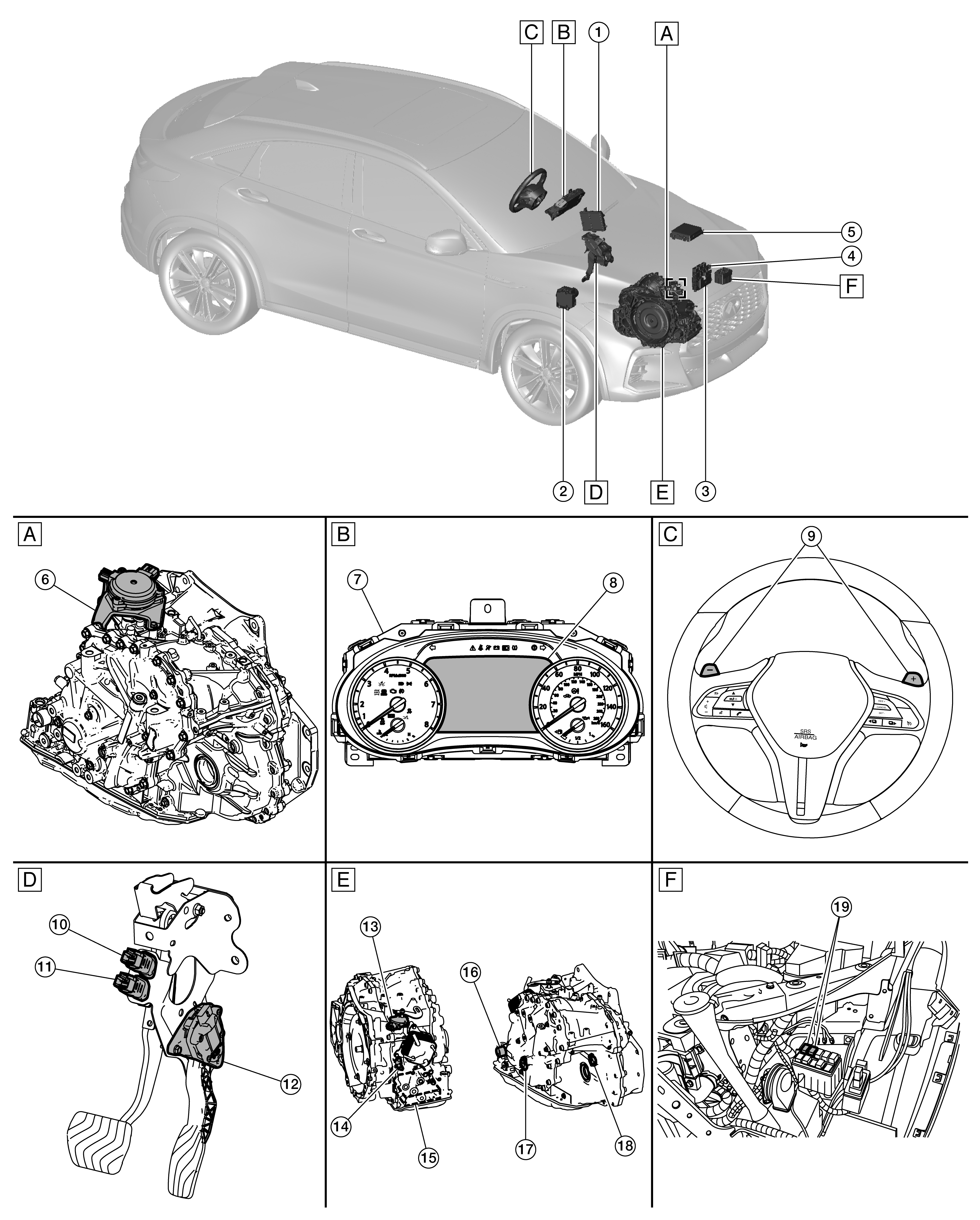

VEHICLE SIDE

GNSDB140276Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL BCM (view with combination meter removed). Refer to Component Location . SYMBOL ABS actuator and electronic unit (control unit). Refer to Component Location . SYMBOL TCM
SYMBOL ECM. Refer to Component Location . SYMBOL IPDM E/R. Refer to Removal and Installation . SYMBOL Electric shift actuator
SYMBOL Combination meter. Refer to Removal and Installation . SYMBOL Shift position indicator SYMBOL Paddle shifter
SYMBOL Brake pedal position switch SYMBOL Stop lamp switch SYMBOL Accelerator pedal position switch
SYMBOL Transmission range switch SYMBOL Input speed sensor SYMBOL Control valve
SYMBOL CVT unit connector SYMBOL Primary speed sensor SYMBOL Output speed sensor
SYMBOL Shift actuator relays
SYMBOL Top of transaxle assembly SYMBOL Instrument panel LH SYMBOL Steering wheel
SYMBOL Brake pedal periphery SYMBOL Side of transaxle assembly SYMBOL Left front of vehicle

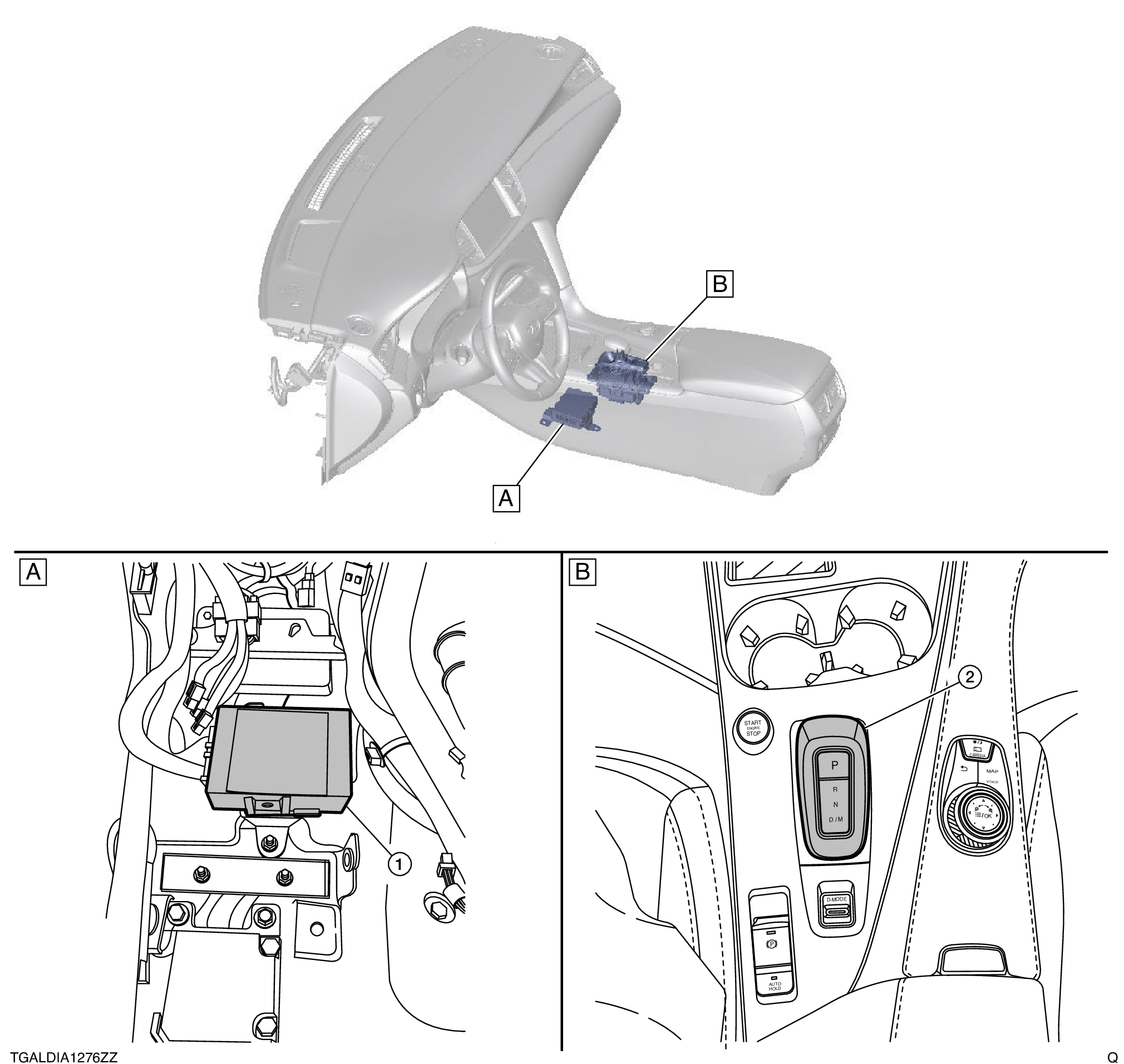

GNSDB140330Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Electric shift control module SYMBOL Electric shift selector
SYMBOL Center console floor area SYMBOL Shift selector area
