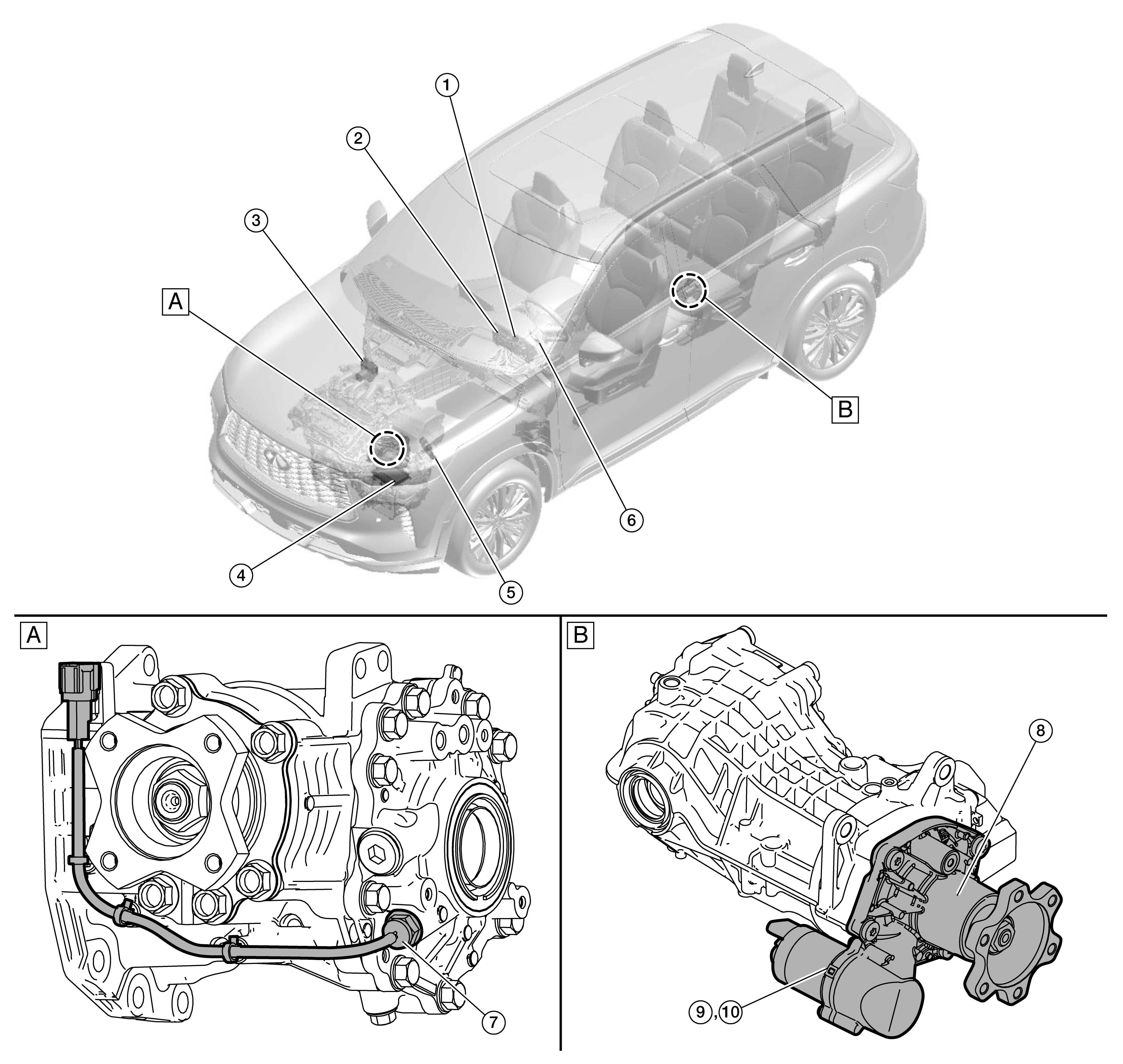

Component Location
|
A. |
Transfer case assembly |
B. |
Rear final drive assembly |
|
No. |
Component |
Function |
|
1. |
Drive mode switch |
Refer to Drive Mode Switch . |
|
2. |
Combination meter [AWD (All-Wheel Drive) warning icon/display] |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to System Description Refer to Component Location for detailed component location. |
|
3. |
ABS (Anti-lock Braking System) actuator and electric unit (control unit) |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to System Description |
|
4. |
ECM (Engine Control Module) |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to System Description Refer to For the engine related component parts, refer to Component Location for detailed installation location. |
|
5. |
TCM (Transmission Control Module) |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to System Description Refer to Component Location for detailed installation location. |
|
6. |
Steering angle sensor |
Transmits/receives the signals for control of AWD system via CAN communication line to/from AWD control unit. For transmitting/receiving mainly signals, refer to System Description Refer to Steering Angle Sensor . |
|
7. |
Transfer oil temperature sensor |
Transmits transfer oil temperature to the AWD control unit Refer to Transfer Oil Temperature Sensor . |
|
8. |
Electro-hydraulic coupling |
Refer to Electro-hydraulic Coupling . |
|
9. |
AWD control unit (Integrated with actuator assembly) |
Refer to AWD Control Unit . |
|
10. |
Actuator assembly |
Integrated into the AWD control unit and engages rear differential. |
