AWD Control Unit

Courtesy of NISSAN NORTH AMERICA, INC.

Controls driving force distribution by signals from each sensor from front wheel driving mode (100:0) to 4-wheel driving mode (50:50).
Front wheel driving conditions is available by fail-safe function if malfunction is detected in AWD system. For fail-safe, refer to Fail-Safe .

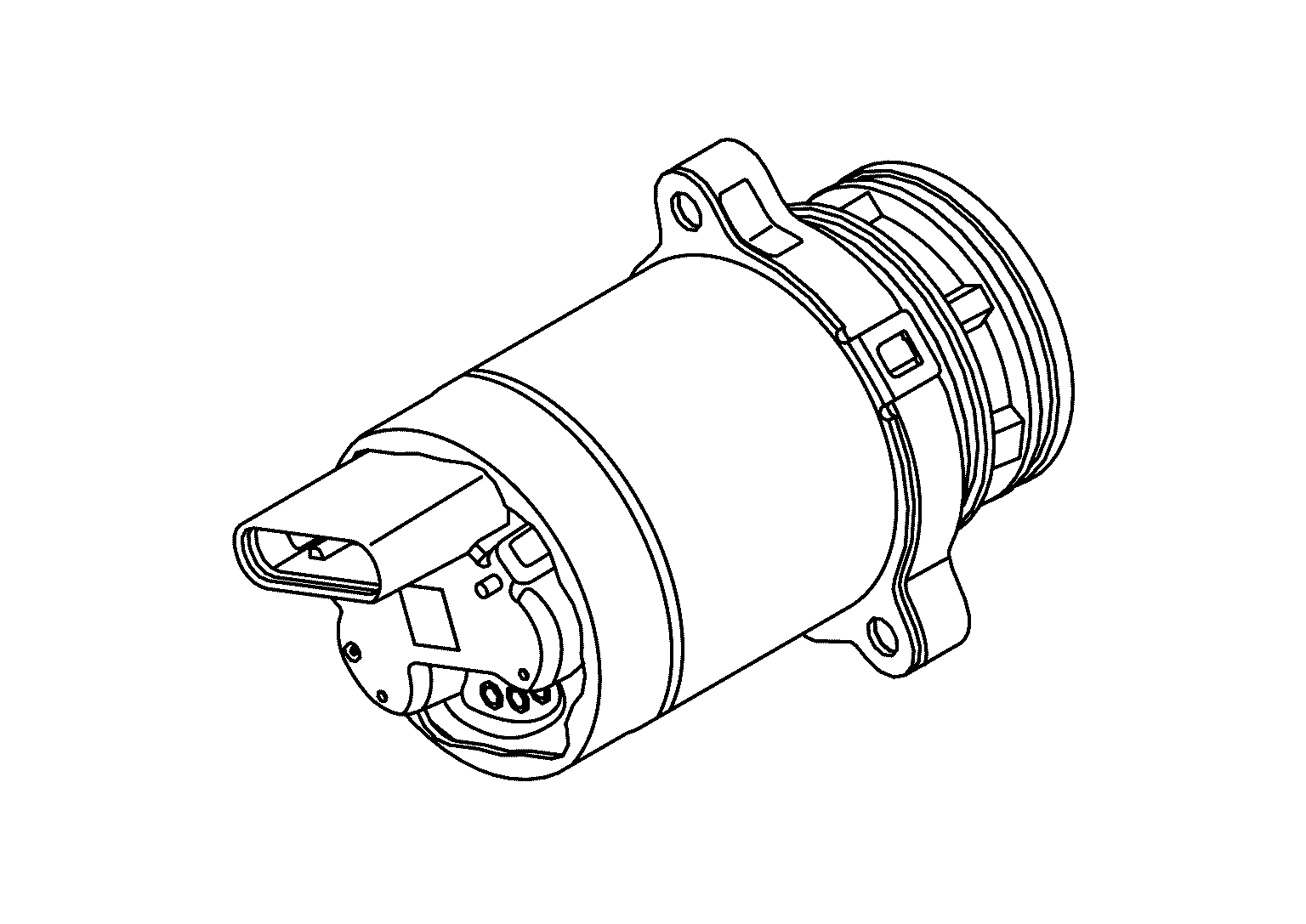

AWD control unit is integrated with actuator assembly of electro-hydraulic coupling assembly. For installation location of actuator assembly, refer to Component Location .
