Home >> Infiniti >> 2022 >> QX60 Autograph, AWD >> Repair and Diagnosis >> Engine Mechanical >> Fuel System >> Removal And Installation >> EVAP Canister >> Exploded View >> For Mexico

For Mexico

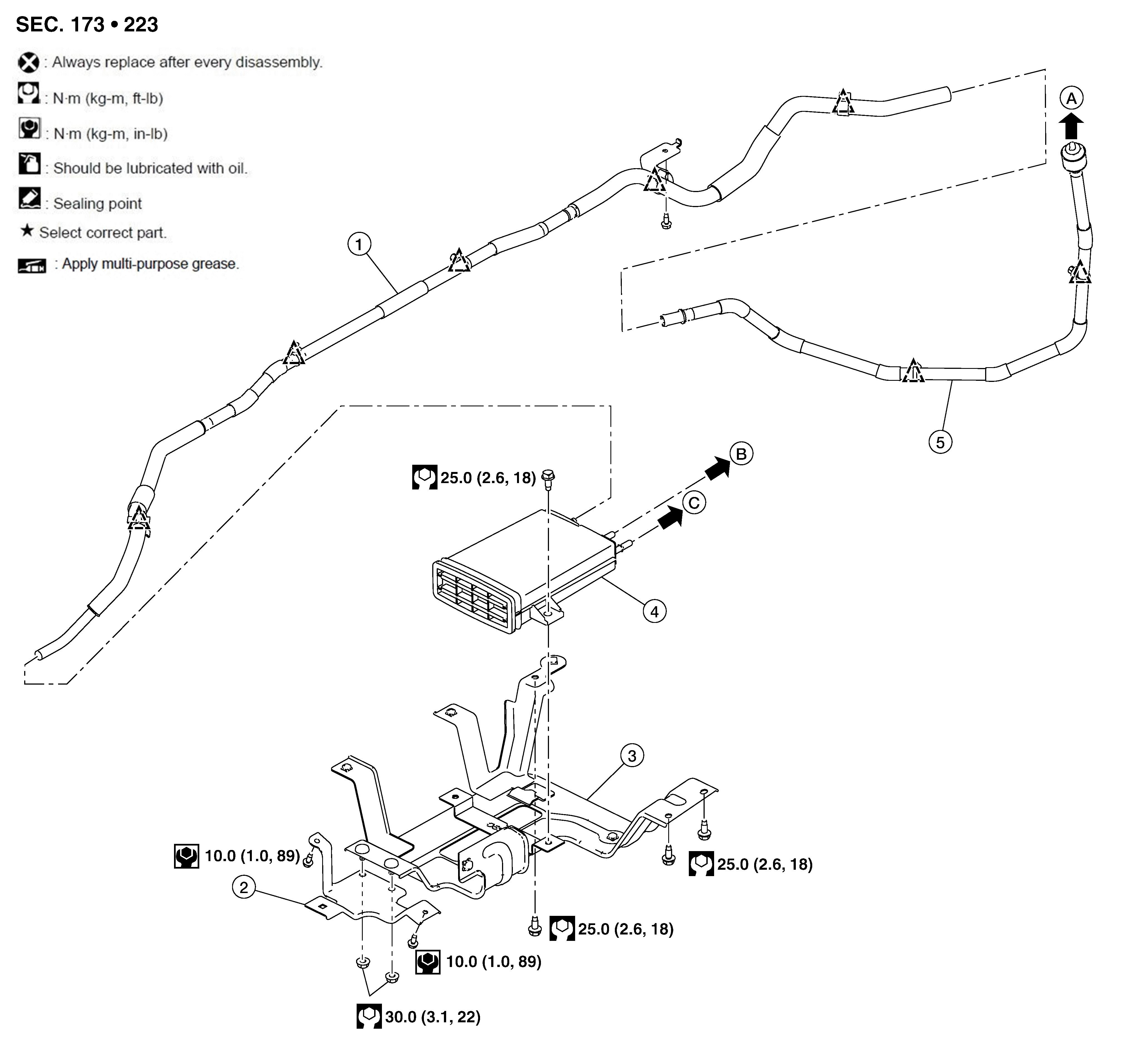

Fig 1: EVAP Canister With Torque Specifications
GNSDB17908Courtesy of NISSAN NORTH AMERICA, INC.

1.

EVAP canister hose

2.

EVAP canister bracket A

3.

EVAP canister bracket B

4.

EVAP canister

5.

EVAP canister hose

A.

To fuel filler tube. Refer to Exploded View .

B.

To EVAP vent tube. Refer to Exploded View .

C.

To EVAP vacuum delay valve. Refer to Exploded View .

 SYMBOL

Clip
