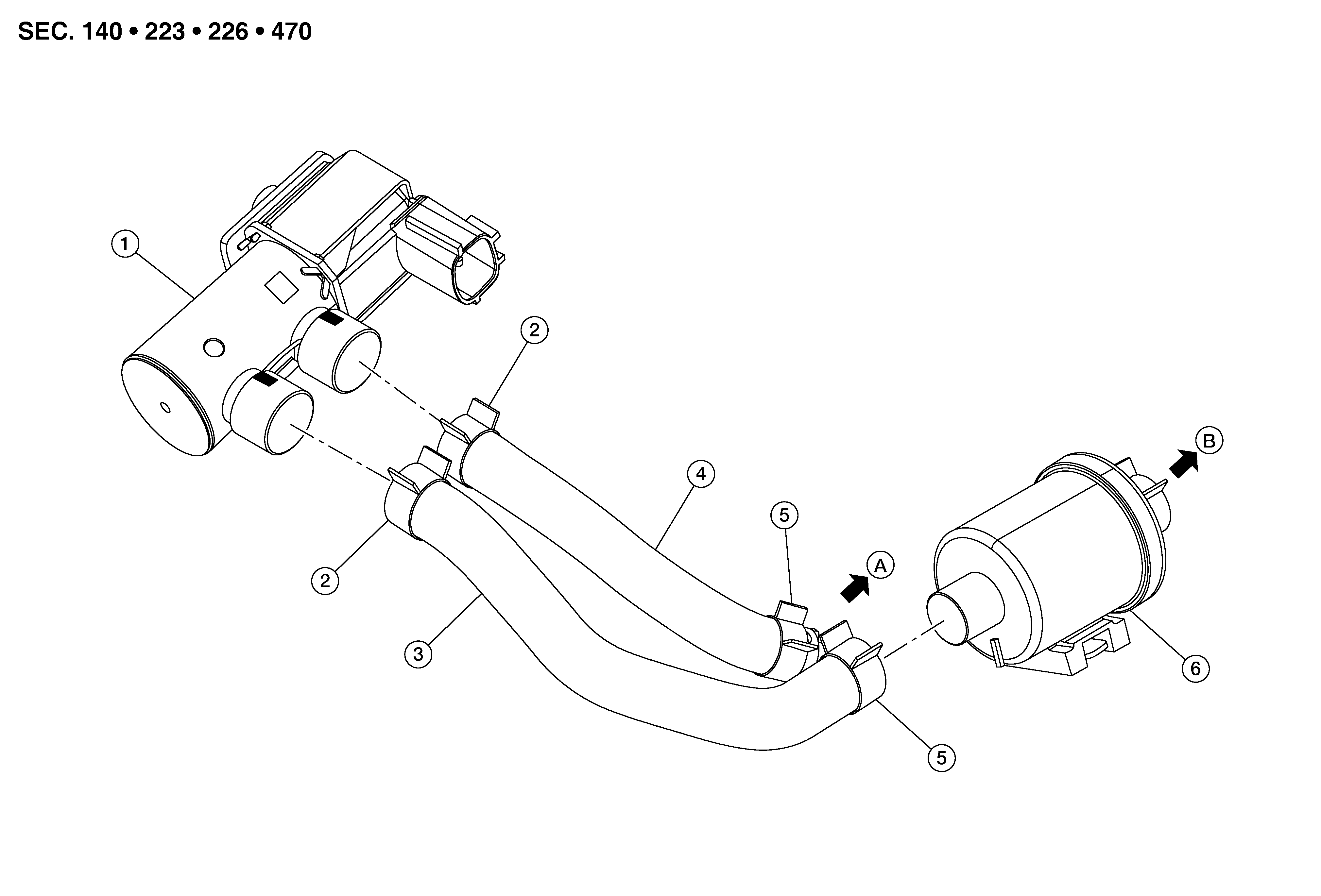

Exploded View

1.

EVAP canister purge volume control solenoid valve

2.

Clamp

3.

EVAP hose A

4.

EVAP hose B

5.

Clamp

6.

EVAP vacuum delay valve

A.

To intake manifold fitting. Refer to Exploded View .

B.

To EVAP canister. Refer to Exploded View .
