Removal and Installation: Removal

  1. Remove hood ledge cover (RH) and cowl top cover (RH). Refer to Exploded View .
  2. Remove the battery and battery tray. Refer to Exploded View .

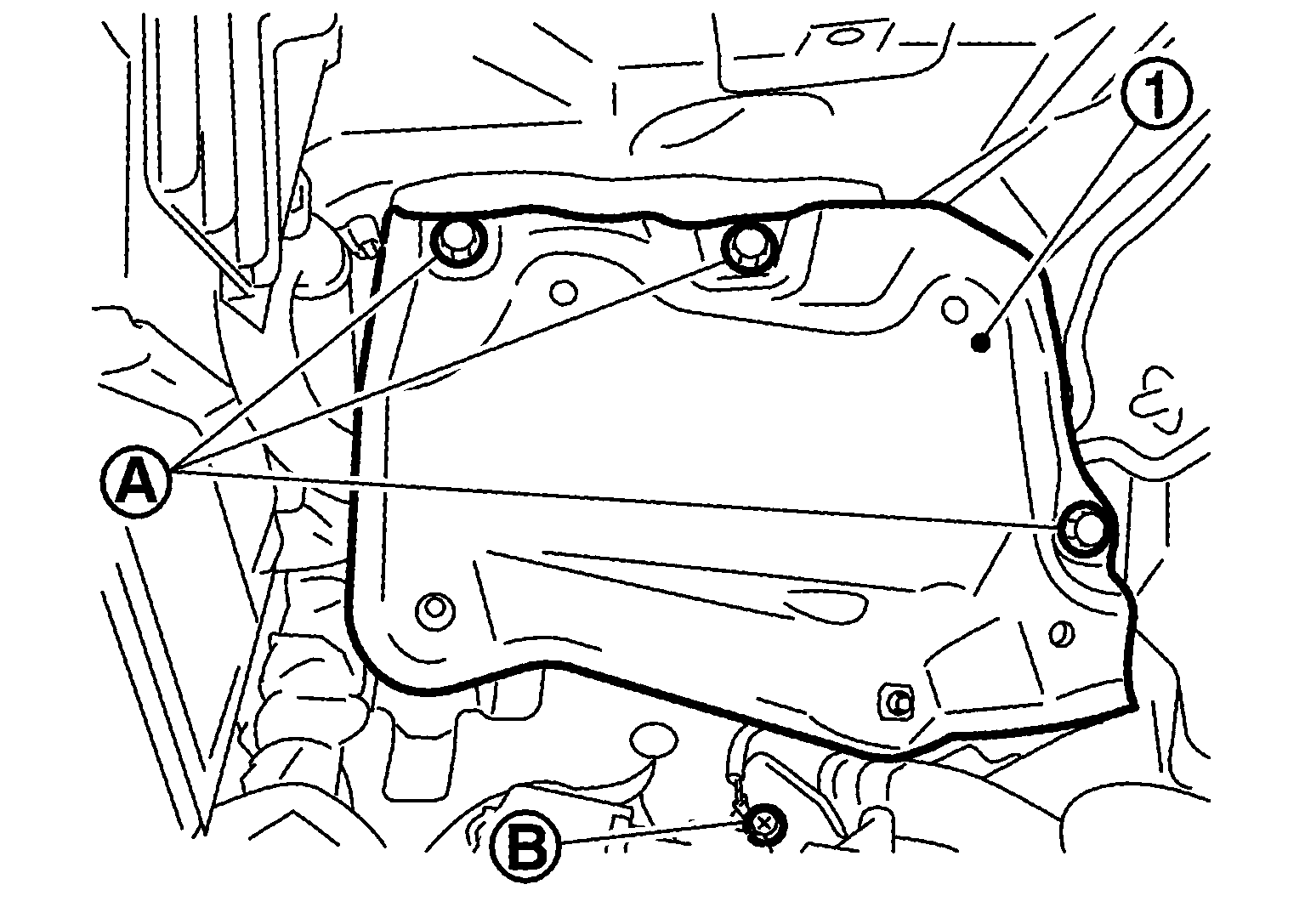

  3. Remove VVEL control module bracket bolts (A).
    GNSJSBIA0480Z-480Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the ground harness fix bolt (B).
  5. Remove VVEL control module bracket (1).
  6. Disconnect VVEL control module harness connector.

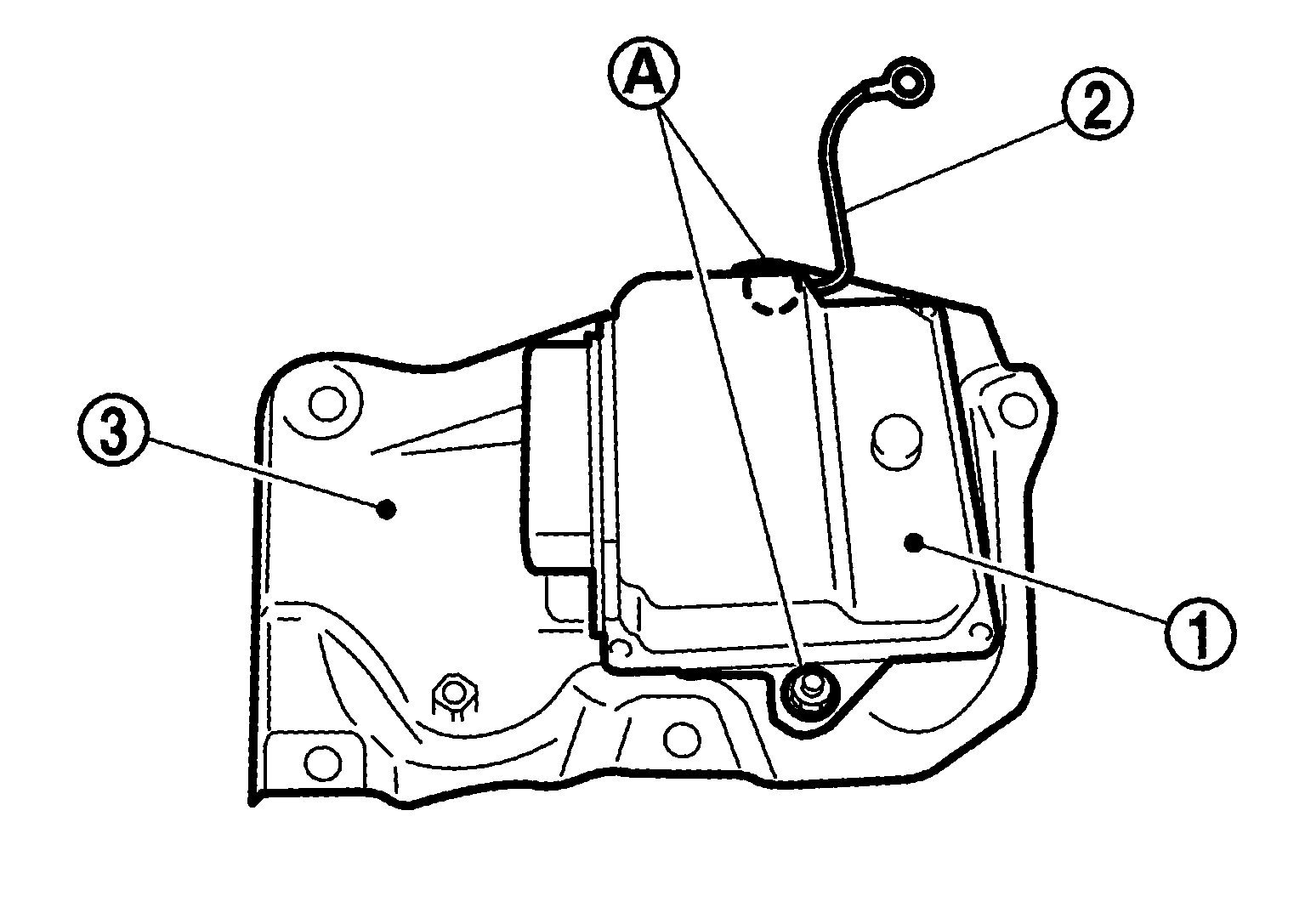

  7. Remove the fix bolts (A). And then separate VVEL control module (1), ground harness (2) and VVEL control module bracket (3).
    GNSJSBIA0481Z-481Courtesy of NISSAN NORTH AMERICA, INC.
