Check Ignition Timing

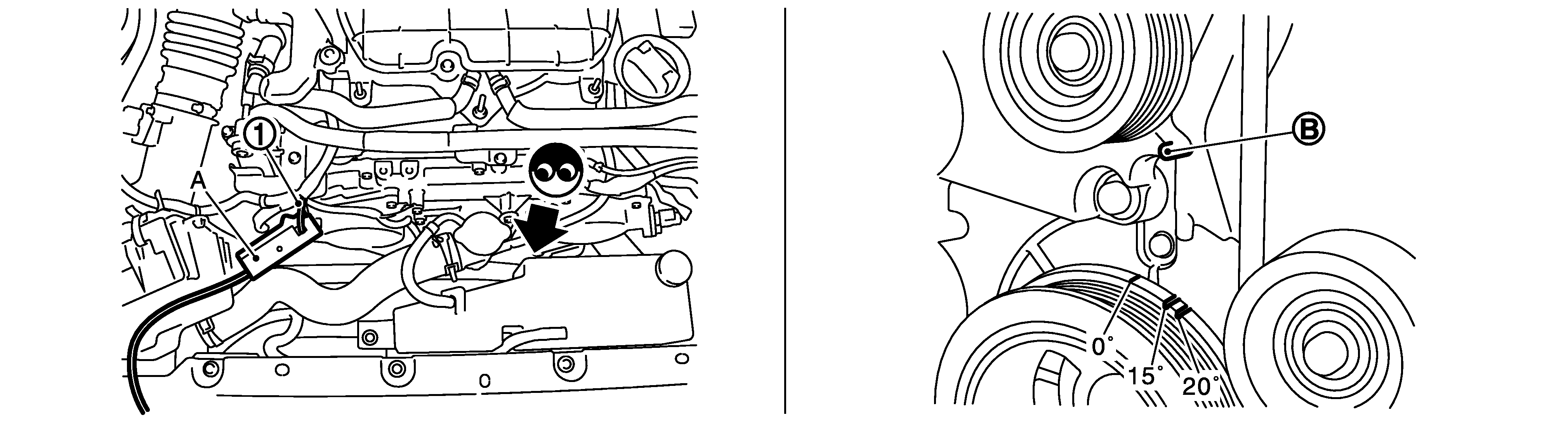

  1. Attach timing light to loop wire as shown.
    GNSJMBIA0846Z-846Courtesy of NISSAN NORTH AMERICA, INC.

    1.

    Loop wire

    A.

    Timing light

    B.

    Timing indicator
  2. Check ignition timing.
