Removal And Installation: Installation

WARNING: This page is about a different variant/trim than selected.

Note the following, and install in the reverse order of removal.

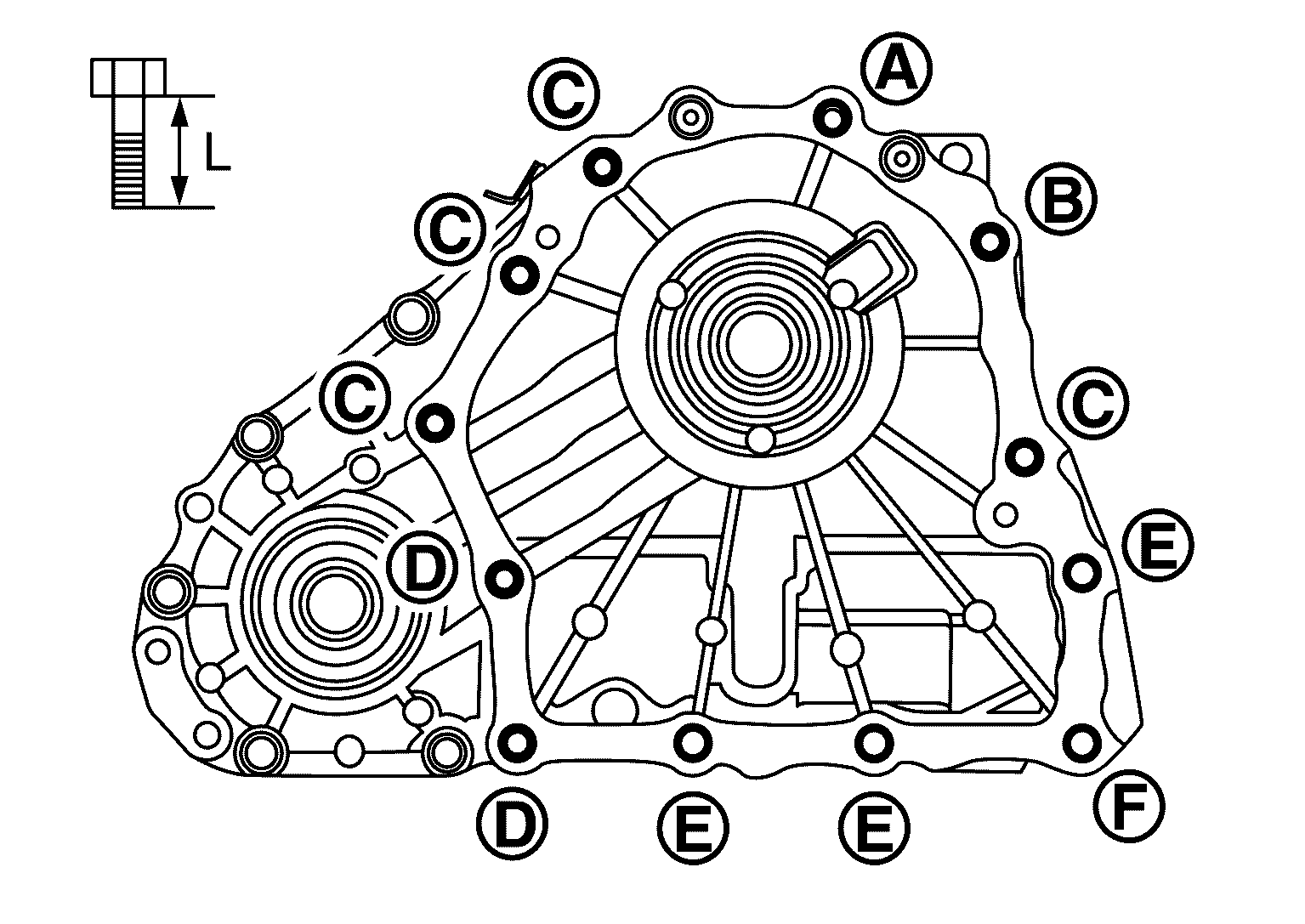

When installing the transfer to the transmission, install the mounting bolts following the standard below, tighten bolts to the specified torque. For each tightening torque, refer to EXPLODED VIEW WITH TORQUE SPECIFICATIONS .

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt symbol
Quantity	1	1	4	2	3	1
Bolt length " L "mm (in)	75 (2.95)	45 (1.77)	40 (1.57)	30 (1.18)	75 (2.95)	40 (1.57)
Insertion direction	Transmission to transfer				Transfer to transmission

Perform inspection after installation. Refer to INSPECTION .
