Exploded View

WARNING: This page is about a different variant/trim than selected.

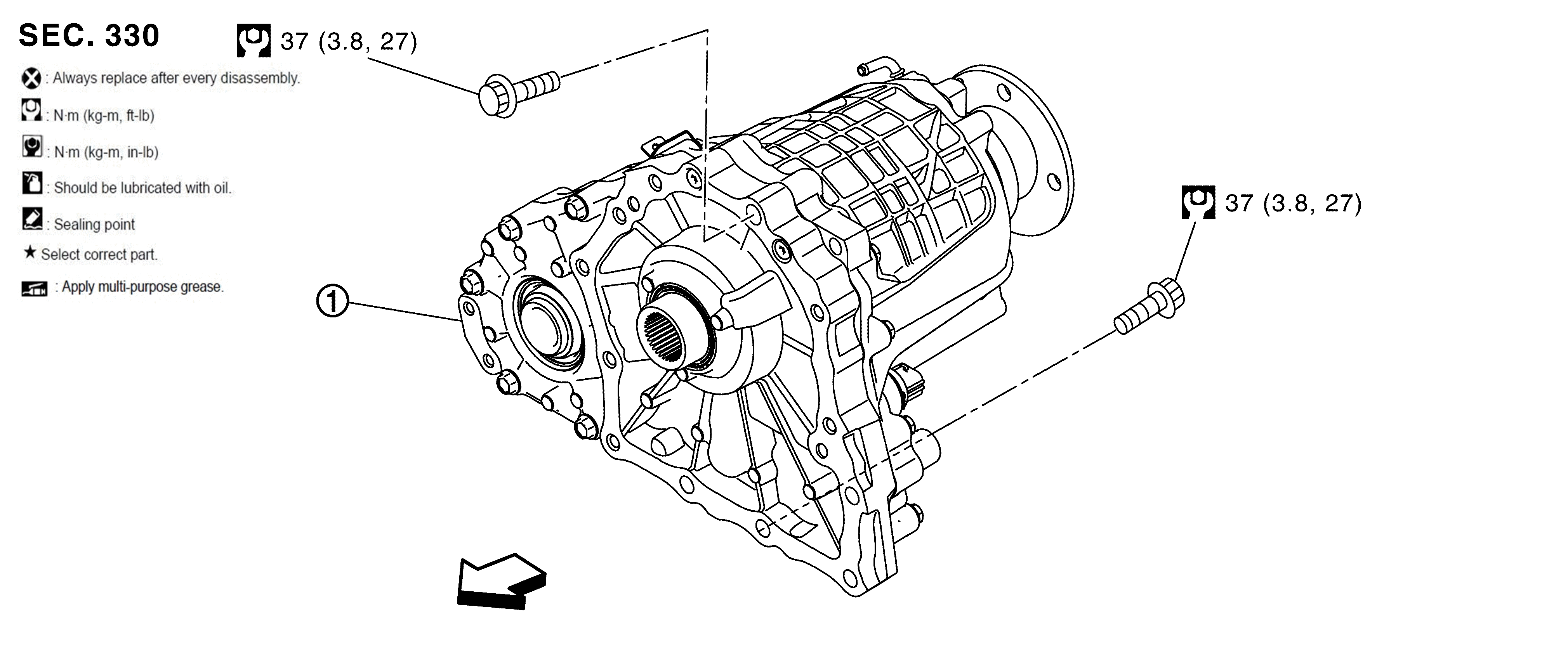

Fig 1: Transfer Assembly With Torque Specifications
GNSJSDIA4515GB-515Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transfer assembly
ARROW : Vehicle front
BOLT : N•m (kg - m, ft - lb)
