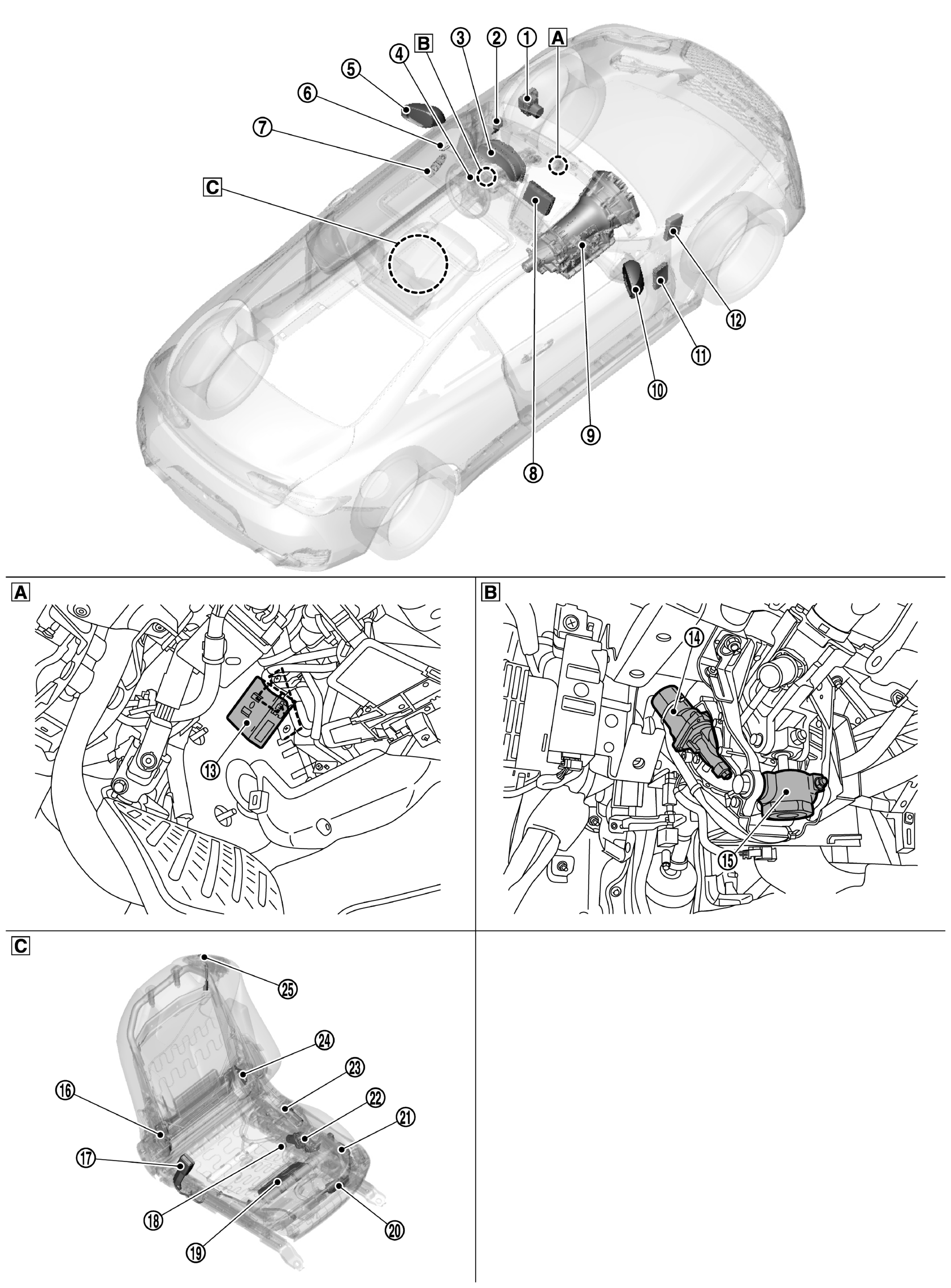

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

View with instrument lower panel LH removed

View with steering column lower cover and instrument lower panel LH removed

Driver Seat

Component		Function
ABS Actuator And Electric Unit (Control Unit)		Transmit the vehicle speed signal to Driver Seat Control Unit via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
Chassis Control Module		Transmit the key link signal and log - in permit signal to Driver Seat Control Unit via CAN Communication. Refer to COMPONENT LOCATION .
Combination Meter		Transmit the vehicle speed signal to Driver Seat Control Unit via CAN Communication.
Tilt & Telescopic Switch		Refer to TILT & TELESCOPIC SWITCH .
Door Mirror (Driver Side)	Door Mirror Motor	It makes mirror face operate from side to side and up and down with the electric power that Automatic Drive Positioner Control Unit supplies.
Door Mirror (Driver Side)	Mirror Sensor	Mirror Sensor is installed to door mirror. The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated. Automatic Drive Positioner Control Unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals.
Seat Memory Switch		Refer to SEAT MEMORY SWITCH .
Power Window Main Switch (Door Mirror Remote Control Switch)	Mirror Switch	Mirror Switch is integrated in Door Mirror Remote Control Switch. It operates angle of door mirror face. It transmits mirror face adjust operation to Automatic Drive Positioner Control Unit.
	Changeover Switch	Changeover Switch is integrated in Door Mirror Remote Control Switch. Changeover Switch has three positions (L, N and R). It changes operating Door Mirror Motor by transmitting control signal to Automatic Drive Positioner Control Unit.
Display Control Unit		Transmit the user information signal to Driver Seat Control Unit via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
Transmission Assembly	TCM	Transmit the shift position signal to Driver Seat Control Unit via CAN Communication. Refer to COMPONENT LOCATION .
Door Mirror (Passenger Side)	Door Mirror Motor	It makes mirror face operate from side to side and up and down with the electric power that Automatic Drive Positioner Control Unit supplies.
Door Mirror (Passenger Side)	Mirror Sensor	Mirror Sensor is installed to door mirror. The resistance of 2 sensors (horizontal and vertical) is changed when door mirror is operated. Automatic Drive Positioner Control Unit calculates door mirror position according to the change of the voltage of 2 sensor input terminals.
BCM		Recognizes the following status and transmits it to Driver Seat Control Unit via CAN Communication. Handle position: LHD Driver door: OPEN/CLOSE Ignition Switch position: ACC/ON Door lock: UNLOCK (with Intelligent Key or driver side door request Switch operation) Key ID Starter: CRANKING/OTHER Refer to COMPONENT LOCATION for detailed installation location.
IPDM E/R		Transmit the detention Switch signal to Driver Seat Control Unit via CAN Communication. Refer to COMPONENT LOCATION for detailed installation location.
Automatic Drive Positioner Control Unit		Refer to AUTOMATIC DRIVE POSITIONER CONTROL UNIT .
Tilt & Telescopic Motor	Telescopic Motor	Refer to TILT & TELESCOPIC MOTOR .
	Telescopic Sensor
	Tilt Motor
	Tilt Sensor
Reclining Motor	Reclining Motor	Reclining Motor is installed to seatback frame. Reclining Motor is activated with Driver Seat Control Unit. Seatback is reclined forward/backward by changing the rotation direction of reclining Motor.
Reclining Motor	Reclining sensor	Reclining sensor is integrated in reclining Motor. The pulse signal is input to Driver Seat Control Unit when the reclining is operated. Driver Seat Control Unit counts the pulse and calculates the reclining amount of the seat.
Seat Belt Buckle Switch		Seat Belt Buckle Switch is installed in seat belt buckle. Seat Belt Buckle Switch detects condition of seat belt.
Sliding Limit Switch		Sliding Limit Switch detects if the seat is in the front end position.
Driver Seat Control Unit		Refer to DRIVER SEAT CONTROL UNIT .
Sliding Motor	Sliding Motor	Sliding Motor is installed to the seat cushion frame. Sliding Motor is activated with Driver Seat Control Unit. Slides the seat forward/backward by changing the rotation direction of sliding Motor.
Sliding Motor	Sliding Sensor	Sliding Sensor is integrated in sliding Motor. The pulse signal is input to Driver Seat Control Unit when sliding is performed. Driver Seat Control Unit counts the pulse and calculates the sliding amount of the seat.
Power Seat Switch	Sliding Switch	Sliding Switch is equipped to Power Seat Switch on seat cushion side surface. The operation signal is input to Driver Seat Control Unit when Sliding Switch is operated.
	Reclining Switch	Reclining Switch is equipped to Power Seat Switch on seat cushion side surface. The operation signal is input to Driver Seat Control Unit when Reclining Switch is operated.
	Lifting Switch (Front)	Lifting Switch (Front) is equipped to Power Seat Switch on seat cushion side surface. The operation signal is input to Driver Seat Control Unit when Lifting Switch (Front) is operated.
	Lifting Switch (Rear)	Lifting Switch (Rear) is equipped to Power Seat Switch on seat cushion side surface. The operation signal is input to Driver Seat Control Unit when Lifting Switch (Rear) is operated.
Lifting Motor (Front)	Lifting Motor (Front)	Lifting Motor (Front) is installed to seat frame assembly (driver side). Lifting Motor is activated with Driver Seat Control Unit. Lifting Motor (Front) is moved upward/downward by changing the rotation direction of Lifting Motor (Front).
Lifting Motor (Front)	Lifting Sensor (Front)	Lifting Sensor (Front) is installed in Lifting Motor (Front). When Lifting Motor (Front) operates, pulse signal is transmitted to Driver Seat Control Unit from Lifting Sensor. Driver Seat Control Unit counts the pulse and calculates the lift position (Front) of the seat.
Lifting Motor (Rear)	Lifting Motor (Rear)	Lifting Motor (Rear) is installed to seat frame assembly (driver side). Lifting Motor (Rear) is activated with Driver Seat Control Unit. Lifting Motor (Rear) is moved upward/downward by changing the rotation direction of Lifting Motor (Rear).
Lifting Motor (Rear)	Lifting Sensor (Rear)	Lifting Sensor (Rear) is installed to seat side cushion frame. The pulse signal is input to Driver Seat Control Unit when lifting (Rear) is operated. Driver Seat Control Unit counts the pulse and calculates the lifting (Rear) amount of the seat.
Forward Switch		Forward Switch detects the folded up/folded down condition of seatback.
Power Walk-In Switch		When Power Walk-In Switch is pressed, Power Walk-In Switch transmits Power Walk-In Switch operation signal to Driver Seat Control Unit.
