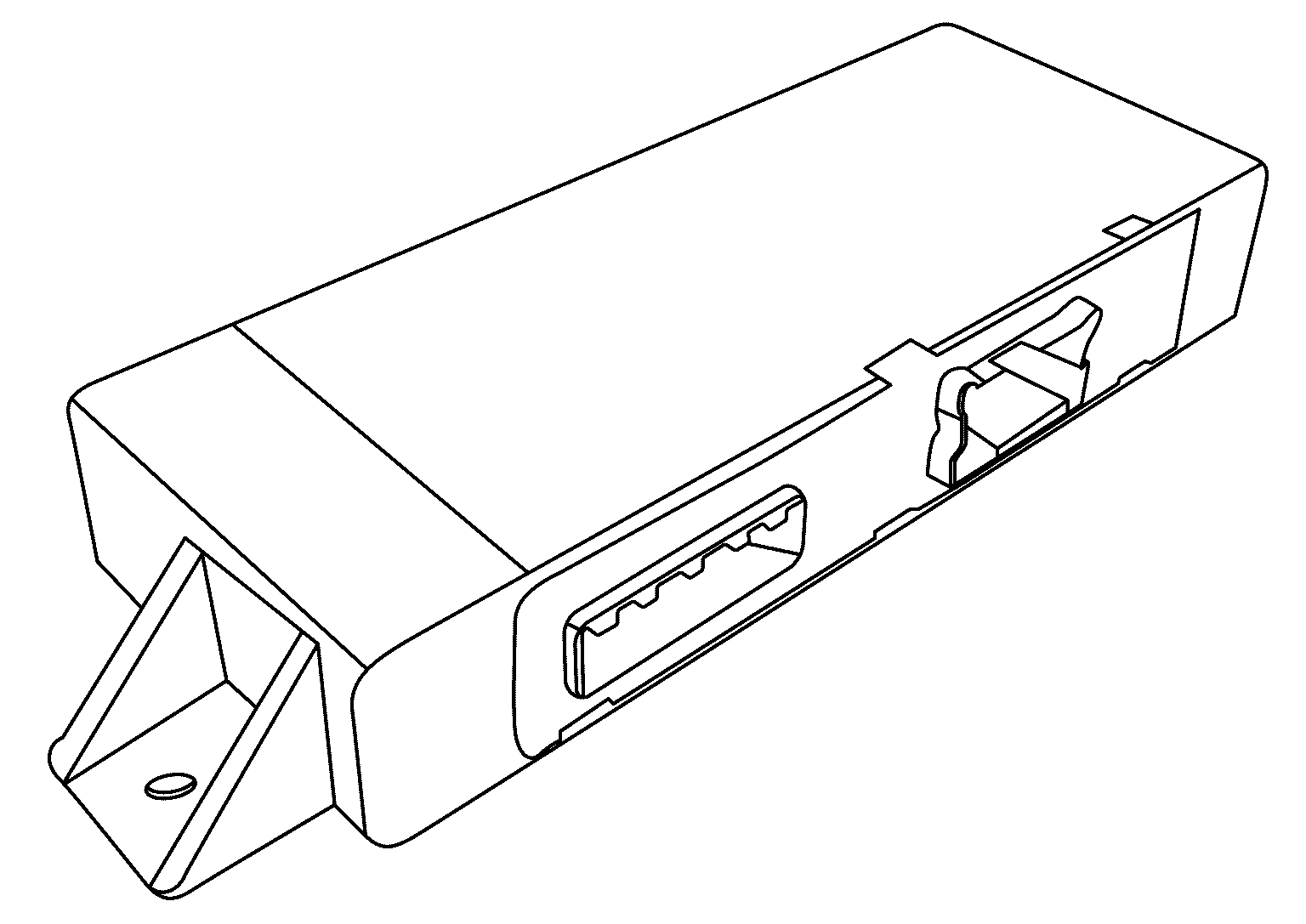

Driver Seat Control Unit

Main units of Automatic Drive Positioner system.

Courtesy of NISSAN NORTH AMERICA, INC.
It is connected to the CAN Communication system.
It communicates with Automatic Drive Positioner Control Unit via UART communication.
The address of each part is recorded.
Operates each Motor of seat to the registered position.
Requests the operation of steering column and door mirror to Automatic Drive Positioner Control Unit.
Perform the control of Seat Memory Switch.
Operates the specific seat Motor with the signal from Power Seat Switch.
