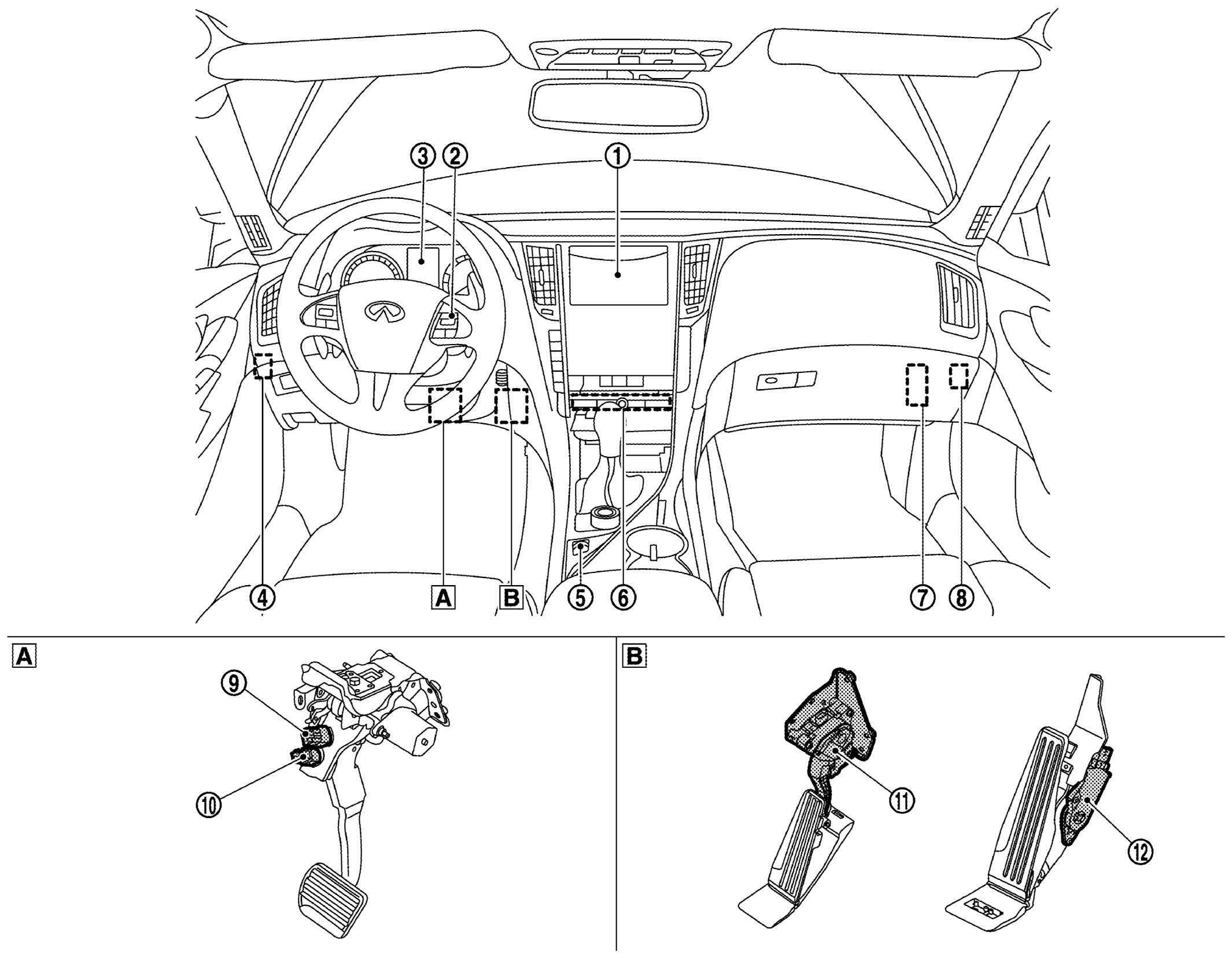

Interior Compartment

WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

Accelerator pedal area

Brake pedal area

No.	Component	Function
	Display control unit	Displays a vehicle status on the display screen, according to signals received from HPCM. For details of installation position, refer to COMPONENT LOCATION .
	ASCD steering switch	ASCD STEERING SWITCH
	ICC steering switch	ICC STEERING SWITCH
	Combination meter	Performs the ON/OFF control of the indicator lamp, warning lamp, and the information display, according to signals received from HPCM via CAN communication.
	Chassis control module	Chassis control module transmits drive mode signal to TCM via CAN communication.
	Drive mode select switch	DRIVE MODE SELECT SWITCH For details of installation position, refer to COMPONENT LOCATION .
	A/C auto amp.	Controls the air-conditioning system (e.g. electric compressor, blower fan motor), according to a command from HPCM. For details of installation position, refer to COMPONENT LOCATION .
	Steering force control module	STEERING FORCE CONTROL MODULE For details of installation position, refer to COMPONENT LOCATION .
	BCM	Sends an ignition switch status (start) to HPCM. Sends a vehicle state (e.g. door open/close status) via CAN communication. For details of installation position, refer to COMPONENT LOCATION .
	Stop lamp switch	STOP LAMP SWITCH
	Brake pedal position switch	BRAKE PEDAL POSITION SWITCH
	Accelerator pedal position switch	ACCELERATOR PEDAL POSITION SENSOR
	Accelerator pedal position switch^*	-

* : Not applicable
