ASCD Steering Switch
WARNING: This page is about a different car, the 2016 Infiniti Q50. However, it is still accessible from the selected car via links, so may be relevant.

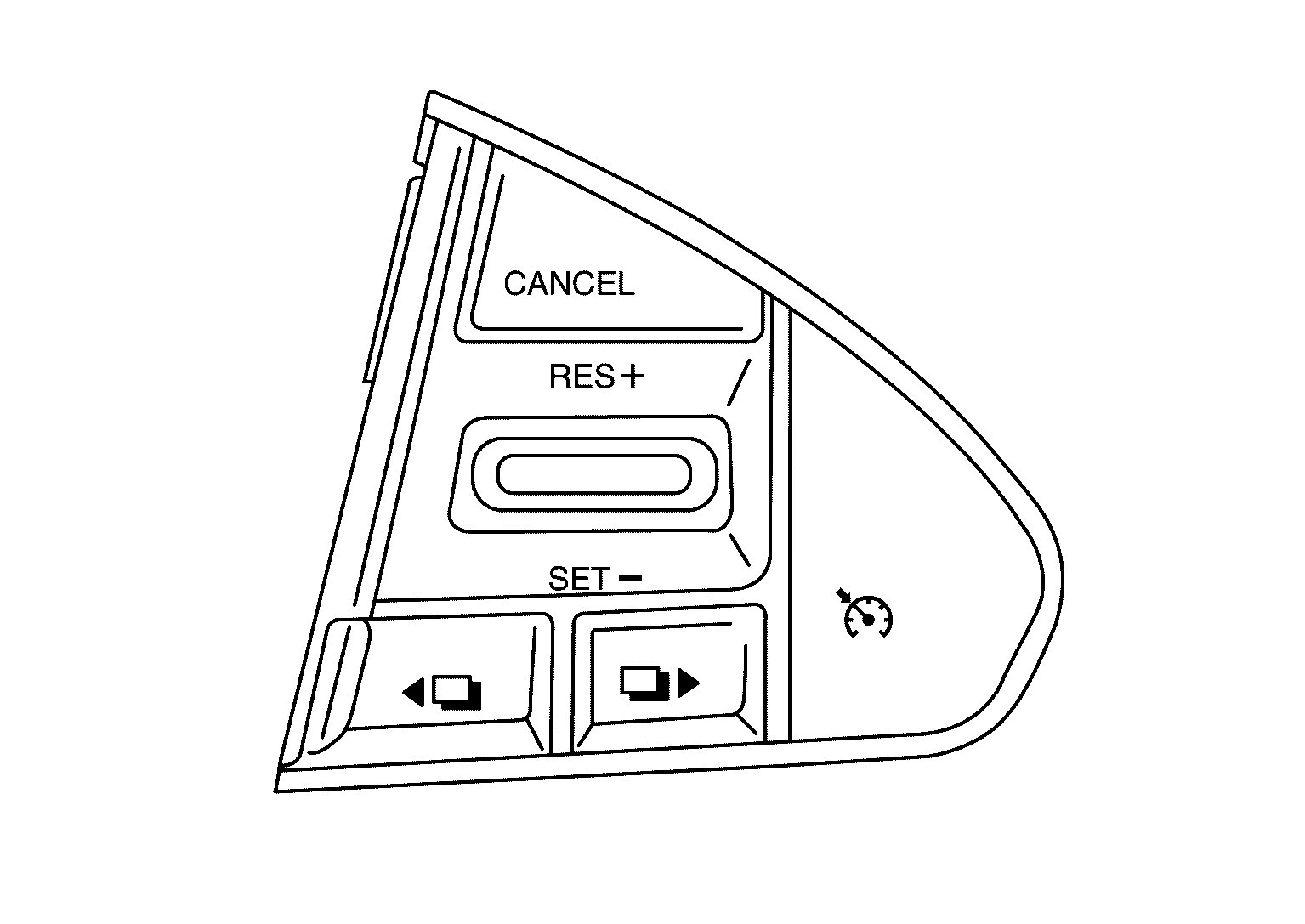

ASCD steering switch has various values of electrical resistance for each button. HPCM reads voltage variation of switch, and determines which button is operated.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
